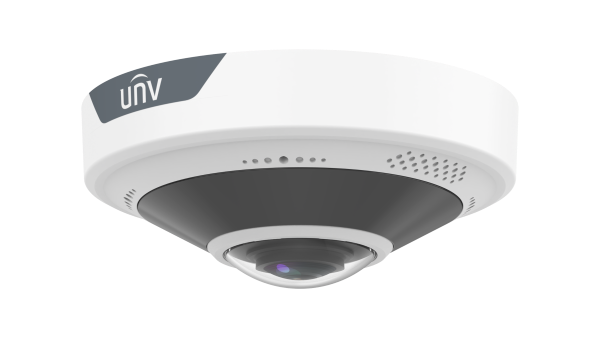

UNV - IPC876SE-ADF16KMC-I1 - 6MP Infrared Intelligent Fixed-focal Fisheye Dome Network Camera
Product Overview
The Uniview IPC816SB-ADF16KMC-I1 is a 6MP intelligent fixed-focal fisheye dome network camera with a 1/2.5-inch CMOS sensor and 2.0mm lens providing a 180° panoramic field of view. It supports multiple dewarped viewing modes, smart intrusion prevention, heatmap analysis, people-flow counting, and crowd-density monitoring.
The camera includes 15m infrared illumination, built-in microphone and speaker, two-way audio, microSD storage, IP67 protection, and IK10 vandal resistance.
Key Configuration
Model: IPC816SB-ADF16KMC-I1 | Resolution: 6MP, up to 2560 × 2560 at 30fps | Lens: Fixed 2.0mm, 180° panoramic view | Connectivity: RJ45 10/100M Ethernet, IEEE 802.3af PoE or DC12V | Protection: IP67, IK10
Key Features
- · 6MP resolution with 1/2.5-inch CMOS sensor
- · Fixed 2.0mm fisheye lens with 180° panoramic field of view
- · Embedded 850nm infrared illumination up to 15m
- · Multiple hardware and software dewarping modes for fisheye, panorama, and virtual PTZ views
- · Smart intrusion prevention with human, vehicle, and non-motor vehicle classification
- · Heatmap analysis, people-flow counting, and crowd-density monitoring
- · Ultra 265, H.265, H.264, and MJPEG compression with octuple streams
- · Built-in microphone and speaker with two-way audio support
- · MicroSD storage up to 512GB, ANR, NAS support, and ONVIF Profile S, G, T, and M
- · IP67 weather protection and IK10 vandal resistance
Technical Context
The fisheye lens captures a panoramic scene that can be displayed as a full circular view, panorama, or several digitally dewarped virtual PTZ views. This allows one camera to provide broad-area coverage while preserving interactive views of selected zones.
Installation Notes
Power the camera using DC 12V ±25% or IEEE 802.3af PoE through the 10/100M RJ45 interface. Ceiling, table, and wall mounting modes are supported by the corresponding dewarping profiles. The camera measures Ø126 × 52mm, weighs 0.44kg, and operates from -30°C to 60°C with up to 95% non-condensing humidity.
| Product Information | |
| Model | IPC816SB-ADF16KMC-I1 |
| Product Type | 6MP Infrared Intelligent Fixed-Focal Fisheye Dome Network Camera |
| Image Sensor | 1/2.5" CMOS |
| Camera and Lens | |
| Maximum Resolution | 6MP, up to 2560×2560 |
| Lens | 2.0mm fixed fisheye lens, F2.0 |
| Field of View | Horizontal: 180° Vertical: 180° Diagonal: 180° |
| Minimum Illumination | Color: 0.005 Lux, F2.0, AGC ON 0 Lux with IR enabled |
| Day/Night | IR-cut filter with automatic switch, ICR |
| Shutter | Auto/manual, 1/1 to 1/100000 s |
| WDR | 120dB |
| Signal-to-Noise Ratio | >52dB |
| DORI Distance | |
| Detect | 36.0m (118.1ft) |
| Observe | 14.4m (47.2ft) |
| Recognize | 7.2m (23.6ft) |
| Identify | 3.6m (11.8ft) |
| IR Illumination | |
| Supplemental Light | Infrared |
| IR Distance | Up to 15m (49.2ft) |
| IR Wavelength | 850nm |
| IR Control | Automatic/manual |
| Illumination Coverage | 360° fill-in illumination |
| Video and Viewing Modes | |
| Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | Fisheye and panorama views up to 6MP 2560×2560 at 30fps Additional resolutions: 2048×2048 and 1440×1440 up to 30fps |
| Sub Stream | Fisheye view 1024×1024 up to 30fps |
| Third Stream | Fisheye view D1 and CIF up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| Video Streams | Octuple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Viewing Modes | Fisheye, panorama, fisheye + PTZ, horizontal panorama and vertical panorama views |
| Decoding Modes | Hardware and software decoding supported |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross-line and intrusion detection with human, vehicle and non-motor vehicle classification |
| People Analysis | People-flow counting and crowd-density detection |
| Heat Map | Real-time moving-object statistics displayed through a management platform |
| Basic Detection | Motion detection, ultra motion detection, tampering alarm and audio detection |
| Image Functions | 2D/3D DNR, Smart IR, BLC, digital defog, flip and dewarping |
| Audio and Storage | |
| Audio | Built-in dual microphone and speaker |
| Two-Way Audio | Supported |
| Audio I/O | 1 audio input and 1 audio output |
| Audio Compression | G.711U, G.711A and AAC-LC |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | ANR and NAS via NFS |
| Network and Interfaces | |
| Network Interface | 1× RJ45 10/100 Base-TX Ethernet port |
| Alarm I/O | 1 alarm input and 1 alarm output |
| Serial Interface | Not available |
| Video Output | Not available |
| Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, RTP, RTCP, RTMP, DNS, DDNS, NTP, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, QoS, SSL/TLS and 802.1x |
| Integration | ONVIF Profile S, Profile G, Profile T and Profile M; API and SDK |
| Users | Up to 32 users with administrator, operator and common-user levels |
| Client Software | EZStation and APP |
| Power and Mechanical | |
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Maximum 8.4W |
| Power Connector | Ø5.5mm coaxial power plug |
| Dimensions | Ø126 × 52mm (Ø5.0 × 2.1in) |
| Weight | 0.44kg (0.97lb) |
| Material | Metal and plastic |
| Reset Button | Supported |
| Environmental Protection | |
| Protection Rating | IP67 and IK10 |
| Operating Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Storage Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Surge Protection | 4kV |
| Certifications and Accessories | |
| Certifications | CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS and WEEE |
| Compatible Accessories | TR-JB03-H-IN-V2, TR-A01-IN, TR-SE24-IN, TR-SE24-A-IN and TR-CM24-IN |
