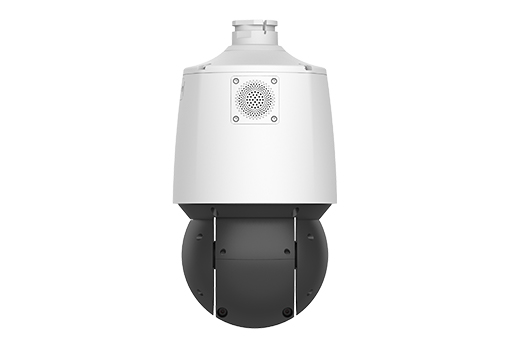

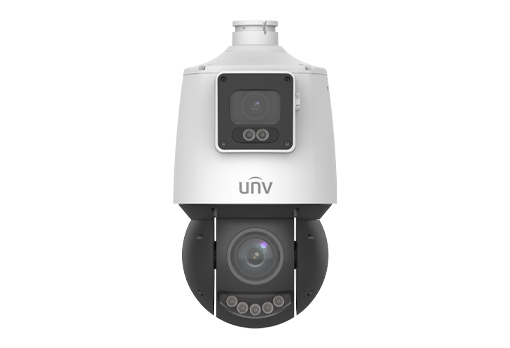

Uniview - IPC94144SFW-X25-F40C - 4MP+4MP 25X ColorHunter MultiView Dual-light Network PTZ Camera
Part number:
IPC94144SFW-X25-F40C
Price:
4MP+4MP 25X ColorHunter MultiView Dual-light Network PTZ Camera
Features:
- Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
- Ultra 265, H.265, H.264, MJPEG
- 25X optical zoom of PTZ channel allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
- Support light warning, makes warning and alarming more noticeable
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- IR & warm light illumination to deal with different scenes and achieve full-color illumination
- DC12V or PoE+(IEEE 802.3at) power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
| Channel | ||
| Camera | ||
| Sensor | 1/1.8" CMOS | 1/2.7" CMOS |
| Min. Illumination | Color: 0.0005 lux (F1.0, AGC ON) | Color: 0.003 lux (F1.5, AGC ON) |
| 0 lux with IR | 0 lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB | 120 dB |
| S/N | >56 dB | >56 dB |
| Lens | ||
| Focal Length | 4.0 mm | 4.8 to 120 mm |
| Optical Zoom | N/A | 25X |
| Iris | F1.0 | F1.5 to F3.8 |
| Field of View (H) | 94.9° | 55.46° ~ 3.09° |
| Field of View (V) | 51.5° | 32.94° ~ 1.73° |
| Field of View (D) | 112.3° | 68.22° ~ 3.65° |
| DORI | ||
| DORI Distance (Detect) | 90.0m (295.3ft) | 123.8m ~ 2475.0m (406.0ft ~ 8120.1ft) |
| DORI Distance (Observe) | 36.0m (118.1ft) | 49.5m ~ 990.0m (162.4ft ~ 3248.0ft) |
| DORI Distance (Recognize) | 18.0m (59.1ft) | 24.8m ~ 495.0m (81.2ft ~ 1624.0ft) |
| DORI Distance (Identify) | 9.0m (29.5ft) | 12.4m ~ 247.5m (40.6ft ~ 812.0ft) |
| Illuminator | ||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | N/A |
| Illumination Distance (IR) | N/A | 100 m (328.1 ft) |
| Wavelength | N/A | 850 nm |
| Supplemental Light | Warm light | Warm light |
| Light On/Off Control | Auto/Manual | Auto/Manual |
| PTZ | ||
| Pan Range | N/A | 360° |
| Pan Speed | N/A | 0.1°/s ~ 80°/s |
| Tilt Speed | N/A | 0.1°/s ~ 80°/s |
| Tilt Range | 18° ± 5° | –15° ~ 90° |
| Number of Presets (IPC) | N/A | 1024 |
| Number of Presets | N/A | 1024 |
| Preset Patrol | N/A | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | N/A | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | N/A | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s | 15 s to 1800 s |
| Preset Image Freeze | N/A | N/A |
| Home Position | N/A | Support |
| Video | ||
| Frame Rate | Main Stream: 4MP (2688×1520), Max 30fps; Sub Stream: 720P (1280×720), Max 30fps; Third Stream: D1 (720×576), Max 30fps; | Main Stream: 4MP (2688×1520), Max 30fps; Sub Stream: 1080P (1920×1080), Max 30fps; Third Stream: D1 (720×576), Max 30fps; |
| Privacy Mask | Up to 4 areas | 24 areas, up to 4 areas per scene |
| Frame Rate-Main Stream | 4MP (2688 × 1520) @ 25 fps (Default) 4MP (2688 × 1520), Max 30fps; 4MP (2560 × 1440), Max 30fps; 2MP (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; | 4MP (2688 × 1520) @ 25 fps (Default) 4MP (2688 × 1520), Max 30fps; 4MP (2560 × 1440), Max 30fps; 2MP (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; |
| Frame Rate-Sub Stream | 720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; | 2MP (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; |
| Frame Rate-Third Stream | D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288) , Max 30fps; CIF (352 × 288) , Max 30fps; | D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288) , Max 30fps; CIF (352 × 288) , Max 30fps; |
| Frame Rate Recommendation | 2688 × 1520@30fps+720P@30fps+D1@16fps 2688 × 1520@30fps+720P@25fps+D1@30fps 2688 × 1520@25fps+720P@25fps+D1@25fps 2560 × 1440@30fps+720P@30fps+D1@30fps 2560 × 1440@30fps+720P@25fps+D1@30fps 2560 × 1440@25fps+720P@25fps+D1@25fps 1080P@30fps+720P@30fps+D1@30fps 1080P@25fps+720P@25fps+D1@25fps | 2688 × 1520@30fps+1080P@30fps+D1@16fps 2688 × 1520@30fps+1080P@25fps+D1@30fps 2688 × 1520@25fps+1080P@25fps+D1@25fps 2560 × 1440@30fps+1080P@30fps+D1@30fps 2560 × 1440@30fps+1080P@25fps+D1@30fps 2560 × 1440@25fps+1080P@25fps+D1@25fps 1080P@30fps+1080P@30fps+D1@30fps 1080P@25fps+1080P@25fps+D1@25fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps |
| U-code | Support | Support |
| ROI | Support | Support |
| Video Stream | Triple streams | Triple streams |
| OSD | Up to 8 OSDs | Up to 8 OSDs |
| Image | ||
| Defog | Digital defog | Digital defog |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR |
| Smart IR | Support | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support | Support |
| BLC | Support | Support |
| Heatwave Reduction | Support | Support |
| Intelligent | ||
| People Counting | Support people flow counting and crowd density monitoring | Support people flow counting and crowd density monitoring |
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target | N/A |
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Exception Detection | Object Left Behind, Object removed, Scene change | Object Left Behind, Object removed |
| Events | ||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
| Audio | ||
| Audio Compression | G.711U, G.711A | G.711U, G.711A |
| Audio Bitrate | 128 Kbps | 128 Kbps |
| Two-way Audio | Support | Support |
| Suppression | Support | Support |
| Sampling Rate | 16 kHz | 16 kHz |
| Storage | ||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB |
| Network Storage | ANR | ANR |
| Network | ||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface | ||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1-Feb | 1-Feb |
| Serial Port | 1 channel RS485 interface | 1 channel RS485 interface |
| Built-in Mic | N/A | N/A |
| Built-in Speaker | Support | Support |
| WIFI | N/A | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A | N/A |
| Certification | ||
| EMC | CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) | CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) |
| FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |
| Safety | CE LVD (EN 62368-1: 2014+A11: 2017) | CE LVD (EN 62368-1: 2014+A11: 2017) |
| UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01) | UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01) | |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) | CE-RoHS (2011/65/EU; (EU) 2015/863) |
| Protection | IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013) | IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013) |
| General | ||
| Power | DC12V (±25%), PoE+ (IEEE 802.3at) | DC12V (±25%), PoE+ (IEEE 802.3at) |
| Power Consumption | MAX 24W | MAX 24W |
| Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug |
| Dimensions | 304 x 195 x 163mm (12.0" x 7.7" x 6.4" ) (L x W x H) | 304 x 195 x 163mm (12.0" x 7.7" x 6.4" ) (L x W x H) |
| Weight | 2.27kg (5.00lb) | 2.27kg (5.00lb) |
| Working Environment | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV | 4 KV |
| Reset Button | Support | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
