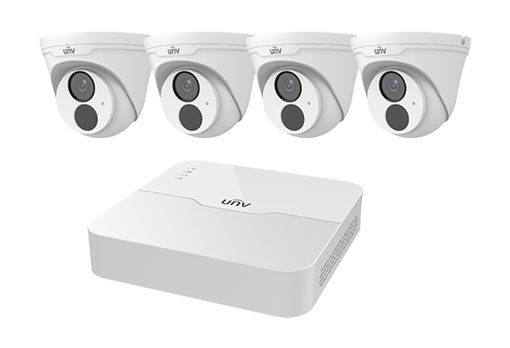

Uniview - KIT/301-08LB-P8/4*3612LR3-PF28-D - 1 Hard Disk 8-Channel PoE NVR Kit (Including 4 PCS 2MP Network Turret Camera)
Uniview - KIT/301-08LB-P8/4*3612LR3-PF28-D - 1 Hard Disk 8-Channel PoE NVR Kit (Including 4 PCS 2MP Network Turret Camera)
Part number:
KIT/301-08LB-P8/4*3612LR3-PF28-D
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

UNV 1 Hard Disk 8-Channel PoE NVR Kit (Including 4 PCS 2MP Network Turret Camera)



Features:



NVR301-08LB-P8

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Plug & Play with 8 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 2MP resolution recording
  • 1 SATA HDD, up to 6TB
  • Support cloud upgrade



IPC3612LR3-PF28-D

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • 3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265,H.264,MJPEG
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
ModelNVR301-08LB-P8
Video/Audio Input
IP Video Input8-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth40Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output





HDMI/VGA Output

HDMI:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Recording Resolution1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback8-ch
Corridor Mode Screen3/4/5/7/9
Decoding
Decoding formatUltra 265/H.265/H.264
Liveview/ Playback



1080p/960p/720p/D1/2CIF/CIF

Capability4 x 1080p@20, 4 x 720p@30
Hard Disk
SATA1 SATA interface
Capacityup to 6TB for each disk
External Interface
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel：2 x USB2.0
PoE
Interface8 independent 100 Mbps PoE network interfaces
Max PowerMax 30W for single port
Supported StandardIEEE 802.3at, IEEE 802.3af
General



Power Supply

48~52V DC

Power Consumption: ≤5.5 W( without HDD )

Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)270mm × 205mm × 47mm(10.6"×8.1"×1.9")
Weight ( without HDD )0.7kg ( 1.54lb )
ModelIPC3612LR3-PF28-D
Sensor1/2.7", 2megapixel, progressive scan, CMOS
Lens2.8mm@F2.0



DORI Distance

LensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm46.718.79.34.7
Angle of view(H)86.5°112.7°
Angle of View (V)44.1°60.1°
Angle of View (O)106.4°146.5°
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan:     0°~360°Tilt:      0°~90°Rotate: 0°~360°



Min. Illumination

Colour: 0.02 Lux (F2.0, AGC ON)

0 Lux with IR

IR RangeUp to 30m (98 ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
WDRSupported
Noise Reduction2D/3D
Video
Max. Resolution1920×1080
Video CompressionUltra 265,H.265,H.264,MJPEG



Frame Rate

Main Stream:1080P (1920*1080): Max. 25 fps; Sub Stream: 720P(1280*720): Max. 25 fps; Third Stream: CIF (352*288): Max. 25fps
OSDUp to 4 OSDs
Privacy MaskUp to 8 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
Network
ProtocolsIPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SNMP,SSL
Compatible IntegrationONVIF (Profile S, Profile T), API
Interface
Network10/100M Base-TX Ethernet
General



Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Ø x H)Φ118x 96 mm (Φ4.6” x 3.8”)
Weight0.2kg (0.44lb)
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress ProtectionIP67
