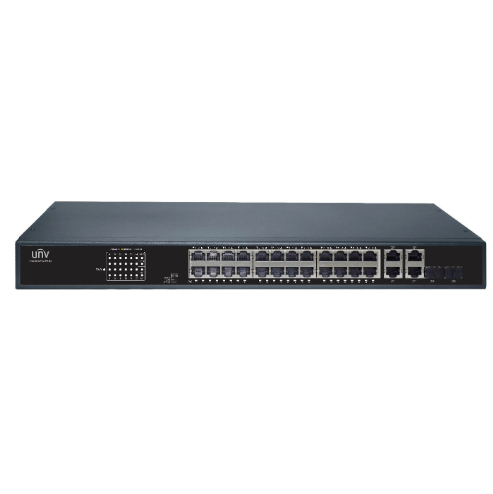

Uniview - NSW2010-26GT2GC-POE-IN - Giga 24 Port PoE Switch
Part number:
NSW2010-26GT2GC-POE-IN
Price:
UNV Giga 24 Port PoE Switch
Features:
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
- Supports PoE Power up to 30W for each PoE port.
- Auto detect power device. will not burned non-standard PoE device or normal PoE switch.
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes.
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control.
- Line-speed forwarding, intelligent identification
- Supports storage – and- forward for Data exchange.
| Model | NSW2010-5GT-POE-IN | NSW2010-10GT-POE-IN | NSW2010-18GT2GP- POE-IN | NSW2010-26GT2GC- POE-IN |
| Ports | 4×1000Mbps PoE ports (RJ45)+1×1000Mbps ports(RJ45) | 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) | 16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（SFP） | 24×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（Combo） |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,I EEE802.3at | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,I EEE802.3af,IEEE802.3at,IEEE802.3az | ||
| Switching capacity | 10Gbps | 20Gbps | 40Gbps | 56Gbps |
| Forwarding performance | 7.44Mpps | 13.4Mpps | 29.76Mpps | 41.7Mpps |
| Packet Buffer | 1M bit | 2Mbit | 4M bit | 4Mbit |
| MAC | 2K | 2K | 8K | 8K |
| Dimensions (W×D×H) | 140mm x 76.7mm x 27.7mm (5.5"×3"×1.1") | 220mm x 150mm x 44mm (8.7"×5.9"×1.7") | 280mm x 180mm x 44mm (11"×7.1"×1.7") | 440mm x 207mm x 44mm (17.3"×8.1"×1.7") |
| Weight | <1kg | <1.24kg | <4.2kg | <5kg |
| Input Voltage | AC: 100-240V, 50/60Hz | |||
| MAX. Power | 65W | 130W | 200W | 400W |
| PoE | 802.3at/af | |||
| Max. PoE Power | Max capacity: 60W Max capacity for single port: 30W | Max capacity: 120W Max capacity for single port: 30W | Max capacity: 185W Max capacity for single port: 30W | Max capacity: 370W Max capacity for single port: 30W |
| Cooling Fans | 0 | 1 | 1 | 2 |
| Operating Temperature | 0°C ~ 40 °C | |||
| Storage Temperature | -40 °C ~ 70 °C | |||
| Operating Humidity | 10% ~ 90% non-condensing | |||
| Storage Humidity | 5% ~ 90% non-condensing | |||
| Indicator | PWR(Green), LNK/ACT(Green), PoE(Orange) | |||
| Working Mode | No | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. | ||
