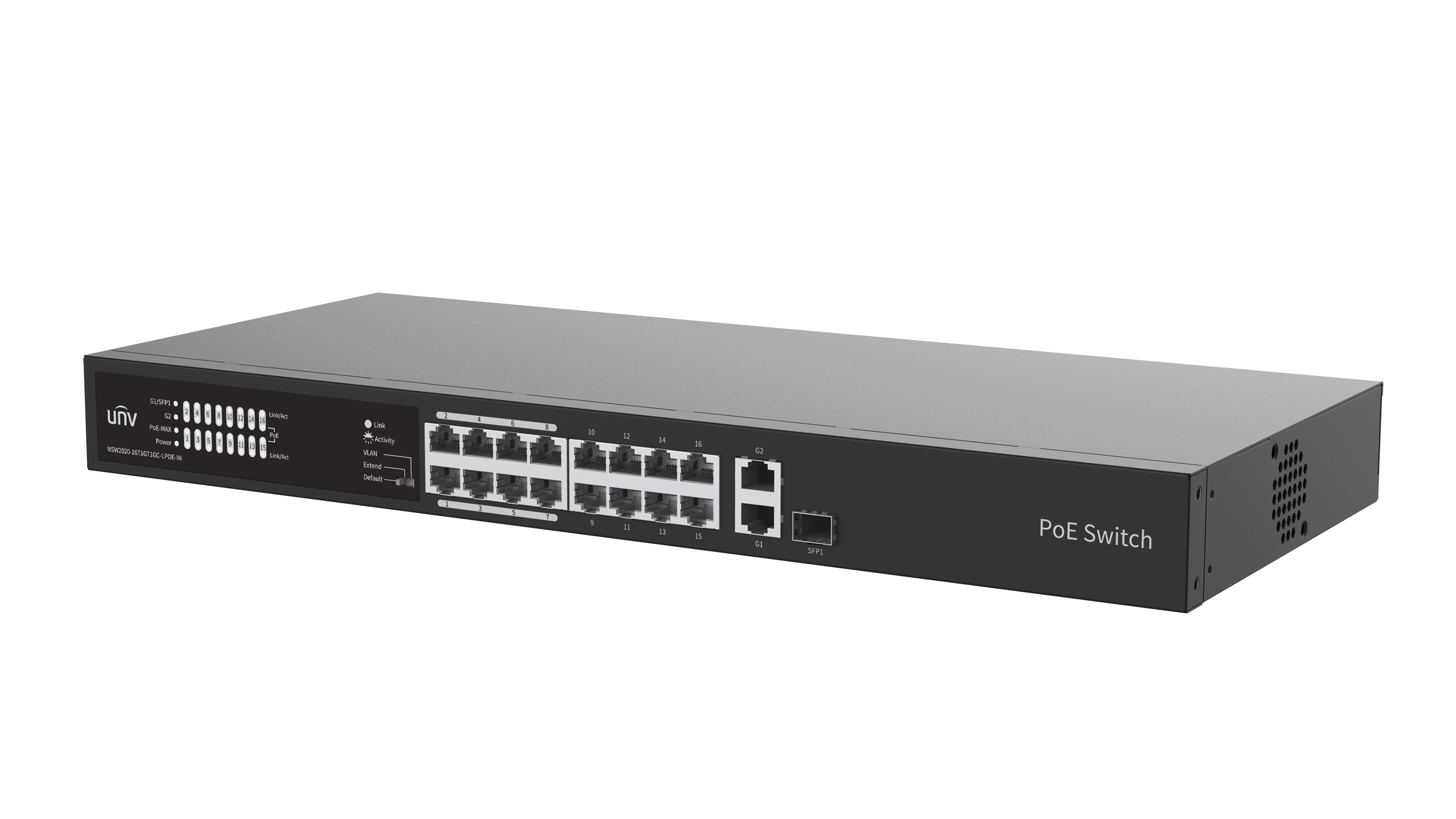

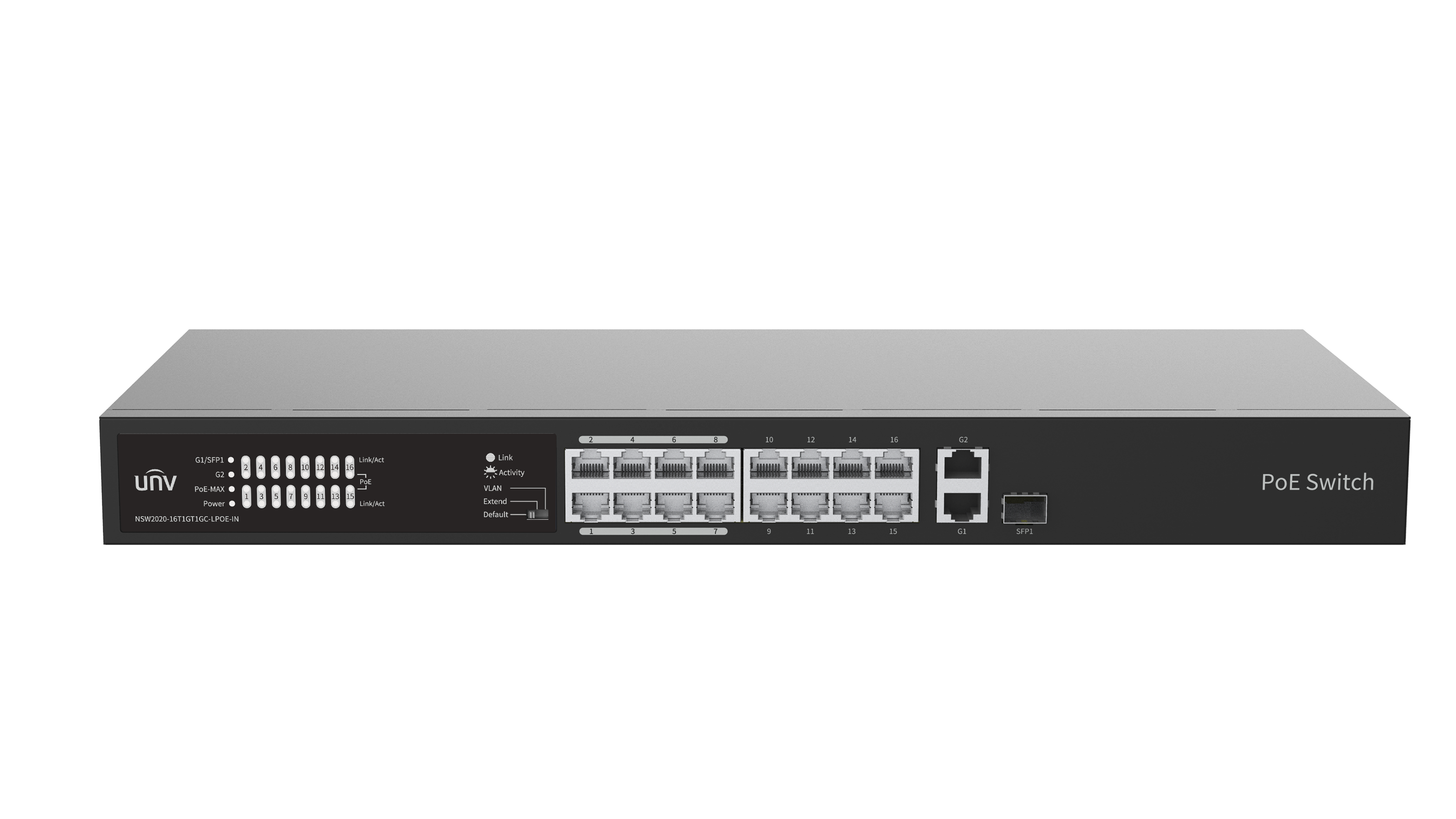

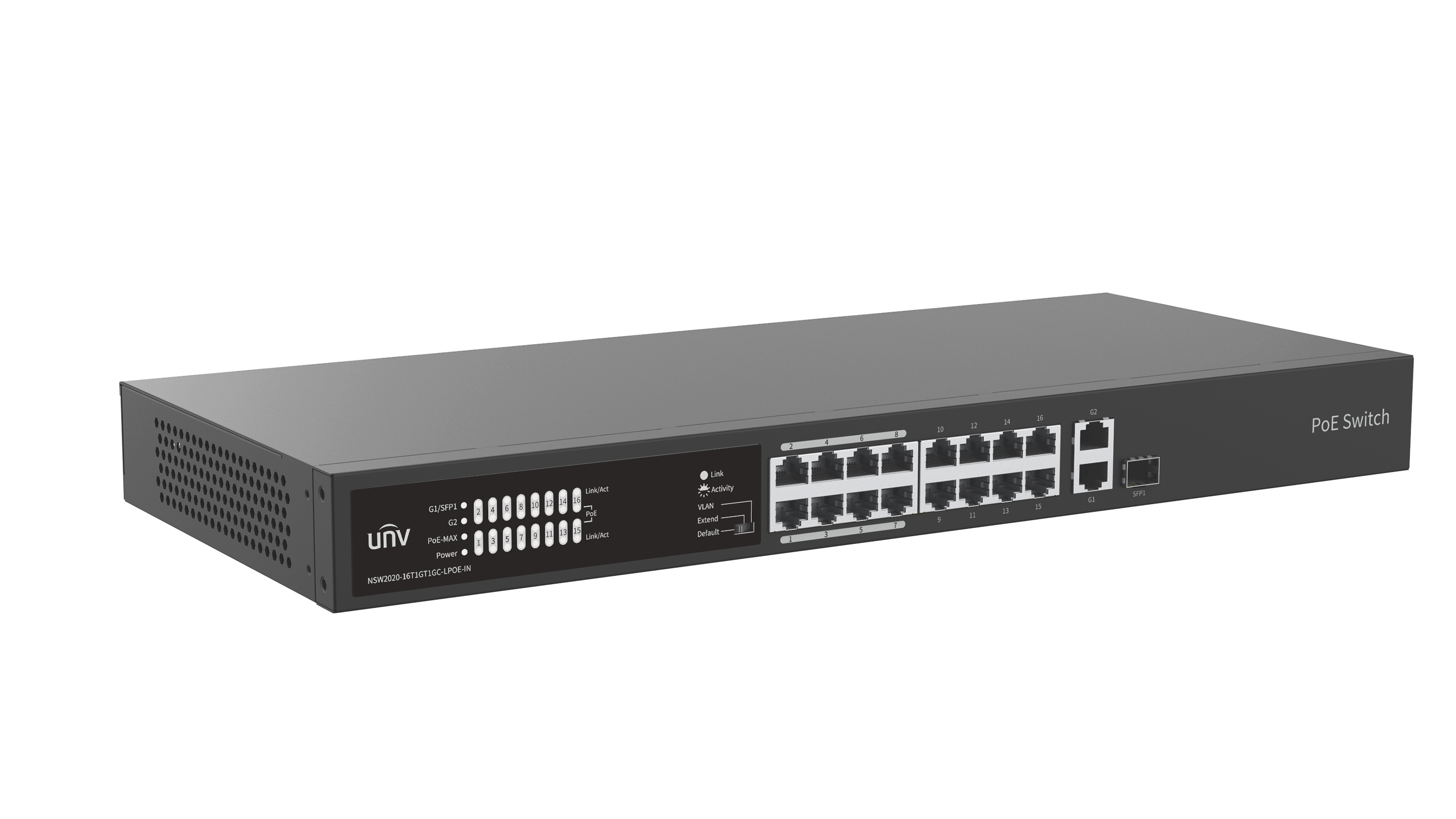

Uniview - NSW2020-16T1GT1GC-LPOE-IN - UNV Ethernet 16 Port 135W Low Power PoE Switch
Uniview - NSW2020-16T1GT1GC-LPOE-IN - UNV Ethernet 16 Port 135W Low Power PoE Switch
Part number:
NSW2020-16T1GT1GC-LPOE-IN
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

NSW2020 Series Ethernet PoE Switches



Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 4/8-channel input
  • Plug & Play with 4/8 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support HDMI and VGA simultaneous output
  • Up to 12 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
NSW2020-16T1GT1GC-LPOE-IN
Hardware Specification
Ports Type16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
StandardsIEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity7.2Gbps
Forwarding performance5.36Mpps
Packet Buffer4M bit
MAC16K
Dimensions (W×D×H)440*195*44mm
Weight1.99KG
Power SupplyAC: 100-240V, 50/60Hz
Max.Power146W
PoE802.3at/af （4/5+，7/8-）
Max. PoE PowerMax capacity: 135W,
Max capacity for single port: 30W
Prior Ports1~8
Cooling Fans0
Operating temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating humidity10%～90% (noncondensing)
IndicatorPOWER Steady on: AC input is normal, POWER Off: No AC input,
PoE-MAX off ：The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal
Working ModeDefault(Normal mode) : All ports can communicate with each other.,
Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. , VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time.
