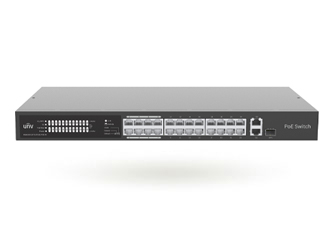

Uniview - NSW2020-24T1GT1GC-POE-IN - UNV Ethernet 24 Port 370W PoE Switch
Part number:
NSW2020-24T1GT1GC-POE-IN
Price:
UNV Ethernet 24 Port PoE Switch
Features:
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
| Model | NSW2020-6T-POE-IN | NSW2020-10T-POE-IN | NSW2020-16T1GT1GC-POE-IN | NSW2020-24T1GT1GC-POE-IN |
| Ports | 6×100Mbps network ports (RJ45), including 4 PoE ports | 10×100Mbps network ports (RJ45), including 8 PoE ports | 16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports | 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,I EEE802.3at | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,I EEE802.3af,IEEE802.3at,IEEE802.3az | ||
| Switching capacity | 1.2Gbps | 2Gbps | 7.2Gbps | 8.8Gbps |
| Forwarding performance | 0.90Mpps | 1.49Mpps | 5.36Mpps | 6.55Mpps |
| Packet Buffer | 448Kbit | 448kbit | 4M bit | 4Mbit |
| MAC | 1K | 1K | 16K | 16K |
| Dimensions (W×D×H) | 108*100*25.5mm | 171*101*25.5mm | 440*189.8*44mm | 440*244.8*44mm |
| Weight | 0.19KG | 0.29KG | 2.12KG | 2.93KG |
| Power supply | DC：48/51V | AC: 100-240V, 50/60Hz | ||
| PoE | 802.3at/af （4/5+，7/8-） | |||
| Max. PoE Power | Max capacity: 60W Max capacity for single port: 30W | Max capacity:88W Max capacity for single port: 30W | Max capacity: 225W Max capacity for single port: 30W | Max capacity: 370W Max capacity for single port: 30W |
| Prior Ports | 1~2 | 1~2 | 1~8 | 1~8 |
| Cooling Fans | 0 | 0 | 1 | 1 |
| Operating temperature | 0°C-40°C (32°F-104°F) | |||
| Operating humidity | 10%～90% (noncondensing) | |||
| Storage humidity | 5%～90% (noncondensing) | |||
| Indicator | POWER: Steady on: AC input is normal Off: No AC input | |||
| No PoE Indicator | PoE: Off: No PoE power supply Steady on: PoE power supply is normal | |||
| PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification | ||||
| LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data | ||||
| Working Mode | Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters. | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC | ||
