UNV - NSW2100-6GT-POE-IN - Giga 4 Port Lite Cloud Managed PoE Switch
Product Overview

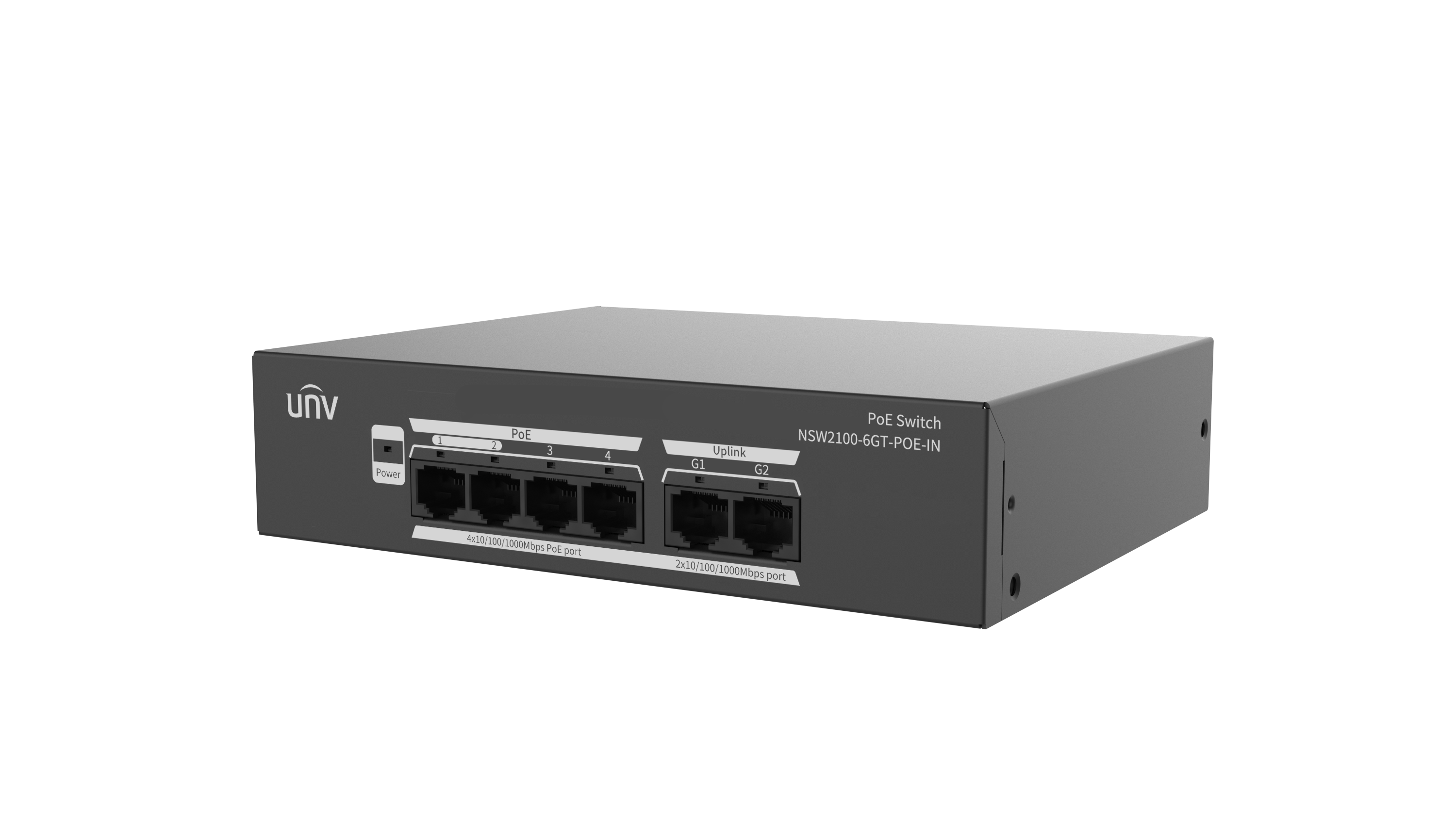

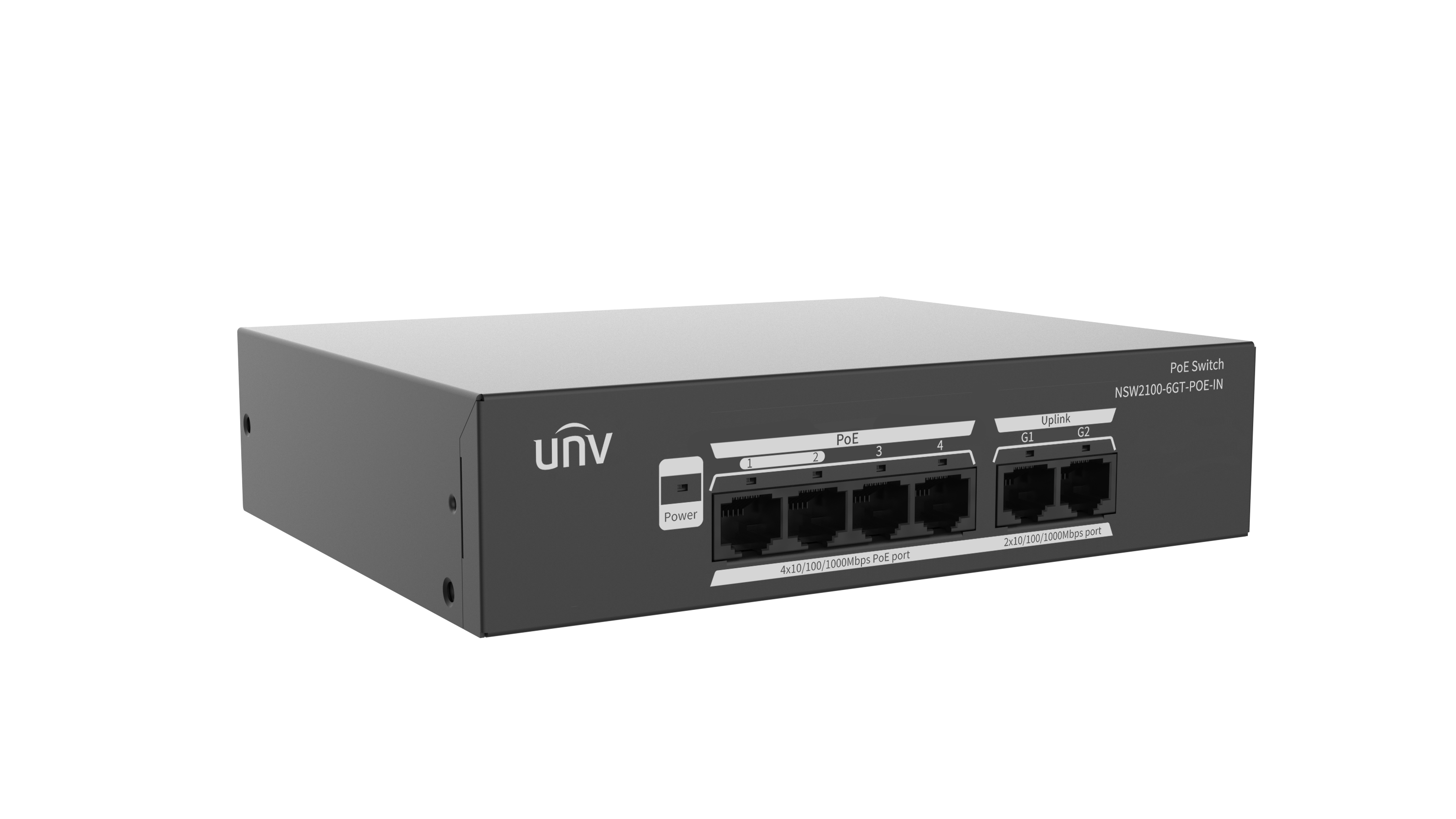

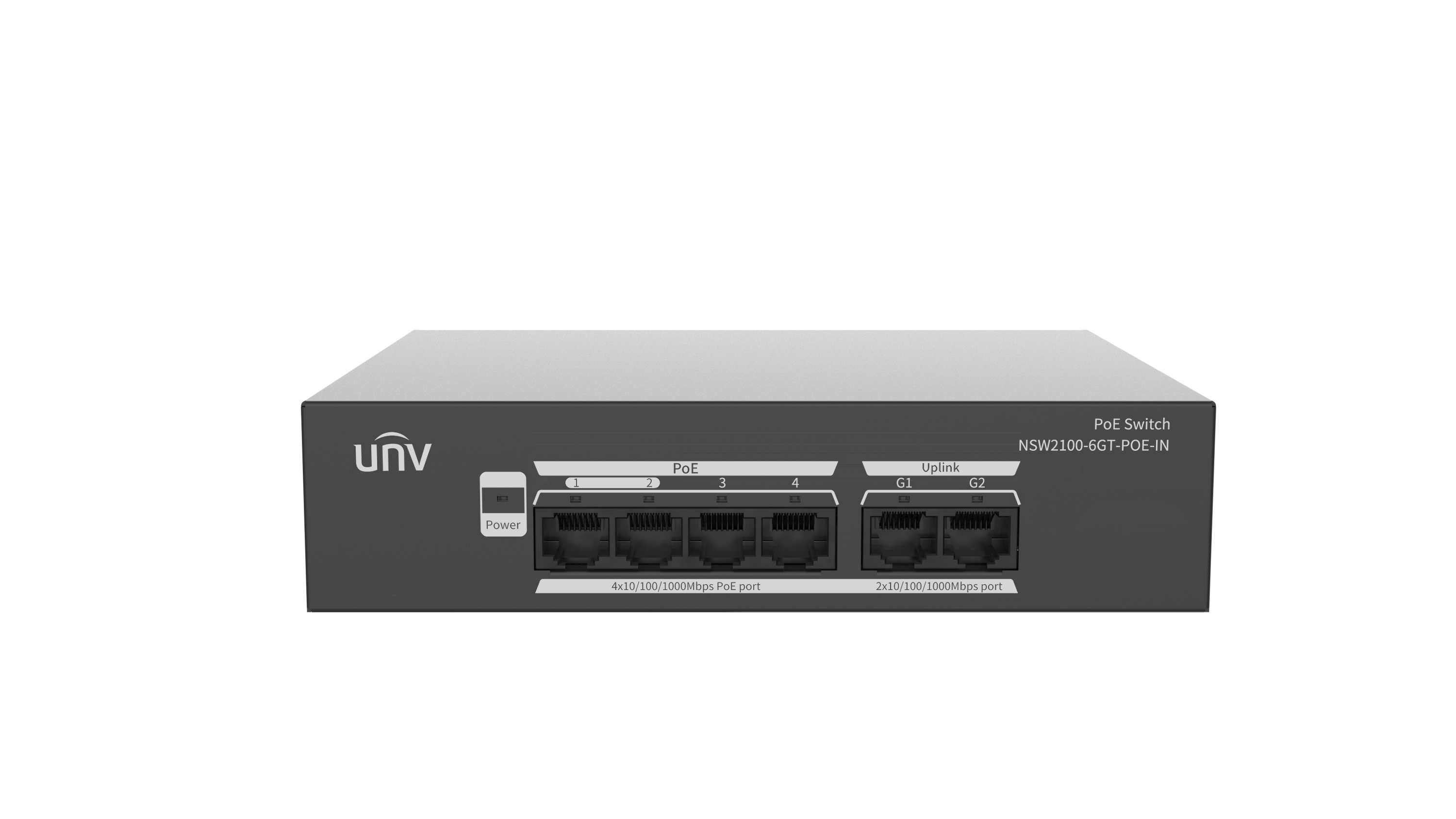

Uniview NSW2100-6GT-POE-IN is a Giga 4 Port Lite Cloud Managed PoE Switch with 4 Gigabit PoE ports and 2 additional Gigabit RJ45 ports. It delivers a switching capacity of 12 Gbps and forwarding performance of 8.92 Mpps. The switch provides 65W total PoE budget with up to 30W per port, supporting IEEE 802.3af/at PoE standards, and features cloud management via app with QR code scanning for remote device status viewing and PoE power restart.
Key Configuration
- • 4 × 10/100/1000 Mbps PoE ports (RJ45) + 2 × 10/100/1000 Mbps ports (RJ45)
- • Switch capacity: 12 Gbps; forwarding rate: 8.92 Mpps
- • Total PoE power: 65W; per-port maximum: 30W
- • PoE modes: Mode A (1236) and Mode B (4578)
- • MAC address table: 2K; packet buffer: 1 Mbit
Key Features
• Cloud management: scan QR code for app access; remote device status viewing and PoE power restart
• Extend mode: up to 250m communication range with 10 Mbps auto-negotiation rate; supports up to 250m power supply via standard network cable
• Port priority: priority ports (1-2) receive power first when PoE budget is full
• VLAN support: up to 6 VLANs with IDs 1-4094; loop detection support; port isolation security
• Link aggregation: supports two aggregation groups (up to four ports); N:1 port mirroring; static MAC support (up to 32 entries) • All-metal casing; fanless design
Technical Context
Standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at. Software features: full duplex, half duplex, auto-negotiation; port enable/disable; port auto-negotiation rate; port priority flow control; port flow statistics. Management capabilities: device upgrade, factory reset, configuration import/export, device restart. System view: device name, current version, IP address, MAC address, DNS. LED indicators: Power (off/abnormal, green/normal, yellow/PoE >85%), Link/Act (off/disconnected, on/connected, blinking/data transmission). NDAA compliant.
Installation Notes
Dimensions (W × D × H): 169 × 132 × 40 mm; weight: 0.65 kg. All-metal casing. Operating temperature: 0°C to 45°C (32°F to 113°F); humidity: 10% to 90% non-condensing. Power supply: AC 100-240V, 50/60Hz; max power consumption: 70W. No cooling fans (fanless).
| Hardware | |
|---|---|
| Ports Type | 4x 10/100/1000Mbps PoE port (RJ45) 2x 10/100/1000Mbps port (RJ45) |
| Switching Capacity | 12 Gbps |
| Forwarding Performance | 8.92 Mpps |
| Packet Buffer | 1 Mbit |
| MAC Address Table | 2K |
| Priority Ports | 1 to 2 |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Dimensions (W×D×H) | 169 x 132 x 40 mm |
| Power Supply | AC: 100V to 240V, 50/60Hz |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Mode | Mode A (1236), Mode B (4578) |
| Max. PoE Power | Max capacity: 65W Maximum PoE power for single port: 30W |
| Max. Power Consumption | 70W |
| Cooling Fans | 0 (Fanless) |
| Weight | 0.65 kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Indicator LEDs | Power: Off: Abnormal power input. Green: Normal power input. Yellow: Total PoE power > 85% of device rating. Link/Act: Off: Disconnected. On: Connected. Blinking: Transmitting data. |
| Software | |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control Supports port flow statistics Supports two link aggregation groups (up to four ports) |
| VLAN | Allows up to 6 VLANs with IDs from 1 to 4094 |
| MAC Address Management | Support static MAC, up to 32 entries |
| POE Management | Allows viewing PoE status and enabling/disabling PoE power supply via APP |
| Loop Detection | Loop Detection supported |
| Security | Supports port isolation |
| Maintenance | Supports N:1 port mirroring Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart via software |
| System | Allows viewing device name, current version, IP address, MAC address, DNS, etc. Allows editing and managing IP address and device name |
| Compliance | |
| NDAA Compliant | Support |
