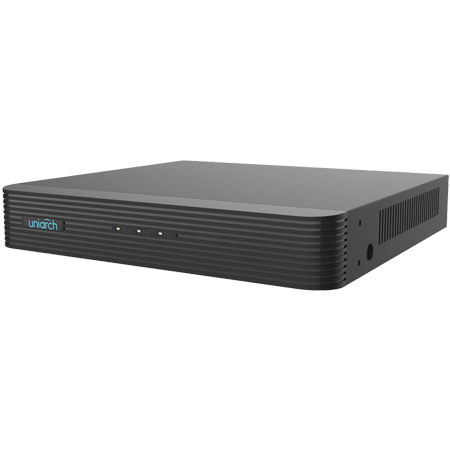

Uniview - NVR-104E2 - Uniarch 1 SATA NVR, 4CH, 4K
Part number:
NVR-104E2
Price:
1 SATA NVR, 4CH, 4K
Features:
- Support Ultra 265/H.265/H.264 video formats
- 4/10-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD, up to 6TB
- Support cloud upgrade
| Model | NVR-104E2 | NVR-110E2 |
| Video/Audio Input | ||
| IP Video Input | 4-ch | 10-ch |
| Network | ||
| Incoming Bandwidth | 64Mbps | |
| Outgoing Bandwidth | 32Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, DHCP | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 3840X2160/30HZ, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF | |
| Audio Output | 1-ch, 3.5mm | |
| Synchronous Playback | 4-ch | 10-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9/10 |
| Decoding | ||
| Decoding format | Ultra 265/H.265/H.264 | |
| Liveview/Playback | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF | |
| Capability | 1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 10 x D1@30 | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | up to 6TB for each disk | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤3 W (without HDD) | |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 260mm × 243mm × 46mm (10.2" × 9.6" × 1.8") | |
| Weight (without HDD) | ≤1kg (2.2lb) | |
