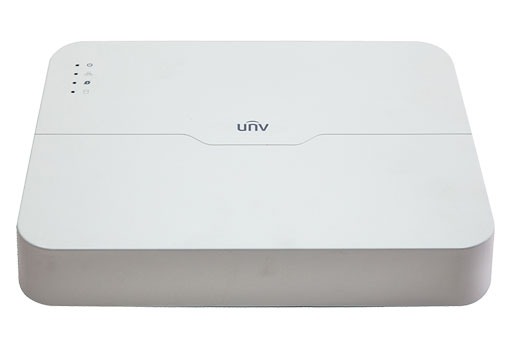

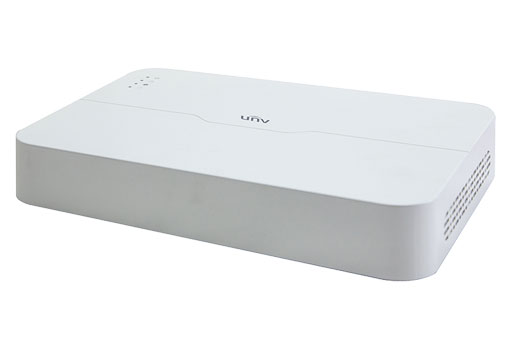

Uniview - NVR301-04L-P4 - UNV NVR301-04L-P4 4K Network Video Recorder
Part number:
NVR301-04L-P4
Price:
UNV NVR301-04L-P4 4K Network Video Recorder
Features:
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16-channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 1 SATA HDD up to 10 TB
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Model | NVR301-04L-P4 | NVR301-08L-P8 | NVR301-16L-P8 |
| Video/Audio Input | |||
| IP Video Input | 4-ch | 8-ch | 16-ch |
Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 40Mbps | 60Mbps | 60Mbps |
| Outgoing Bandwidth | 64Mbps | 64Mbps | 80Mbps |
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Outp ut | |||
HDMI/VGA Output | HDMI: 4K (3840x2160) /30Hz, 1920x1080p /6 0 Hz, 1920x1080p /50Hz, 1600x1200 / 60 Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50H z, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | ||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/96 0p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | |||
| Decoding format | Ultra 265, H.265, H.264 | ||
Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/96 0p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@ 30, 8 x 720p@30, 16 x D1 | ||
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | up to 10TB for each disk | ||
| Smart | |||
| VCA Detection | Face detection, Intrusion detection, Cr oss line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | ||
| VCA Search | Face search, Behavior search | ||
| Statistical Analysis | People counting | ||
| External Interface | |||
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethe rnet Interface | ||
| USB Interface | Rear panel：2 x USB2.0 | ||
| PoE | |||
| Interface | 4 independent 100 Mbps PoE | 8 independent 100 Mbps PoE network interfaces | |
| network interfaces | ||
| Max Power | Max 30W for single port Max 54W in total ( 13.5W for each ) | Max 30W for single port Max 108W in total ( 13.5W for each ) |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |
| General | ||
| Power Supply | 48V DC Power Consumption: ≤ 8 W( without HDD ) | 52V DC Power Consumption: ≤ 8 W( without HDD ) |
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Hum idity ≤ 90% RH(non-condensing) | |
| Dimensions(W× D×H) | 42 × 205 × 205mm ( 1.7" × 8.1" × 8.1" ) | 270mm×205mm × 42mm (10.6" ×8.1"× 1.7") |
Weight ( without HDD ) | 0.59kg ( 1.3 lb ) | ≤ 0.68 Kg ( 1.50 lb ) |
