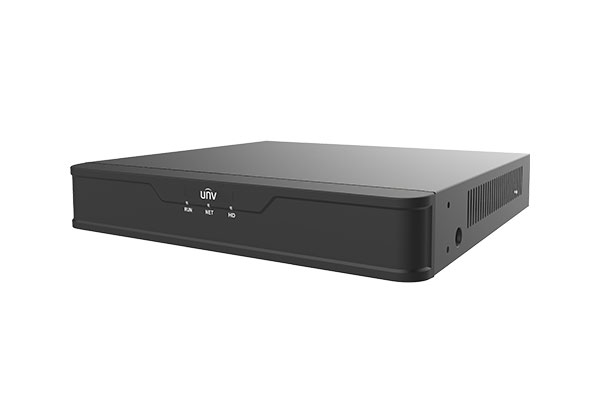

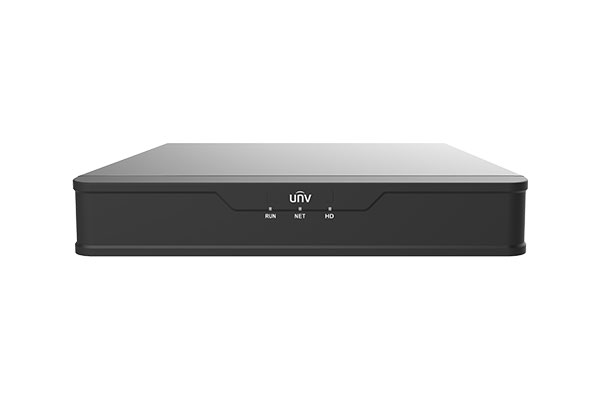

Uniview - NVR301-04S3-P4 - UNV NVR301-04S3-P4 4K Network Video Recorder
Part number:
NVR301-04S3-P4
Price:
1 HDD 4-ch 4 PoE 1U Network Video Recorder
Features:
- Support Ultra265/H.265/H.264 video formats
- 4/8-channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- Up to 4K resolution recording
- 1 SATA HDDs, up to 6 TB
- Support cloud upgrade
| Model | NVR301-04S3-P4 |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 4-ch |
| Corridor Mode Screen | 3/4 |
| Decoding | |
| Decoding format | Ultra265/H.265/H.264 |
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interfaces |
| Capacity | Up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| PoE | |
| Interface | 4 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8") |
| Weight (without HDD) | ≤1.1kg (2.43lb) |
