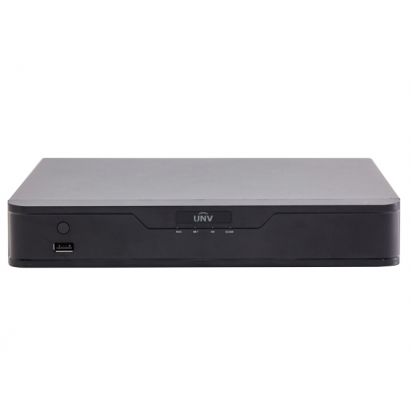

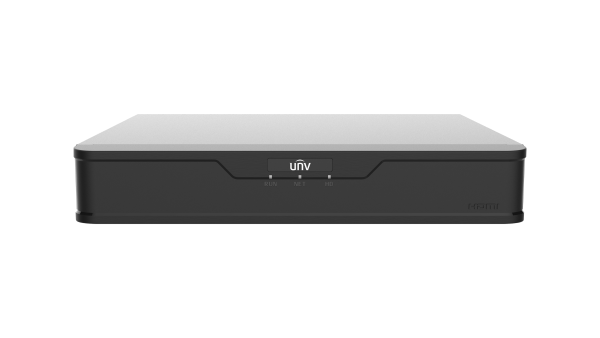

UNV - NVR301-08-P8 - 1 HDD 8-ch 8 PoE 1U Network Video Recorder
Product Overview
Uniview NVR301-08-P8 is an 8-channel 1U network video recorder with 8 independent PoE interfaces. It supports Ultra H.265, H.265, and H.264 video formats, recording resolution up to 12MP, and decoding capability up to 1 x 12MP@30 (Smart Off) or 2 x 4K@30 (Smart On). The recorder features 1 SATA HDD bay supporting up to 24TB, ANR technology for network failover storage, and SeekFree function for up to 8 channels with UNV Face/SIP/UMD IPC.
Key Configuration
- • 8-ch IP video input; 8 independent PoE ports (10/100M, IEEE 802.3at/af)
- • Incoming bandwidth: 80 Mbps; outgoing bandwidth: 80 Mbps
- • PoE budget: max 30W per single port, 75W total
- • 1 SATA interface; up to 24TB per HDD (environment temperature ≤40°C for maximum capacity)
- • Video outputs: 1-ch HDMI (4K@30Hz) and 1-ch VGA with simultaneous output; HDMI 1.4
Key Features
• Decoding capability – Smart Off: 1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30; Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 (resolution per channel ≤8192×4096 pixels)
• SeekFree function: up to 8-ch with UNV Face/SIP/UMD IPC
• Smart by IPC (all channels, up to 8 images/s total): face detection, vehicle detection (LPR), temperature detection, SIP, UMD, video metadata, traffic monitoring
• Smart by NVR: face detection, smart intrusion prevention (SIP), ultra motion detection (UMD); VCA search: motor vehicle, non-motor vehicle, human body, general search, people counting report, heat map
• ANR technology for storage reliability during network disconnection; cloud upgrade support
• Alarm: 4 inputs / 1 output; audio: 1-ch RCA input, 1-ch RCA output; two-way audio supported
Technical Context
Decoding capability per channel cannot exceed 8192 pixels in length and 4096 pixels in width. Recording resolutions supported: 12MP through CIF. Live view display: 1/4/6/8/9; corridor mode screen: 3/4/5/7/9; playback screen: 1/4/9. Number of concurrent playback: 16-ch; synchronous playback in local: 8-ch. Protocols: TCP/IP, P2P, SMTP, NFS, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv6, IPv4, HTTPS. Remote users: up to 128. Search by image supported. Vehicle picture library: up to 5 libraries with up to 25,000 vehicle pictures total. Snapshot records capacity: 500k for face, 500k for vehicle, 500k for SIP. 38 GUI languages supported. Downlink ONVIF Profile S supported. NDAA compliant.
Installation Notes
Dimensions: 260 × 215 × 46.6 mm (10.2" × 8.5" × 1.8"), 1U form factor; weight without HDD: ≤0.98 kg (2.17 lb). Operating temperature: -10°C to 50°C (14°F to 122°F), humidity ≤95% RH non-condensing. Power supply: DC 52V/1.8A. Power consumption without HDD: ≤15W. External interfaces: rear panel 2 × USB2.0, 1 × RJ45 network (10/100M self-adaptive). PoE: 8 × RJ45 10/100M self-adaptive. Heat dissipation: radiator. Buzzer supported. Certifications: CE, FCC, UL, RoHS, WEEE.
| Model | NVR301-04-P4 | NVR301-08-P8 | NVR301-16-P8 |
| Video/Audio Input | |||
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 40Mbps | 60Mbps | 60Mbps |
| Outgoing Bandwidth | 64Mbps | 64Mbps | 80Mbps |
| Remote Users | 128 | ||
| Video/Audio Output | |||
HDMI/VGA Output | HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | ||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Decoding | |||
| Compression | H.265/H.264 | ||
Live view /Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25, 16 x D1 | ||
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | up to 6TB for each disk | ||
| External Interface | |||
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel：2 x USB2.0, Front panel：1 x USB2.0 | ||
| Alarm In | 4-ch | ||
| Alarm Out | 1-ch | ||
| PoE | |||
| Interface | 4 independent 100 Mbps PoEnetwork interfaces | 8 independent 100 Mbps PoEnetwork interfaces | |
Max Power | Max 30W for single port Max 54W in total ( 13.5W for each ) | Max 30W for single port Max 108W in total ( 13.5W for each ) | |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||
| General | |||
| Power Supply | 48V DC | 52V DC |
Consumption ( without HDD ) |
≤ 5 W |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 44 × 260 × 240mm ( 1.7" × 10.2" × 9.4" ) |
Weight ( without HDD ) | ≤ 1.12 Kg ( 2.47 lb ) |
