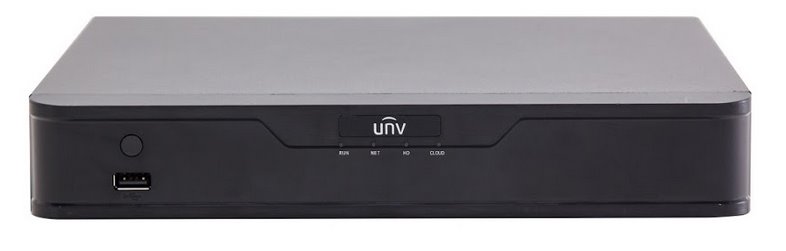

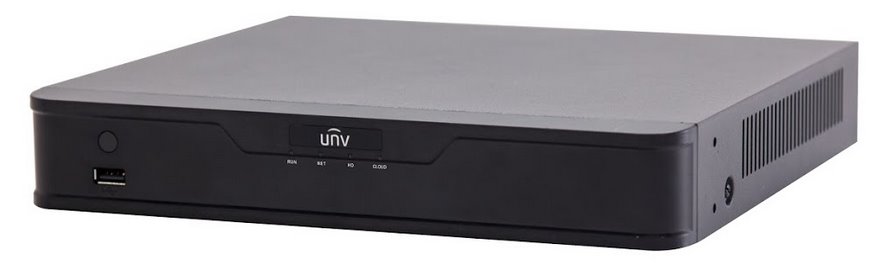

Uniview - NVR301-08E - UNV NVR301-08E 4K Network Video Recorder
Part number:
NVR301-08E
Price:
UNV NVR301-08E 4K 4Network Video Recorder
Features:
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 1 SATA HDD up to 8 TB
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Model | NVR301-04E | NVR301-08E | NVR301-16E |
| Video/Audio Input | |||
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 40Mbps | 60Mbps | 80Mbps |
| Outgoing Bandwidth | 64Mbps | 64Mbps | 80Mbps |
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/ 60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50 Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/ 960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | |
| Decoding | |||
| Decoding format | Ultra 265, H.265, H.264 | ||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1 | ||
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | up to 8TB for each disk | ||
| Smart | |||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | ||
| VCA Search | Face search, Behavior search | ||
| Statistical Analysis | People counting | ||
| External Interface | |||
| Network Interface | 1 RJ-45 10M/100M Self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel: 2 x USB2.0, Front panel: 1 x USB2.0 | ||
| Alarm In | 4-ch | ||
| Alarm Out | 1-ch | ||
| General | |||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||
| Dimensions(W×D×H) | 260mm×240mm×44mm (10.2"×9.4" ×1.7") | ||
| Weight ( without HDD ) | ≤ 1.12 Kg ( 2.47 lb ) | ||
