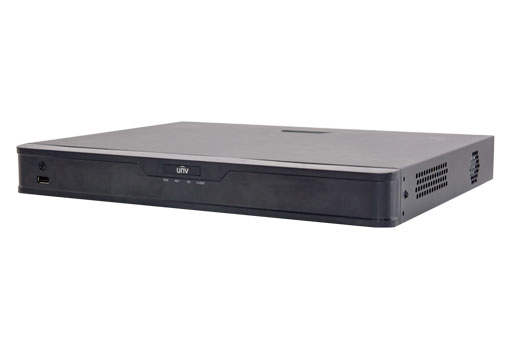

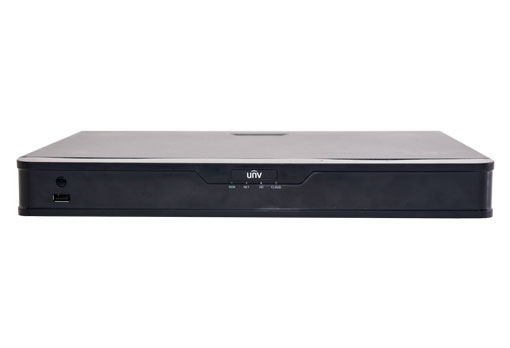

UNV NVR302-08E-P8-B 4K Network Video Recorder
Features:
- Support Ultra 265/H.265/H.264 video formats
- 8/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, up to 10TB for each HDD
- Support redundant recording
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Plug & Play with up to 8/16 independent PoE network interfaces
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Model | NVR302-08E-P8-B | NVR302-16E-P8-B | NVR302-16E-P16-B |
| Video/Audio Input | |||
| IP Video Input | 8-ch | 16-ch | |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 320Mbps | ||
| Outgoing Bandwidth | 160Mbps | 320Mbps | |
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 8-ch | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | |
| Decoding | |||
| Decoding format | Ultra 265, H.265, H.264 | ||
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30 | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30 | |
| Hard Disk | |||
| SATA | 2 SATA interfaces | ||
| Capacity | up to 10TB for each disk | ||
| External Interface | |||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||
| Alarm In | 4-ch | ||
| Alarm Out | 1-ch | ||
| PoE | |||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |
Max Power | Max 30W for single port Max 130W in total | Max 30W for single port Max 240W in total | |
| Supported Standard | IEEE 802.3af/at | ||
| General | |||
Power Supply | 100 ~ 240 V AC Power Consumption: ≤ 12 W (without HDD) | ||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 380 mm × 315mm × 53 mm (15" × 12.4"×2.1") | ||
| Weight (without HDD) | ≤2.42kg (5.34lb) | ≤2.48kg (5.47lb) | |
