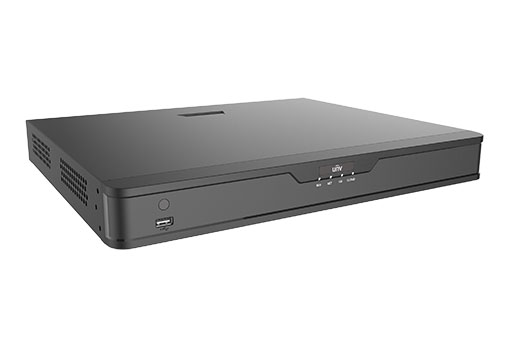

UNV 2 Hard Disks 8-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder
Features:
- Support TVI,AHD, CVI,CVBS, IP cameras with adaptive access
- 8/16-channel BNC input
- Up to 8MP resolution for recording
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coax cable
| Model | NVR302-08Q | NVR302-08U | NVR302-16Q |
| Video/Audio Input | |||
| Analog Video Input | 8-ch, BNC | 8-ch, BNC | 16-ch, BNC |
| IP Video Input | 4-ch(only IP up to 12ch), each channel up to 4K | 8-ch(only IP up to 16ch), each channel up to 4K | 8-ch(only IP up to 24ch), each channel up to 4K |
| Support AHD input: | Support AHD input: | Support AHD input: | |
| 8MP@15fps (channel1-channel2) | 8MP@15fps | 8MP@15fps(channel1-channel4) | |
| 5MP@20fps | 5MP@20fps | 5MP@20fps | |
| 4MP@30fps | 4MP@30fps | 4MP@30fps | |
| 3MP@30fps(channel1 - channel2) | 3MP@30fps | 3MP@30fps (channel1 | |
| 1080P@30fps | 1080P@30fps | -channel4) | |
| 720P@60fps | 720P@60fps | 1080P@30fps | |
Supported Analog Camera Types | Support TVI input: | Support TVI input: | 720P@60fps |
| 8MP@15fps(channel1-channel2) | 8MP@15fps | Support TVI input: | |
| 5MP@20fps | 5MP@20ps | 8MP@15fps(channel1-channel4) | |
| 4MP@30fps | 4MP@30fps | 5MP@20fps | |
| 3MP@20fps (channel1 - channel2) | 3MP@20fps | 4MP@30fps | |
| 1080P@30fps | 1080P@30fps | 3MP@20fps (channel1 - | |
| 720P@60fps | 720P@60fps | channel4) | |
| Support CVI input: | Support CVI input: | 1080P@30fps | |
| 8MP@15fps(channel1-channel2) | 8MP@15fps | 720P@60fps | |
| 4MP@30fps | 4MP@30fps | Support CVI input: | |
| 1080P@30fps | 1080P@30fps | 8MP@15fps(channel1-channel4) | |
| 720P@60fps | 720P@60fps | 4MP@30fps | |
| Support CVBS input | Support CVBS input | 1080P@30fps | |
| 720P@60fps | |||
| Support CVBS input | |||
| Audio Input | 1-ch, RCA | 4-ch, RCA | 1-ch, RCA |
| Two-way Audio | 1-ch, RCA | 1-ch,RCA | 1-ch, RCA |
| Channel Associated Audio | 1-ch,RCA | 4-ch, RCA | 1-ch,RCA |
| Network | |||
| Incoming Bandwidth | 56Mbps | 80Mbps | 72Mbps |
| Outgoing Bandwidth | 64Mbps | 64 Mbps | 80Mbps |
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
| CVBS Output | 1-ch, BNC | 1-ch, BNC | 1-ch, BNC |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
HDMI Output |
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | 4K(3840X2160)/60Hz， 4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, |
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| 1024x768/60Hz | |||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 8-ch | 8-ch | 16-ch |
| Encoding | |||
| Main stream: | Main stream: | Main stream: 8MP Lite@8fps （channel1-channel4） 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1 - channel 4) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) | |
| 8MP | 8MP@8fps | ||
| Lite@8fps(channel1-channel2） | 5MP@12fps 4MP@15fps | ||
| 5MPLite@12fps | 3MP@18fps | ||
| Recording Frame Rate | 4MP Lite@15fps 3MP@15fps(channel1 - channel2) | 2MP@25fps 720P@30fps | |
| 2MP@15fps | Sub stream: | ||
| 720P@30fps | D1@30fps(Max) | ||
| Sub stream: | |||
| D1@30fps(Max) | |||
Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CI F/CIF | 8MP/5MP/4MP/3MP/1080P/96 0P/720P/960H/4CIF/CIF | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4C IF/CIF |
| Hard Disk | |||
| SATA | 2 SATA interface | ||
| Capacity | up to 6TB for each HDD | ||
| External Interface | |||
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interface | 1RJ45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel：1 x USB2.0,Front panel：1xUSB2.0 | Rear panel：1 x USB3.0,Front panel：1xUSB2.0 | |
| Serial Interface | 1 x RS485 | ||
| Alarm In | - | 8 | - |
| Alarm Out | - | 4 | - |
| General | |||
Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | 12V DC Power Consumption: ≤ 12 W( without HDD ) | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions(W×D×H) | 380mm ×315mm× 53mm (15" × 12.4"×2.1") | ||
| Weight ( without HDD ) | ≤1.9 Kg ( 4.19lb ) | ||
