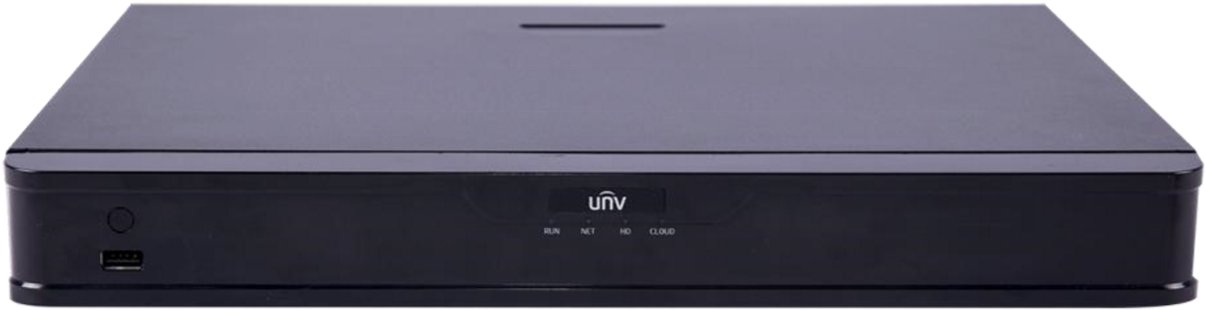

Uniview - NVR302-09E-B - 9 Channel 2 HDDs NVR
Part number:
NVR302-09E-B
Price:
9 Channel 2 HDDs NVR
Features:
- Support Ultra 265/H.265/H.264 video formats
- 9/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 6TB for each disk
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Model | NVR302-09E-B | NVR302-16E-B |
| Video/Audio Input | ||
| IP Video Input | 9-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 320Mbps | |
| Outgoing Bandwidth | 180Mbps | 320Mbps |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x10 80p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60 Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 9-ch | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF | |
| Capability | 3 x 12MP@25, 4 x 4K@30, 9 x 4MP@25 | 3 x 12MP@25, 4 x 4K@30, 9 x 4MP@25, 16 x 1080p@30 |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 6TB for each disk | |
| External Interface | ||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
| Serial Interface | 1 x RS485 | |
| USB Interface | Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0 | |
| Alarm In | 8-ch | |
| Alarm Out | 2-ch | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 12 W (without HDD) | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 380mm × 315mm ×53mm (15.0"× 12.4" ×2.1") | |
| Weight (without HDD) | ≤ 2.48Kg (5.47lb) | |
