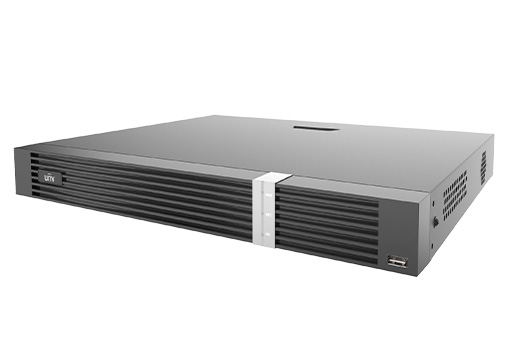

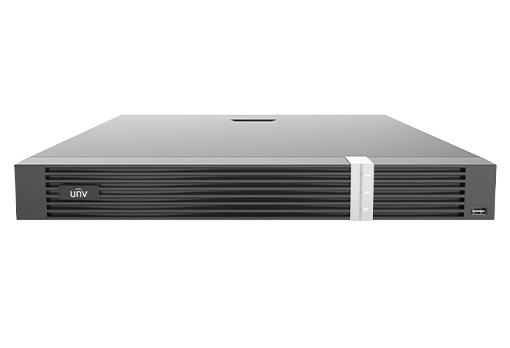

Uniview - NVR302-16E2-IQ - 4K AI Network Video Recorder with 16 Channel
Part number:
NVR302-16E2-IQ
Price:
4K AI Network Video Recorder with 16 Channel
Features:
- Support Ultra H.265/H.265/H.264 video formats
- 9/16/32-channel input
- Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- Support HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 8TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Model | NVR302-09E2-IQ | NVR302-16E2-IQ | NVR302-32E2-IQ | ||
| Video/Audio Input | |||||
| IP Video Input | 9-ch | 16-ch | 32-ch | ||
| Two-way Audio Input | 1-ch, RCA | ||||
| Network | |||||
| Incoming Bandwidth | Smart Off: 320Mbps Smart On: 160Mbps | ||||
| Outgoing Bandwidth | Smart Off: 320Mbps Smart On: 160Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS | ||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 16-ch | ||||
| Live View Display | 1/4/6/8/9 | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 | ||
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | ||
| Snapshot | |||||
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution | ||||
| Decoding | |||||
| Decoding Format | Ultra 265, H.265, H.264 | ||||
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | Smart Off: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1 Smart On: 1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 18 x 720P@30, 32 x D1 | ||||
| Hard Disk | |||||
| SATA | 2 SATA interfaces | ||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | ||||
| eSATA | NA | ||||
| Disk Group | Support | ||||
| Smart | |||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) | ||||
| NVR Smart | Smart Intrusion Prevention (SIP), UMD | ||||
| VCA Search | Behavior Search, Vehicle Search | ||||
| People Counting | People Flow Counting, Crowd Density Monitoring | ||||
| SIP by NVR with normal cameras | 4-ch | ||||
| UMD by NVR | 8-ch | ||||
| SIP, Vehicle Detection, UMD by Camera | Total 8-ch | ||||
| General Alarm | |||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection | ||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
| External Interface | |||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | ||||
| USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 | ||||
| RS232 | NA | ||||
| RS485 | 1 | ||||
| Alarm In | 8-ch | ||||
| Alarm Out | 2-ch | ||||
| General | |||||
| Power Supply | 12VDC/3.3A Power Consumption: ≤ 12 W (without HDD) | ||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||
| Dimensions (W×D×H) | 380mm × 321mm × 53mm (15.0" × 12.6"× 2.1") | ||||
| Weight (without HDD) | ≤1.8Kg (3.97lb) | ||||
| Certification | |||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||
