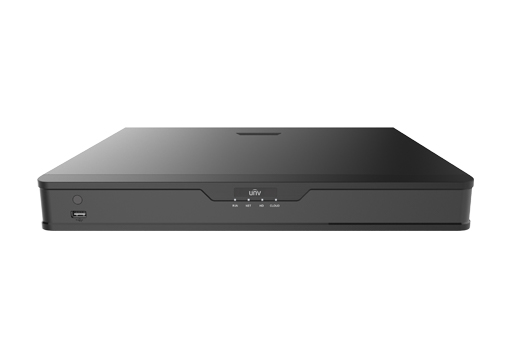

Uniview - NVR302-16S - UNV 16S 4K Network Video Recorder
Uniview - NVR302-16S - UNV 16S 4K Network Video Recorder
Part number:
NVR302-16S
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

UNV 16S 4K Network Video Recorder



Features:

  • Support Ultra265/H.265/H.264 video formats
  • 16-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • Accurate retrieval, instant playback
  • 2 SATA HDDs, up to 8TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
ModelNVR302-16S
Video/Audio Input
IP Video Input16-ch
Two-way Audio Input1-ch, RCA
Network
Incoming bandwidth160Mbps
Outgoing bandwidth96Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:
4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
VGA:
1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
Audio Output1-ch, RCA
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback16-ch
Corridor Mode Screen3/4/5/7/9/10/12/16
Decoding
Decoding formatUltra265/H.265/H.264
Live view/Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1
Hard Disk
SATA2 SATA interface
CapacityUp to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
Smart
VCA DetectionIntrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchBehavior search
Statistical AnalysisPeople counting
External Interface
Network Interface1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceRear panel: 1 x USB2.0, Front panel: 1 x USB2.0
General
Power Supply12V DC
Power Consumption: ≤ 7 W (without HDD)
Working Environment-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)380mm × 315mm ×53mm (15.0" × 12.4" ×2.1")
Weight (without HDD)≤ 1.6Kg (3.53lb)
