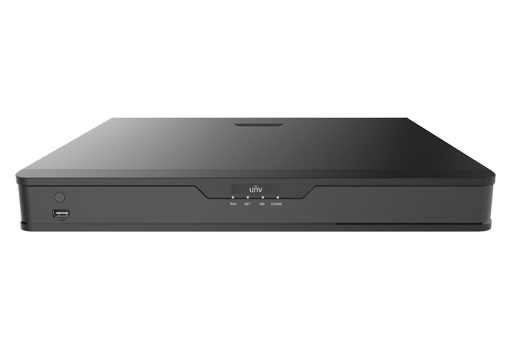

Uniview - NVR302-16S2-P16 - 4K Network Video Recorder
Product Overview
Uniview NVR302-16S2-P16 is a 16-channel 4K network video recorder with 16 independent PoE interfaces. It supports Ultra 265, H.265, and H.264 video formats with recording resolution up to 8MP. The recorder features 2 SATA HDD bays supporting up to 10TB per disk, 160 Mbps incoming bandwidth, and decoding capability up to 2 x 4K@30 or 16 x 720P@30.
Key Configuration
- 16-channel IP video input; 16 independent PoE ports (10/100M, IEEE 802.3af/at)
- Incoming bandwidth: 160 Mbps; outgoing bandwidth: 64 Mbps
- PoE budget: max 30W per single port, 240W total
- 2 SATA interfaces; up to 10TB per HDD
- Video outputs: HDMI (4K@30Hz) and VGA with simultaneous output
Key Features
• Decoding capability: 2 x 4K@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
• Plug & Play with 16 independent PoE network interfaces; third-party IP cameras supported via ONVIF Profiles S, G, T
• Recording resolutions: 8MP through CIF
• Synchronous playback: 16-ch; corridor mode screen: 3/4/5/7/9/10/12/16
• ANR technology for storage reliability during network disconnection; cloud upgrade support
• Two-way audio: 1-ch RCA input; audio output: 1-ch RCA
Technical Context
Recording resolutions supported: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF, CIF. Decoding format: Ultra 265, H.265, H.264. Live view and playback support all listed resolutions. Protocols: P2P, UPnP, NTP, DHCP, PPPoE. Remote users: up to 128. Alarm: 4 inputs / 1 output. USB interfaces: front panel 1 x USB2.0, rear panel 1 x USB3.0. Network interface: 1 x RJ-45 10/100/1000M self-adaptive Ethernet.
Installation Notes
Dimensions (W × D × H): 380 × 315 × 53 mm (14.9" × 12.4" × 2.1"); weight without HDD: ≤2.6 kg (5.29 lb). Operating temperature: -10°C to 55°C (14°F to 131°F), humidity ≤90% RH non-condensing. Power supply: 100–240V AC; power consumption without HDD: ≤10W.
| Model | NVR302-16S2-P16 | |
| Video/Audio Input | ||
| IP Video Input | 16-ch | |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 160Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |
| Decoding | ||
| Decoding format | Ultra265/H.265/H.264 | |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 | |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | Up to 10TB for each disk | |
| External Interface | ||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
| Alarm In | 4-ch | |
| Alarm Out | 1-ch | |
| PoE | ||
| Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port Max 240W in total | |
| Supported Standard | IEEE 802.3af/at | |
| General | ||
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤10W(without HDD) | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") | |
| Weight (without HDD) | ≤2.6kg (5.29lb) | |
