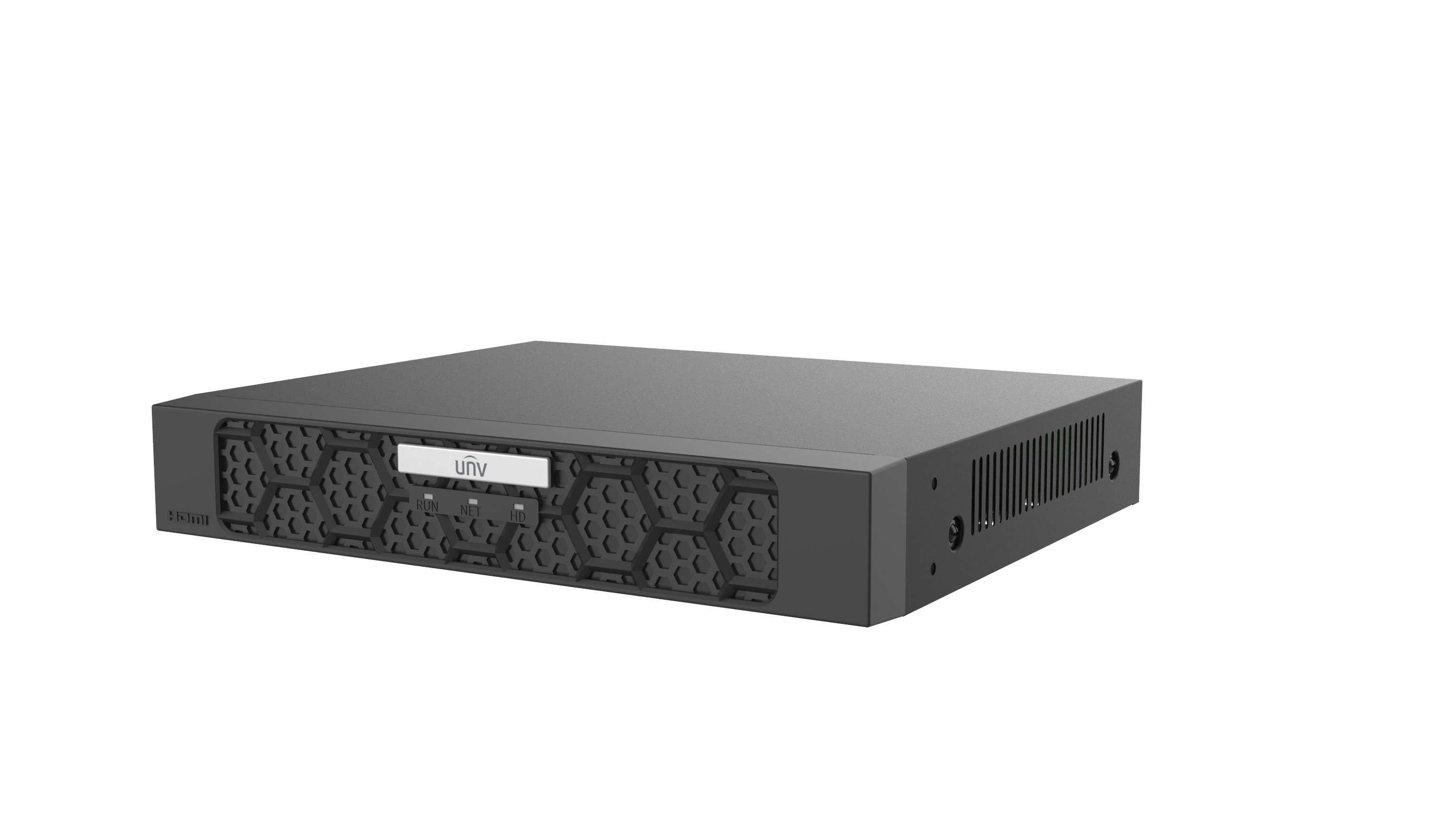

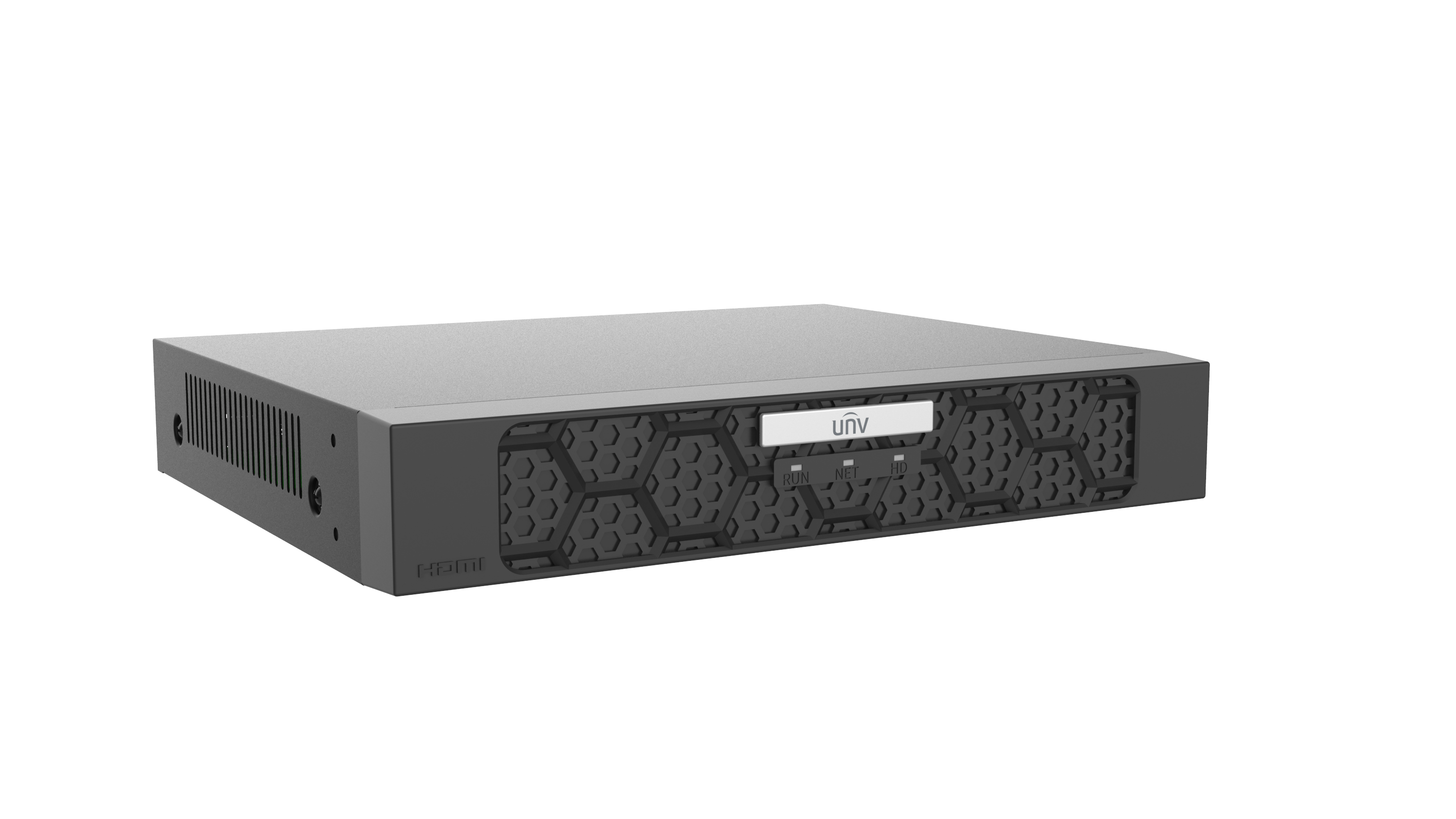

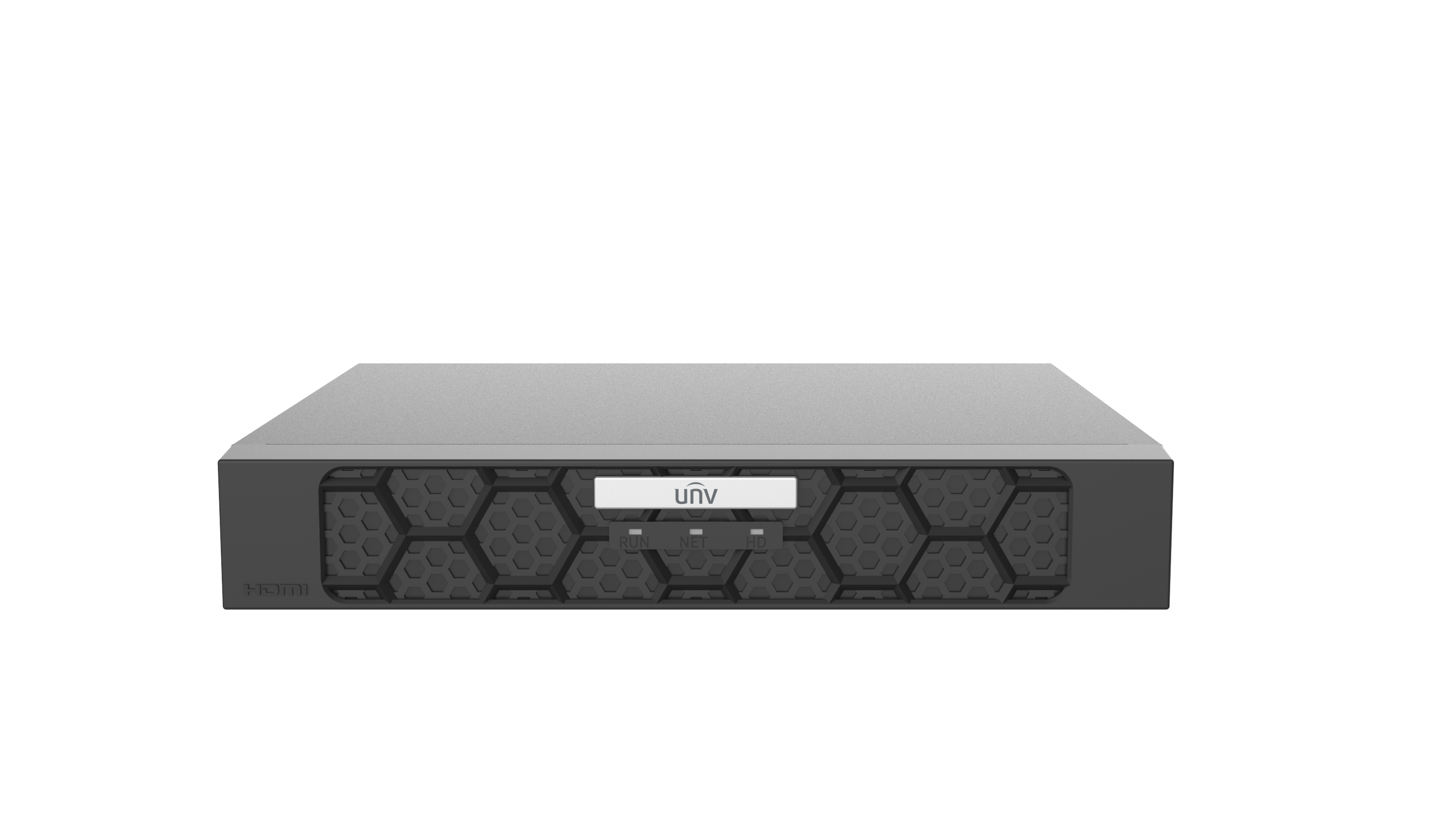

UNV - NVR501-04B-P4 - 4K Network Video Recorder
Product Overview
Uniview NVR501-04B-P4 is a 4-channel 4K network video recorder with 4 independent PoE interfaces. It supports Ultra 265 and H.265 video formats, up to 8MP recording resolution, and decoding capability up to 4 x 4K@30 for Ultra 265/H.265. The recorder features 1 SATA HDD bay supporting up to 16TB, ANR technology for network failover storage, and ONVIF (Profiles S, G, T) and RTSP camera compatibility.
Key Configuration
- • 4-channel IP video input; 4 independent PoE ports (10/100M, IEEE 802.3at/af)
- • Incoming bandwidth: 80 Mbps; outgoing bandwidth: 64 Mbps
- • PoE budget: max 30W per port, 50W total
- • 1 SATA interface; up to 16TB per HDD
- • Video outputs: HDMI (4K@30Hz) and VGA simultaneous output
Key Features
• Decoding formats: Ultra 265, H.265, H.264; decoding capability: Ultra 265/H.265 – 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30; H.264 – 2 x 16MP@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30
• Plug & Play with PoE interfaces for supported cameras; ANR technology for storage reliability during network disconnection
• VCA detection by IPC: face detection, intrusion detection, cross line detection, enter/leave area, ultra motion detection, people counting, crowd density monitoring
• VCA search: motor vehicle, non-motor vehicle, human body, general search, people counting report, heat map
• Two-way audio: 1-ch RCA; audio compression: G.711A, G.711U
• ONVIF Profiles S, G, T; RTSP protocols; cloud upgrade support
Technical Context
Decoding capability per channel cannot exceed 8192 pixels in length and 4096 pixels in width. Recording resolutions supported: 16MP through CIF. Live view display modes: 1/4. Corridor mode screen: 3/4. Remote users: up to 128. Protocols include TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4. Snapshots: FTP/schedule/event, up to D1 resolution.
Installation Notes
Dimensions: 260 × 222 × 47 mm (10.2" × 8.7" × 1.8"); weight without HDD: ≤1.1 kg (2.43 lb). Operating temperature: -10°C to 55°C (14°F to 131°F), humidity ≤90% RH non-condensing. Power supply: DC 48V/1.35A. Power consumption without HDD: ≤10W. External interfaces: 1 x RJ45 network, rear panel USB: 1 x USB2.0, 1 x USB3.0. Audio: 1-ch RCA input, 1-ch RCA output. Certifications: CE, FCC, UL, RoHS, WEEE.
NVR501-04B-P4 | NVR501-08B-P8 | |||
| Decoding | ||||
| Decoding Format | Ultra 265, H.265, H.264 | |||
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30 | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30 | ||
| Decoding Capability Description | *. The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. | |||
| Audio Compression | G.711A, G.711U | |||
| Network | ||||
| Incoming Bandwidth | 80Mbps | |||
| Outgoing Bandwidth | 64Mbps | |||
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 | |||
| Browser(Plugin) | Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) | |||
| Video/Audio Input | ||||
| IP Video Input | 4-ch | 8-ch | ||
| RCA Audio Input | 1-ch | |||
| Video/Audio Output | ||||
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| RCA Audio Output | 1-ch | |||
| Liveview Display | 1/4 | 1/4/6/8/9 | ||
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | ||
| Two-way Audio | ||||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | |||
| Snapshot | ||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |||
| Recording | ||||
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF | |||
| Smart | ||||
| VCA Detection by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring) | |||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map | |||
| Smart by IPC | Total 4-ch(Face Detection, SIP, UMD) | Total 8-ch(Face Detection, SIP, UMD) | ||
| Alarm | ||||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||
| GUI Language | ||||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||
| Hard Disk | ||||
| SATA | 1 SATA Interface | |||
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size) | |||
| External Interface | ||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||
| USB | Rear panel: 1 x USB2.0, 1 x USB3.0 | |||
| RS485 | N/A | |||
| RS232 | N/A | |||
| Alarm In | N/A | |||
| Alarm Out | N/A | |||
| Power Supply | DC 48V/1.35A | DC 52V/1.8A | ||
| PoE | ||||
| PoE Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface | ||
| Max Power | Max 30W for single port, Max 50W in total | Max 30W for single port, Max 75W in total | ||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |||
| Working Environment | ||||
| Working Temperature | -10 °C ~ 55 °C (14 °F ~ 131 °F) | |||
| Working Humidity | ≤ 90% RH (non-condensing) | |||
| Power Consumption (without HDD) | ≤ 10W | |||
| Dimensions | ||||
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) | |||
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") | |||
| Certification | ||||
| Certification | CE; FCC; UL; RoHS; WEEE | |||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||
| FCC | Part15 Subpart B | |||
