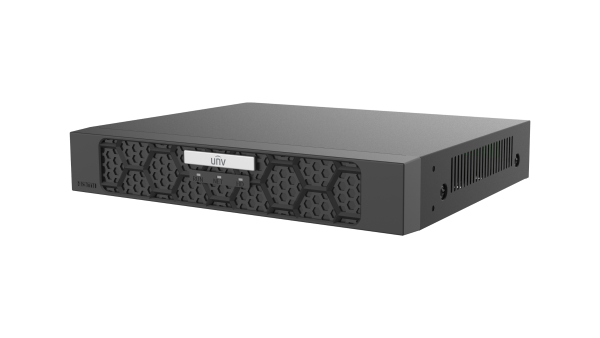

UNV - NVR501-08B-P8-IQ-IND - 4-ch 4 PoE 1U Network Video Recorder
Product Overview
The Uniview NVR501-B-P-IQ Series is a 1U network video recorder family available in 4-channel and 8-channel PoE configurations. It supports Ultra 265, H.265, and H.264 recording, up to 16MP resolution, intelligent video analytics, ANR storage protection, and simultaneous HDMI/VGA display.
Integrated PoE interfaces provide plug-and-play connectivity for compatible IP cameras, while a SATA storage interface, cloud upgrades, and broad ONVIF/network protocol support simplify deployment and maintenance.
Key Configuration
Model: NVR501-B-P-IQ Series | Channels: 4 or 8 IP video inputs | Recording: Up to 16MP | Storage: 1 SATA interface, up to 24TB per HDD | Connectivity: 4 or 8 IEEE 802.3af/at PoE ports, HDMI up to 4K, VGA, RJ45 network interface | Form Factor: 1U, 260 × 215 × 46.6mm
Key Features
- · Available as NVR501-04B-P4-IQ or NVR501-08B-P8-IQ with 4 or 8 channels
- · Ultra 265, H.265, and H.264 video decoding and recording
- · Recording support up to 16MP resolution
- · Plug-and-play PoE with 4 or 8 independent 10/100M PoE interfaces
- · HDMI output up to 4K (3840 × 2160) with simultaneous VGA output
- · One SATA interface supporting HDDs up to 24TB each
- · ANR technology for improved recording continuity during network disconnection
- · AI functions including face detection, face comparison, vehicle detection, SIP, UMD, traffic monitoring, and video metadata
- · AcuSearch, AcuTrack, face, vehicle, human-body, people-counting, and heat-map search functions
- · ONVIF-compatible third-party camera support and cloud upgrade capability
Technical Context
The recorder combines camera-side and NVR-side analytics. Depending on the connected cameras and selected model, it can process face events, license-plate and vehicle data, smart intrusion prevention, ultra-motion detection, people counting, traffic monitoring, and metadata searches. ANR technology helps recover missing recordings when network connectivity is interrupted.
Installation Notes
Install the recorder in a ventilated 1U equipment space and connect compatible cameras to the integrated PoE interfaces. The 4-channel version uses DC 48V/1.35A input, while the 8-channel version uses DC 52V/1.8A input. Operating temperature is -10°C to 50°C with up to 90% non-condensing humidity. Install a compatible SATA HDD separately and keep the operating environment below 40°C when using maximum-capacity drives.
| Product Information | |
| Series | NVR501-B-P-IQ Series Network Video Recorder |
| Models | NVR501-04B-P4-IQ NVR501-08B-P8-IQ |
| Video Input | 4 channels / 8 channels |
| Video Compression | Ultra 265, H.265 and H.264 |
| Decoding and Recording | |
| Maximum Recording Resolution | Up to 16MP |
| Decoding Capability | NVR501-04B-P4-IQ: Smart Off: 2×16MP@30, 2×12MP@30, 4×4K@30 Smart On: 2×12MP@30, 2×4K@30, 4×4MP@30 NVR501-08B-P8-IQ: Smart Off: 2×16MP@30, 2×12MP@30, 4×4K@30, 8×4MP@30 Smart On: 2×12MP@30, 2×4K@30, 6×4MP@30, 8×3MP@30 |
| Concurrent Playback | 16 channels |
| Recording Modes | 4-channel model: 1/4 8-channel model: 1/4/6/8/9 |
| Playback Modes | 4-channel model: 3/4 8-channel model: 3/4/5/7/9 |
| Snapshot | 1 channel, up to D1 resolution |
| ANR | Supported for storage reliability during network interruptions |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| Remote Users | Up to 128 |
| Network Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv4 and IPv6 |
| Network Interface | 1× RJ45 10/100Mbps self-adaptive Ethernet port |
| Web Browser Support | IE10, IE11, Chrome 45+, Edge 79+ and Firefox 52+ |
| Video and Audio Output | |
| Video Output | 1× HDMI and 1× VGA with simultaneous output |
| HDMI Output | Up to 4K 3840×2160 at 30Hz |
| VGA Output | 1920×1080, 1600×1200, 1280×1024, 1280×720 and 1024×768 at up to 60Hz |
| Audio Input | 1× RCA |
| Audio Output | 1× RCA |
| Audio Compression | G.711A and G.711U |
| Two-Way Audio | Supported |
| Smart Functions | |
| Smart Detection | Face detection, face comparison, vehicle detection, temperature detection, SIP, UMD, video metadata and traffic monitoring |
| Smart by NVR | Face detection, face comparison, Smart Intrusion Prevention and Ultra Motion Detection |
| VCA Search | AcuSearch, AcuTrack, face snapshot search, face comparison search, motor vehicle search, non-motor vehicle search, human body search, people counting report and heat map |
| Face Detection by NVR | 4-channel model: Up to 4 channels with UNV face-detection cameras 8-channel model: Up to 8 channels with UNV face-detection cameras |
| Vehicle Picture Libraries | Up to 5 libraries with up to 25000 vehicle pictures in total |
| Smart Snapshot Records | Up to 500000 face snapshots and 1.5 million SIP and vehicle records |
| Storage and External Interfaces | |
| SATA | 1 SATA interface |
| Supported HDD Capacity | Up to 24TB per HDD |
| USB | Front: 1× USB 2.0 Rear: 1× USB 3.0 |
| RS485 | Not available |
| RS232 | Not available |
| Alarm Input/Output | Not available |
| POS | Supported |
| PoE | |
| PoE Ports | NVR501-04B-P4-IQ: 4× RJ45 10/100Mbps PoE ports NVR501-08B-P8-IQ: 8× RJ45 10/100Mbps PoE ports |
| PoE Power | Maximum 30W per port |
| Total PoE Budget | 4-channel model: Maximum 50W 8-channel model: Maximum 75W |
| PoE Standard | IEEE 802.3af and IEEE 802.3at |
| Power and Mechanical | |
| Power Supply | NVR501-04B-P4-IQ: DC 48V/1.35A NVR501-08B-P8-IQ: DC 52V/1.8A |
| Power Consumption Without HDD | 8W |
| Dimensions | 260 × 215 × 46.6mm (10.2 × 8.5 × 1.8in) |
| Form Factor | 1U |
| Weight Without HDD | 1kg (2.2lb) |
| Rack Mount Accessory | RM-1U-260, 1U NVR rack mount |
| Environmental and Certifications | |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | Up to 90% RH, non-condensing |
| GUI Languages | 38 languages, including English, Ukrainian, Russian, German, French, Spanish, Portuguese, Polish, Czech, Turkish, Arabic, Japanese and Korean |
| Certifications | CE, FCC, UL, RoHS and WEEE |
