UNV - NVR504-64X-IQ - 4 Hard Disks 32-Channel High Performance Intelligence Network Video Recorder
Product Overview

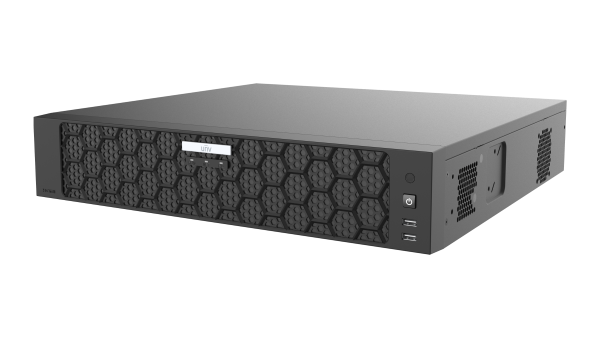

The Uniview NVR504-64X-IQ is a professional 64-channel network video recorder supporting Ultra 265, H.265, and H.264 video formats with recording resolutions up to 8MP. It provides advanced AI functions, multi-monitor output, high-throughput network connectivity, and flexible RAID storage for large surveillance installations.
The recorder supports three HDMI outputs, one VGA output, 64-channel IP video input, ANR recording reliability, cloud upgrades, and intelligent search functions including face, vehicle, behavior, people-counting, and heat-map analysis.
Key Configuration
Model: NVR504-64X-IQ | Channels: 64 IP video inputs | Recording: Up to 8MP | Storage: 4 SATA interfaces, up to 24TB per HDD, RAID 0/1/5/6/10 | Connectivity: 2 Gigabit Ethernet ports, 3 HDMI outputs, VGA, USB, RS485, and RS232 | Form Factor: 442 × 400 × 86.1mm
Key Features
- · 64-channel IP video input with Ultra 265, H.265, and H.264 support
- · Recording resolutions up to 8MP
- · Three HDMI outputs and one VGA output with HDMI up to 4K resolution
- · HDMI1/VGA, HDMI2, and HDMI3 support independent display output configurations
- · Two 10/100/1000M Ethernet interfaces with multi-access, load-balancing, and network fault-tolerance modes
- · Four SATA interfaces supporting HDDs up to 24TB each
- · RAID 0, 1, 5, 6, and 10 support with hot-swap capability
- · AI functions including face detection, face comparison, SIP, UMD, people counting, plate comparison, and video metadata
- · AcuSearch, AcuTrack, face, vehicle, human-body, behavior, people-counting, and heat-map search
- · ANR technology, cloud upgrade support, 384Mbps network bandwidth, and 4K HDMI display
Technical Context
The recorder combines camera-side analytics with NVR-based processing. Depending on the connected cameras and selected analytic mode, it can process face recognition, smart intrusion prevention, ultra-motion detection, people counting, plate comparison, traffic monitoring, video metadata, and behavior searches. RAID support and ANR help maintain recording availability and data resilience in large multi-camera deployments.
Installation Notes
Install the recorder in a ventilated rack or equipment cabinet with adequate clearance around the fan and radiator. It operates from AC 100–240V at -10°C to 50°C with up to 90% non-condensing humidity. Install compatible SATA surveillance HDDs and configure the required RAID level before recording. Use the independent HDMI/VGA outputs to connect local monitoring displays and segment network traffic across the two Gigabit interfaces.
| Product Information | |
| Model | NVR504-64X-IQ |
| Product Type | 64-Channel Intelligent Network Video Recorder |
| Video Compression | Ultra 265, H.265 and H.264 |
| IP Video Input | 64 channels |
| Decoding and Recording | |
| Decoding Capability | H.265/H.264: 6×4K@30, 8×6MP@30, 10×5MP@30, 12×4MP@30, 16×3MP@30, 25×1080p@30, 50×720p@30 or 100×D1@30 |
| Maximum Recording Resolution | Up to 8MP |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF and CIF |
| Concurrent Playback | 32 channels |
| Synchronous Local Playback | 16 channels |
| Snapshot | 1 channel |
| ANR | Supported for storage reliability during network interruptions |
| Network | |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Users | Up to 32 users can be added Up to 128 remote users |
| Network Interfaces | 2× RJ45 10/100/1000Mbps self-adaptive Ethernet ports |
| Network Working Mode | Multi-access, load balancing and network fault tolerance |
| Protocols | TCP/IP, SMTP, NFS, 802.1x, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, SNMP, IPv4 and IPv6 |
| Browser Support | Plugin: IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Plugin-free: Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
| Video and Audio Output | |
| Video Outputs | 3× HDMI and 1× VGA HDMI1/VGA, HDMI2 and HDMI3 support independent output |
| HDMI Output | Up to 4K 3840×2160 at 60Hz |
| VGA Output | 1920×1080, 1920×1080, 1280×1024, 1280×720 and 1024×768 at up to 60Hz |
| HDMI Standard | HDMI 2.0 |
| Audio Input | 1× RCA |
| Audio Output | 3× RCA |
| Audio Compression | G.711A and G.711U |
| Two-Way Audio | 1 channel via RCA audio input and output |
| Smart Functions | |
| Smart Detection | Face detection, face comparison, vehicle detection, temperature detection, Smart Intrusion Prevention, Ultra Motion Detection, people counting, video metadata and traffic monitoring |
| Smart by IPC | All channels, up to 32 images per second in total |
| Smart by NVR | Face detection, face comparison, UMD, people counting, SIP and plate comparison |
| VCA Search | Face snapshot, face comparison, behavior, motor vehicle, non-motor vehicle, human body, general search, people counting report, heat map, SmartSearch+, AcuSearch and AcuTrack |
| Face Detection by NVR | Up to 16 channels with standard cameras, or all channels with UNV SIP/UMD cameras |
| Plate Comparison | Up to 4 channels with standard cameras |
| Plate Libraries | Up to 5 libraries with up to 25000 plates in total |
| Alarm Events | Defocus, scene change, object left behind, object removed, auto tracking, motion, tampering, human body, video loss, audio and alarm input detection |
| Alert Events | IP conflict, network disconnection, disk offline/abnormal, illegal access, low/full disk, recording/snapshot abnormal, high CPU temperature, high motherboard temperature, array damaged and array degraded |
| Storage and External Interfaces | |
| SATA | 4 SATA interfaces |
| Supported HDD Capacity | Up to 24TB per HDD |
| Disk Group | Supported |
| RAID | RAID 0, 1, 5, 6 and 10 |
| USB | Front: 2× USB 2.0 Rear: 2× USB 3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm Input | 16 channels |
| Alarm Output | 10 channels |
| eSATA / miniSAS | Not available |
| Power and Mechanical | |
| Power Supply | AC 100–240V |
| Power Consumption Without HDD | 50W |
| Cooling | Fan and radiator |
| Dimensions | 442 × 400 × 86.1mm |
| Form Factor | Standard rackmount chassis |
| Buzzer | Supported |
| Environmental and Certifications | |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | Up to 90% RH, non-condensing |
| Certifications | CE, FCC, UL, RoHS and WEEE |
