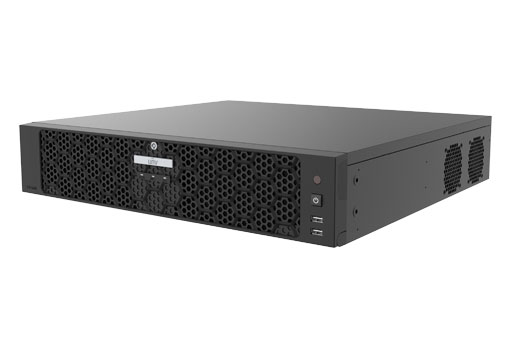

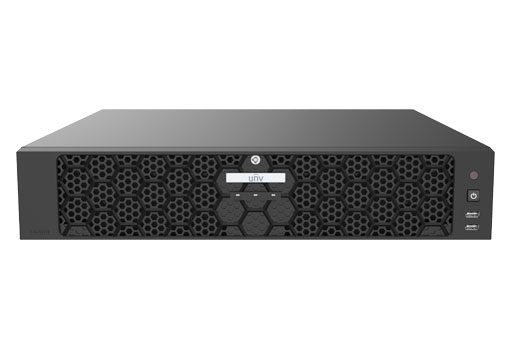

Uniview - NVR508-128E-R - 4K Network Video Recorder with 128 Channel
Part number:
NVR508-128E-R
Price:
4K Network Video Recorder with 128 Channel
Features:
- Support Ultra 265/H.265/H.264 video formats
- 32/64/128‑channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
- Up to 32 Megapixels resolution recording
- Support N+1 Hot spare
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- Redundant power supply optional
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR508‑32E‑R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30 NVR508‑64E‑R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30 NVR508‑128E‑R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@25, 72 x 720P@30, 128 x D1 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | 384Mbps |
| OutgoingBandwidth | 384Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 |
| Browser(Plugin) | NVR508‑32E‑R/NVR508‑64E‑R:IE(IE10/11)for Windows, Firefox(version 52.0 and above)for Windows, Chrome(version 45 and above)for Windows, Edge(version 79 and above)for Windows NVR508‑128E‑R:Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | NVR508‑32E‑R/NVR508‑64E‑R:HDMI1, HDMI2:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz NVR508‑128E‑R:HDMI1, HDMI2:4K(3840x2160)/60Hz,4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGAOutput | VGA1, VGA2:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCAAudioOutput | 2‑ch |
| LiveviewDisplay | NVR508‑32E‑R:1/4/6/8/9/16/25/32 NVR508‑64E‑R/NVR508‑128E‑R:HDMI1/VGA1:1/4/6/8/9/16/25/36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36 |
| CorridorModeScreen | 3/4/5/7/9/10/12/16/32 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 16‑ch snapshot, up to 1080P resolution |
| Recording | Description |
| RecordingResolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | 16‑ch |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map |
| SmartbyIPC | All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VehiclePictureLibrary | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| GUILanguage | Description |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | Description |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| DiskGroup | Support |
| DiskArrayType | RAID 0, 1, 5, 6, 10 |
| HotSwap | Support |
| ExternalInterface | Description |
| NetworkInterface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| AlarmIn | 16‑ch |
| AlarmOut | 10‑ch |
| eSATA | 1 |
| PowerOutput | 12V |
| PowerSupply | AC 100 ～ 240 V |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 55 °C (14 °F ~ 131 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 50W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤ 6Kg (13.23lb) |
| Dimensions | 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
