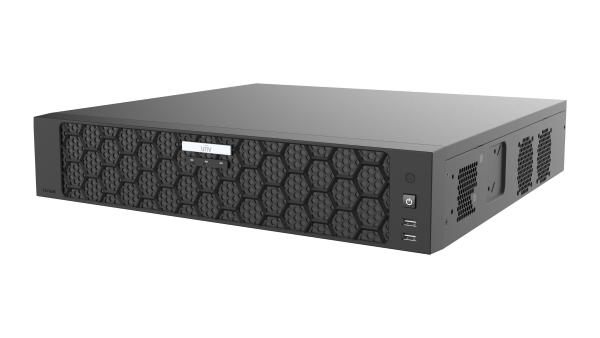

UNV - NVR508-32X-IQ - 8 Hard Disks 32-Channel High Performance Intelligence Network Video Recorder
Product Overview
The Uniview NVR508-32X-IQ is a professional 32-channel network video recorder supporting Ultra 265, H.265, and H.264 video formats with recording resolutions up to 8MP. It provides advanced AI functions, multi-monitor output, high-throughput network connectivity, and expanded RAID storage for demanding surveillance installations.
The recorder supports three HDMI outputs, one VGA output, ANR recording reliability, cloud upgrades, and intelligent search functions including face, vehicle, behavior, people-counting, and heat-map analysis.
Key Configuration
Model: NVR508-32X-IQ | Channels: 32 IP video inputs | Recording: Up to 8MP | Storage: 8 SATA interfaces, up to 24TB per HDD, RAID 0/1/5/6/10 | Connectivity: 2 Gigabit Ethernet ports, 3 HDMI outputs, VGA, USB, RS485, and RS232 | Form Factor: 442 × 400 × 86.1mm
Key Features
- · 32-channel IP video input with Ultra 265, H.265, and H.264 support
- · Recording resolutions up to 8MP
- · Three HDMI outputs and one VGA output with HDMI up to 4K resolution
- · HDMI1/VGA, HDMI2, and HDMI3 support independent display output configurations
- · Two 10/100/1000M Ethernet interfaces with multi-access, load-balancing, and network fault-tolerance modes
- · Eight SATA interfaces supporting HDDs up to 24TB each
- · RAID 0, 1, 5, 6, and 10 support with hot-swap capability
- · AI functions including face detection, face comparison, SIP, UMD, people counting, plate comparison, and video metadata
- · AcuSearch, AcuTrack, face, vehicle, human-body, behavior, people-counting, and heat-map search
- · ANR technology, cloud upgrade support, 512Mbps network bandwidth, and 4K HDMI display
Technical Context
The recorder combines camera-side analytics with NVR-based processing. Depending on the connected cameras and selected analytic mode, it can process face recognition, smart intrusion prevention, ultra-motion detection, people counting, plate comparison, traffic monitoring, video metadata, and behavior searches. Eight SATA bays with RAID support provide flexible storage expansion and data resilience for large multi-camera deployments.
Installation Notes
Install the recorder in a ventilated rack or equipment cabinet with adequate clearance around the fan and radiator. It operates from AC 100–240V at -10°C to 50°C with up to 90% non-condensing humidity. Install compatible SATA surveillance HDDs and configure the required RAID level before recording. Use the independent HDMI/VGA outputs to connect local monitoring displays and segment network traffic across the two Gigabit interfaces.
| Product Information | |
| Model | NVR508-32X-IQ |
| Product Type | 32-Channel Intelligent Network Video Recorder |
| Video Compression | Ultra 265, H.265 and H.264 |
| IP Video Input | 32 channels |
| Decoding and Recording | |
| Decoding Capability | H.265/H.264: 6×4K@30, 8×6MP@30, 10×5MP@30, 12×4MP@30, 16×3MP@30, 25×1080p@30, 50×720p@30 or 100×D1@30 |
| Maximum Recording Resolution | Up to 8MP |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF and CIF |
| Concurrent Playback | 32 channels |
| Synchronous Local Playback | 16 channels |
| Snapshot | 1 channel |
| ANR | Supported for storage reliability during network interruptions |
| Network | |
| Incoming Bandwidth | 512Mbps |
| Outgoing Bandwidth | 512Mbps |
| Users | Up to 128 users can be added Up to 128 remote users |
| Network Interfaces | 2× RJ45 10/100/1000Mbps self-adaptive Ethernet ports |
| Network Working Mode | Multi-access, load balancing and network fault tolerance |
| Protocols | TCP/IP, SMTP, NFS, 802.1x, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, SNMP, IPv4 and IPv6 |
| Browser Support | Plugin: IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Plugin-free: Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
| Video and Audio Output | |
| Video Outputs | 3× HDMI and 1× VGA HDMI1/VGA, HDMI2 and HDMI3 support independent output |
| HDMI Output | Up to 4K 3840×2160 at 60Hz |
| VGA Output | 1920×1080, 1920×1080, 1280×1024, 1280×720 and 1024×768 at up to 60Hz |
| HDMI Standard | HDMI 2.0 |
| Audio Input | 1× 3.5mm input |
| Audio Output | 3× RCA |
| Audio Compression | G.711A and G.711U |
| Two-Way Audio | 1 channel via RCA audio input and output |
| Smart Functions | |
| Smart Detection | Face detection, face comparison, Smart Intrusion Prevention, Ultra Motion Detection, people counting, video metadata, traffic monitoring, temperature detection and vehicle detection |
| Smart by IPC | All channels, up to 32 images per second in total |
| Smart by NVR | Face detection, face comparison, UMD, people counting, SIP and plate comparison |
| VCA Search | Face snapshot, face comparison, behavior, motor vehicle, non-motor vehicle, human body, general search, people counting report, heat map, SmartSearch+, AcuSearch and AcuTrack |
| Face Detection by NVR | Up to 16 channels with standard cameras, or all channels with UNV SIP/UMD cameras |
| Plate Comparison | Up to 4 channels with standard cameras |
| Plate Libraries | Up to 5 libraries with up to 25000 plates in total |
| Alarm Events | Defocus, scene change, object left behind, object removed, auto tracking, motion, tampering, human body, video loss, audio and alarm input detection |
| Alert Events | IP conflict, network disconnection, disk offline/abnormal, illegal access, low/full disk, recording/snapshot abnormal, high CPU temperature, high motherboard temperature, array damaged and array degraded |
| Storage and External Interfaces | |
| SATA | 8 SATA interfaces |
| Supported HDD Capacity | Up to 24TB per HDD |
| Disk Group | Supported |
| RAID | RAID 0, 1, 5, 6 and 10 |
| USB | Front: 2× USB 2.0 Rear: 2× USB 3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm Input | 16 channels |
| Alarm Output | 10 channels |
| eSATA / miniSAS | Not available |
| Power and Mechanical | |
| Power Supply | AC 100–240V |
| Power Consumption Without HDD | 50W |
| Cooling | Fan and radiator |
| Dimensions | 442 × 400 × 86.1mm |
| Form Factor | Standard rackmount chassis |
| Buzzer | Supported |
| Environmental and Certifications | |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | Up to 90% RH, non-condensing |
| Certifications | CE, FCC, UL, RoHS and WEEE |
