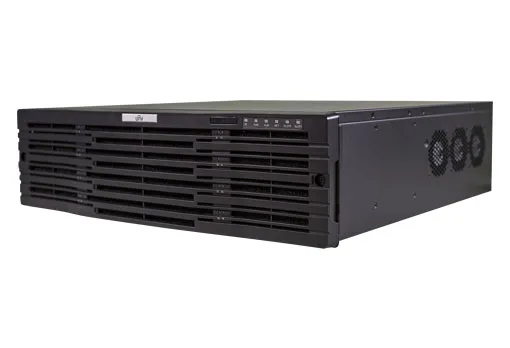

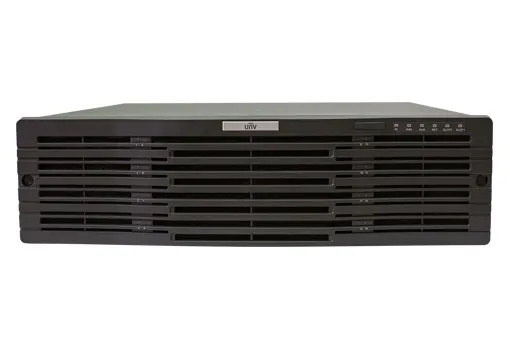

Uniview - NVR516-64 - 16 HDDs 64-ch 3U Network Video Recorder
Product Overview
Uniview 16 HDDs 64-ch 3U Network Video Recorder supports 64-channel IP video input with Ultra 265, H.265, and H.264 video formats and recording resolution up to 12MP. It features 16 SATA HDD bays supporting up to 10TB per disk with RAID 0, 1, 5, 6, 10, 50, 60 configurable, HDD hot swap, and 2 miniSAS interfaces. The recorder includes 2 HDMI outputs (up to 4K) and 1 VGA output with independent output capability.
Key Configuration
- • 64-channel IP video input
- • 16 SATA interfaces; up to 10TB per HDD; HDD hot swap supported
- • RAID levels: 0, 1, 5, 6, 10, 50, 60 configurable
- • 2 miniSAS interfaces; 2 optional decoding card slots (up to 12-ch HDMI total)
- • Video outputs: 2-ch HDMI (4K@30Hz), 1-ch VGA; independent output
Key Features
• Third-party IP cameras supported with ONVIF Profiles S, G, C, Q, A, T
• Redundant power supply optional; 12V power output support
• ANR technology for storage reliability during network disconnection; N+1 hot spare support
• Cloud upgrade support
Technical Context
Recording resolutions: up to 12MP through CIF (exact decoding capability, bandwidth specifications, protocols, frame rates, smart features, alarm specifications, and detailed interface counts were not provided in the input).
| Model | NVR516-64 | NVR516-128 |
| Video/Audio Input | ||
| IP Video Input | 64-ch | 128-ch |
| Two-way Audio Input | 1-ch, BNC | |
| Network | ||
| Incoming Bandwidth | 384Mbps | 512Mbps |
| Outgoing Bandwidth | 384Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI1： 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, BNC | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 | |
| Hard Disk | ||
| SATA | 16 SATA interfaces | |
| Capacity | up to 10TB for each HDD | |
| eSATA | 1 eSATA interface | |
| miniSAS | 2 miniSAS ports | |
| Smart | ||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | |
| VCA Search | Face search, Behavior search | |
| Statistical Analysis | People counting | |
| Disk Array | ||
| Array Type | RAID 0/1/5/6/10/50/60 | |

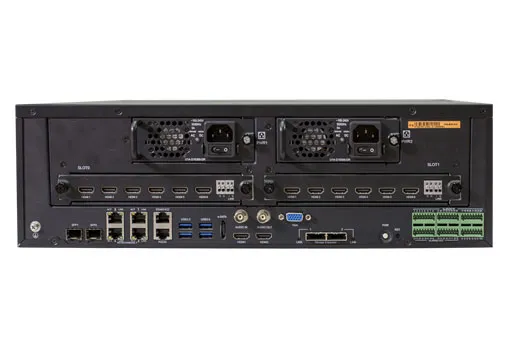

| External Interface | ||
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface | |
| Serial Interface | 1 x RS232, 1 x RS485 | |
| USB Interface | Rear panel: 4 x USB3.0 | |
| Alarm In | 24-ch | |
| Alarm Out | 8-ch | |
| Decoding Card (optional) | 2 slots (4-ch HDMI or 6-ch HDMI outputs per card) | |
| Power Output | 12V | |
| General | ||
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 50 W( without HDD ) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Chassis | 19-inch rack-mounted 3U chassis | |
| Dimensions | 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") | |
| Weight ( without HDD ) | ≤ 10 Kg ( 22.05 lb ) | |
