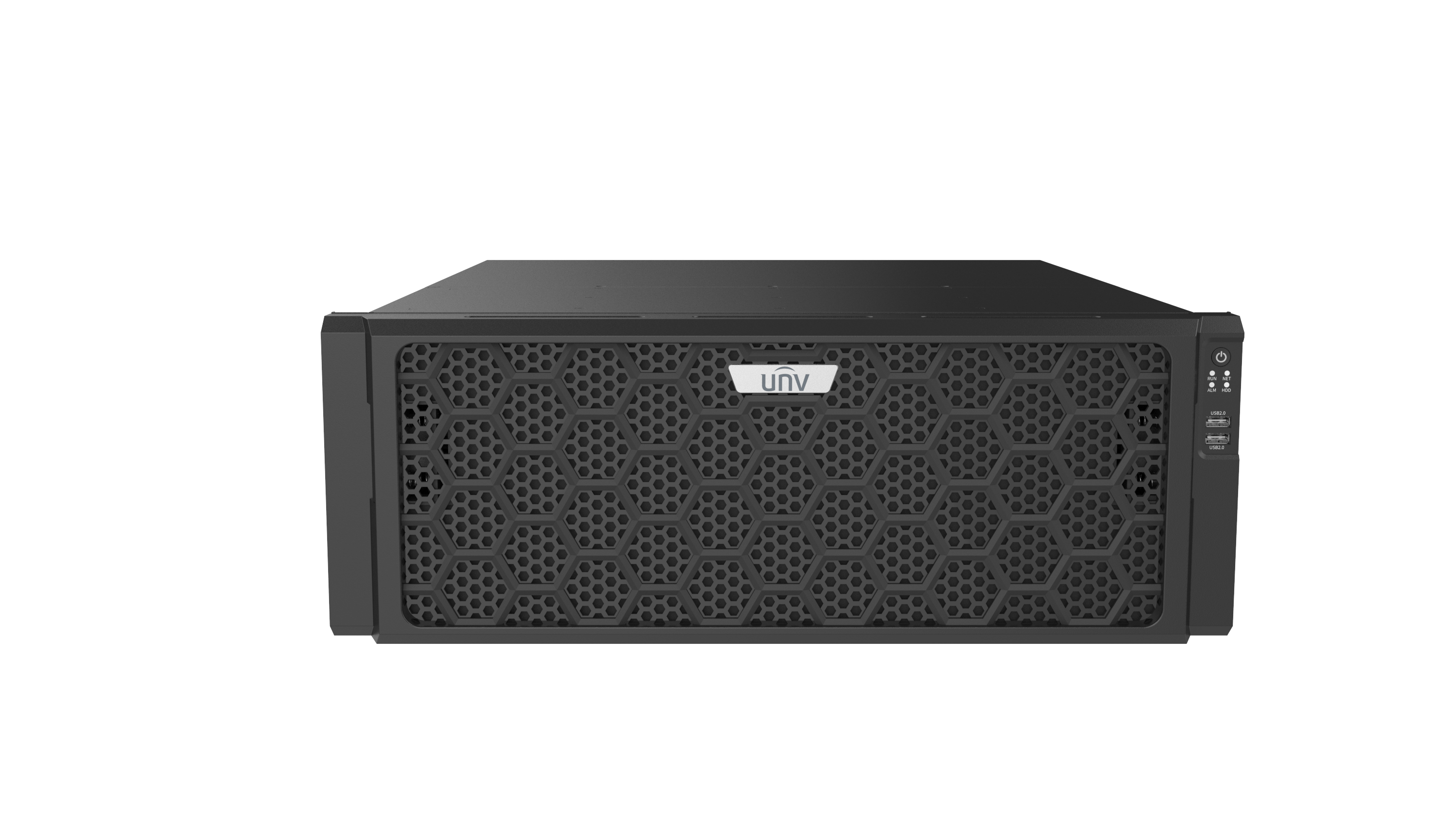

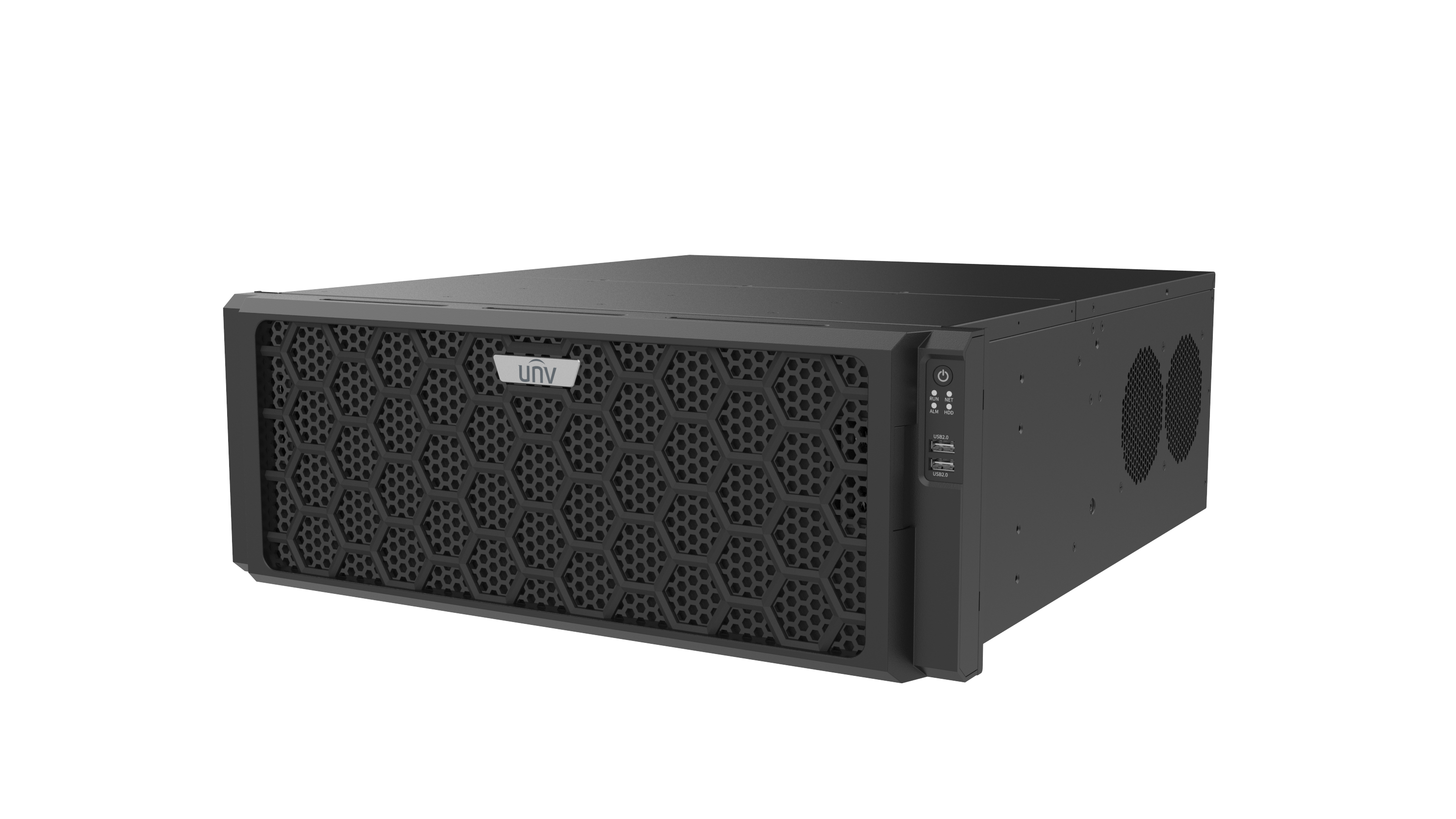

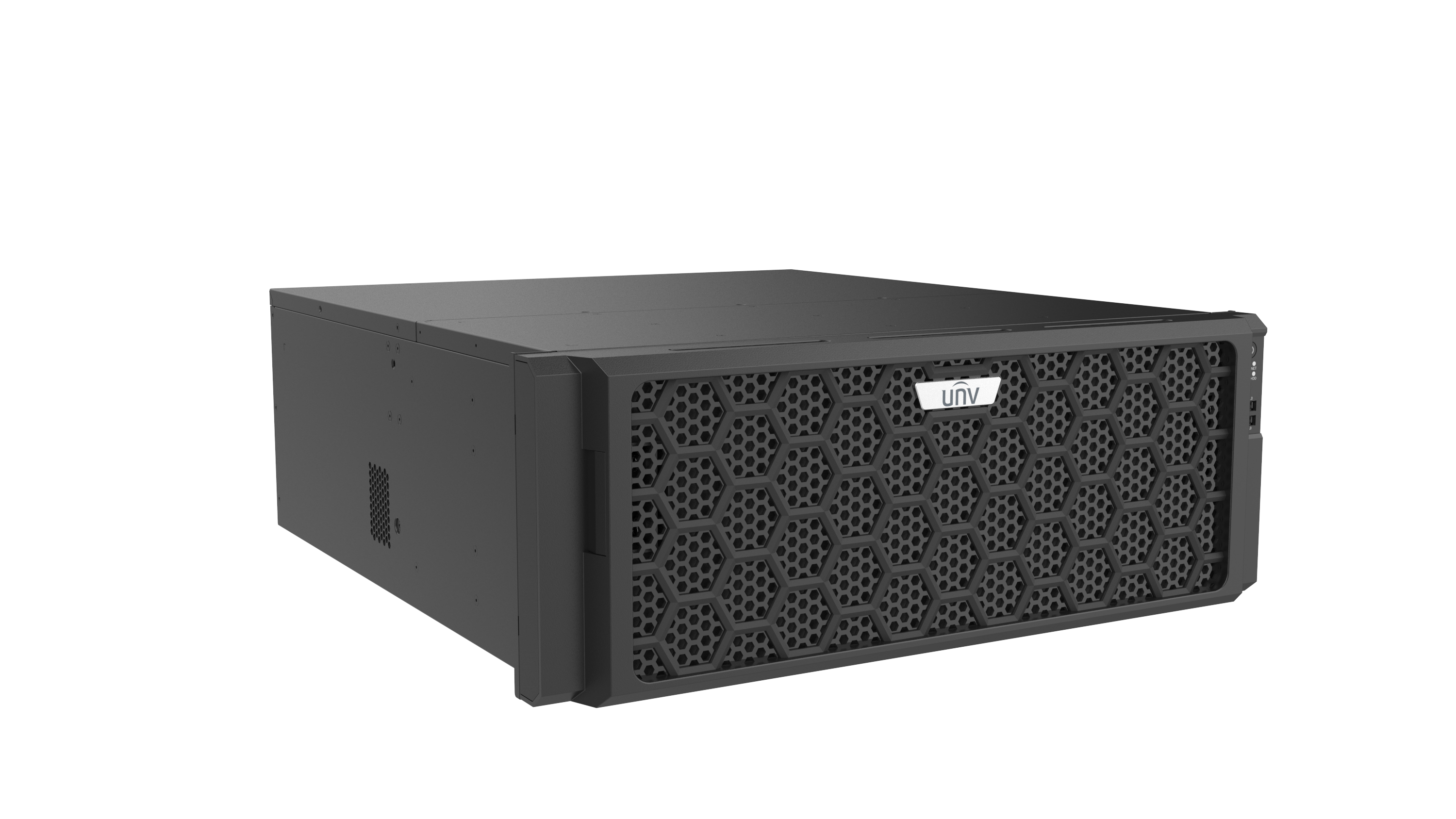

UNV - NVR524-256E-IM - 4K Network Video Recorder
• Support Ultra 265/H.265/H.264 video formats
• 128/256-channel input
• Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680x4320) resolution
• HDMI1/ VGA1 and HDMI2/VGA2 independent outputs provided
• Up to 32 Megapixels resolution recording
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• Support 12V power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare
| Decoding | |
|---|---|
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30, 128 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8640 pixels in length or width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 640 Mbps |
| Outgoing Bandwidth | 640 Mbps |
| Max Users Can Be Added | 128 |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Browser (Plugin-Free) | Windows/MAC/Linux: IE not supported, Firefox (58.0+), Chrome (57.0+), Edge (16+), Safari (11+) |
| Video/Audio Input | |
| IP Video Input | 256 channels |
| RCA Audio Input | 1 channel |
| Video Output | Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output |
| HDMI Output Resolutions | HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output Resolutions | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI Standard | HDMI1: 2.1, HDMI2: 2.0 |
| RCA Audio Output | 2 channels |
| Liveview Display Layouts | 1/4/6/8/9/16/25/36/64 |
| Default Number of Live Screens | 64 |
| Corridor Mode Screen Layouts | 3/4/5/7/9/10/12/16/32 |
| Playback Screen Layouts | 1/4/9/16 |
| Corridor Mode Screen for Playback | 1/3 |
| Two-way Audio | 1 channel, RCA (using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Recording | |
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Number of Concurrent Playback | 32 channels |
| Synchronous Playback in Local | 16 channels |
| Smart Features | |
| VCA Detection by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | All channels (up to 32 images/s in total) Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | |
| General Alarm | Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, People Present Alarm |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| Hard Disk | |
| SATA Interfaces | 24 |
| Capacity per HDD | Up to 16 TB (max capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |
| External Interface | |
| Network Interface | 2 x RJ45 10/100/1000 Mbps self-adaptive Ethernet |
| Network Working Mode | Multi-access, load balance, network fault-tolerance |
| USB Ports | Front panel: 2 x USB 2.0, Rear panel: 2 x USB 3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm Input | 16 channels |
| Alarm Output | 10 channels |
| Power Output | 12 V |
| Power Supply | AC 100 to 240 V |
| Buzzer | Support |
| Power Switch | Support |
| Environment | |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 50W |
| Heat Dissipation | Fan, Radiator |
| Dimensions | |
| Weight (without HDD) | ≤ 10 kg (22.05 lb) |
| Height | 4U |
| Dimensions (W x D x H) | 485 mm × 539 mm × 175 mm (19.1" × 21.2" × 6.9") |
| Certification | |
| General Certification | CE; FCC; RoHS; WEEE |
| CE Compliance | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC Compliance | Part15 Subpart B |
| GUI Language | |
| Supported Languages | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Compliance | |
| NDAA Compliant | Support |
This is an enterprise-grade 128-channel network video recorder. It supports Ultra 265, H.265, and H.264 video compression and offers high decoding performance, such as 8 channels of 4K video at 30 fps. It has an incoming/outgoing network bandwidth of 640 Mbps. The device features 24 hot-swappable SATA hard drive bays for extensive storage and includes 16 alarm inputs and 10 alarm outputs.
For video output, it provides two HDMI ports (one supporting 8K resolution) and two VGA ports for multi-screen monitoring. It can accept video input from up to 128 IP cameras. The NVR supports advanced video analytics including Face Detection, Smart Intrusion Prevention, and Temperature Detection. It is designed for indoor use within a temperature range of -10°C to 55°C. It is powered by an AC 100-240V source and consumes a maximum of 50 watts without hard drives installed.
