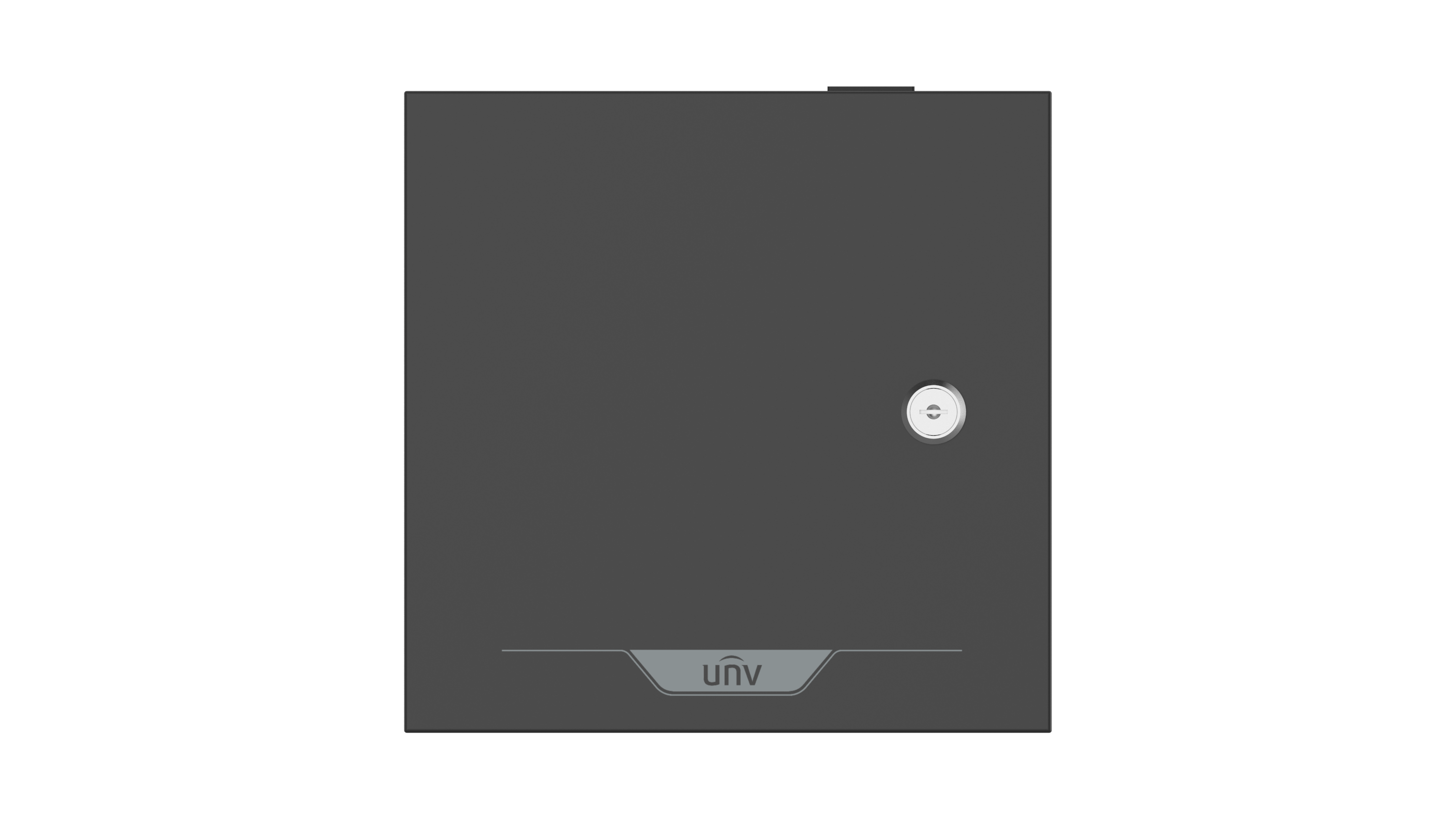

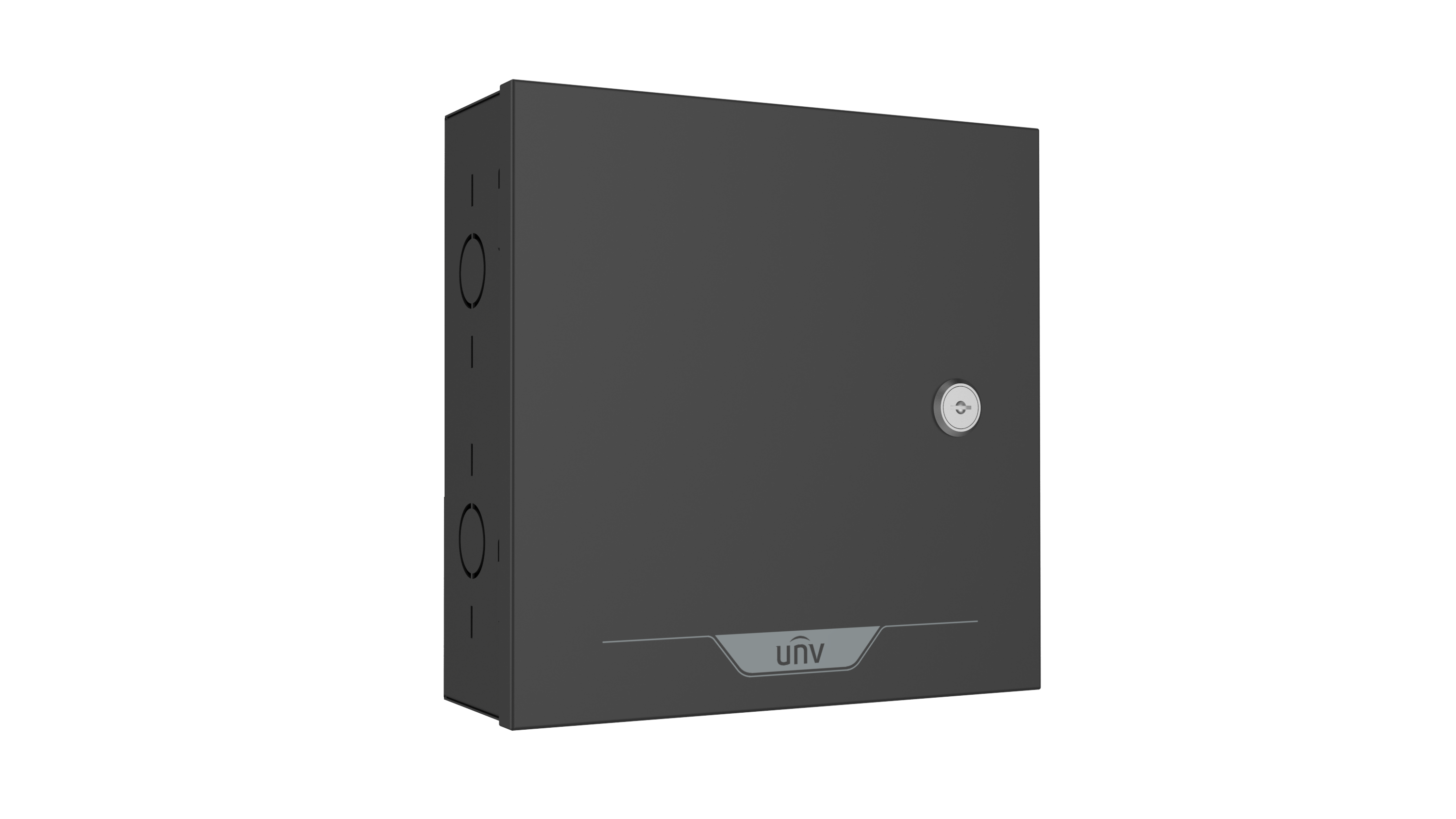

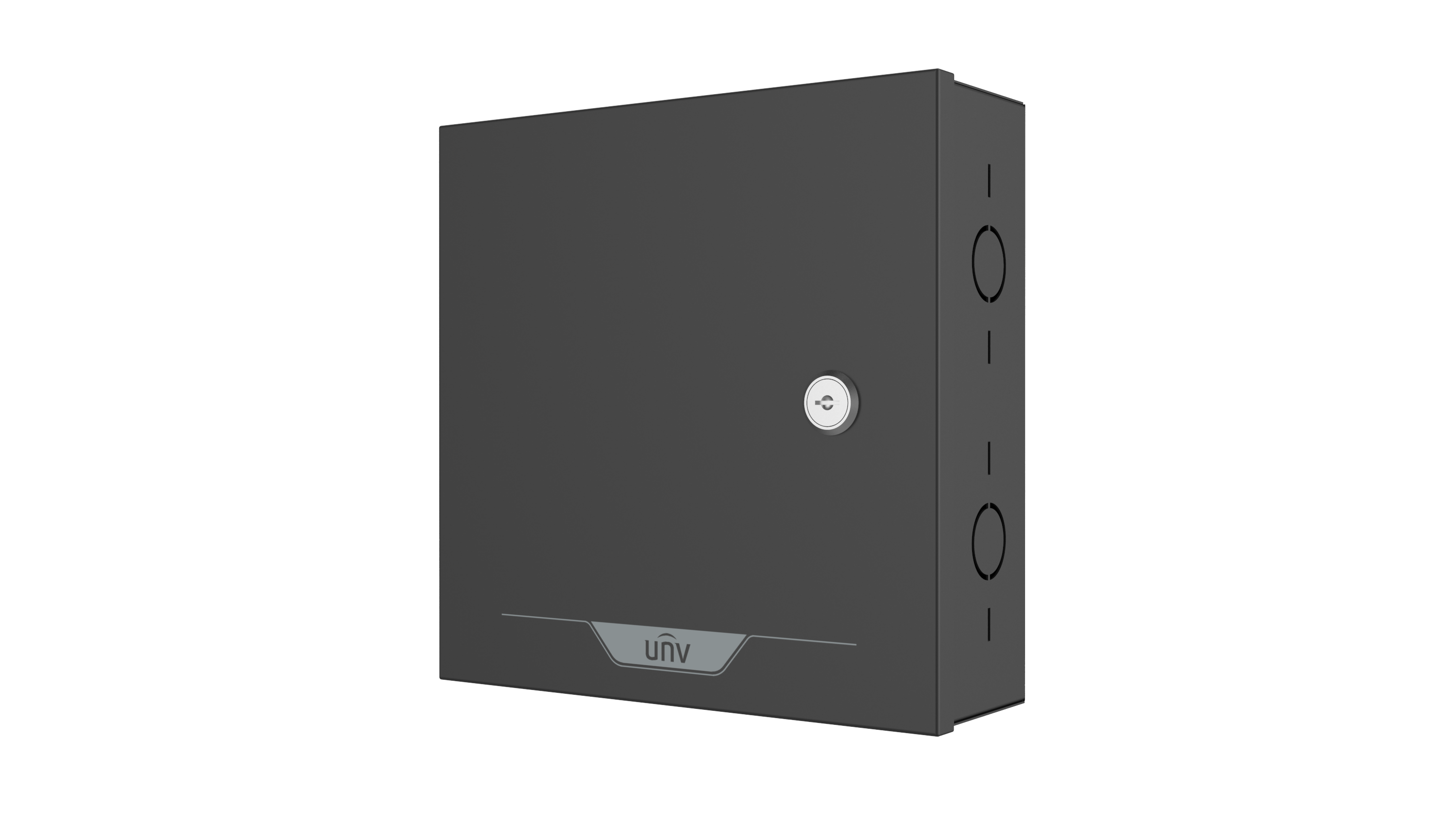

UNV - OER-502 - Two Doors Access Controller
• ARM processor provides high concurrent processing speed.
• Supports network transparent transmission.
• Supports fire alarm linkage for enhanced security.
• Supports multiple authentication methods, including card, password, card & password, and QR code.
• Supports up to 20,000 cards and 50,000 events storage.
• Supports connecting to EZAccess platform (Only permission issuance is supported), UNV Guard server.
• Supports device configuration through the web interface.
• Supports door magnet detection.
• Supports local saving during the network interruption and resumes interrupted data when the network reconnects.
• Supports multi-door interlock, anti-pass back, and door opening with duress password.
| Specification Index | |
|---|---|
| Card Capacity | Common card + personnel password: 22,000 Duress card + duress password: 1,000 Other cards: 100 |
| Event Capacity | 50,000 |
| Time Template | 256 |
| Holiday Template | 256 |
| Check Template | Supports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period |
| Basic Business | |
| Communication Mode | TCP/IP |
| Hardware Specification | |
| Network Interface | 1 x 100Mbps Ethernet interface |
| Number Of Controllable Doors | 2 |
| Wiegand Interface | 4 x Wiegand input |
| RS485 Interface | 1 |
| IO Input | 1 x fire input, 4 x case input |
| IO Output | 4 |
| Power Output | 1 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A) |
| Door Lock Interface | 2 x door lock control (NC+/NO+/COM) 2 x door magnet, 2 x exit button |
| Tamper Button | Not support |
| Application | Indoor |
| Operating Temperature | -30°C to 65°C |
| Rated Input Voltage | AC100V to AC240V (50/60Hz) |
| Spare Power Supply | DC12V/7AH, user-prepared |
| Air Circuit Breaker | / |
| Mount Method | Wall mount |
| Indicator | Power indicator: Steady red when the device is connected to power Operation indicator: Blinks green when the operation is normal Door lock indicator: Steady green when the lock is open Fault indicator 485 indicator Charging indicator Network indicator |
| Dimensions (L x W x H) | 230 mm × 227.8 mm × 75.8 mm |
| Weight | 2100 g |
| Compliance | |
| NDAA Compliant | Support |
This is a two-door access control panel designed for indoor wall-mount installation. It manages access for up to two doors and supports a capacity of 22,000 common access cards and passwords. It communicates with the central system via a 100Mbps Ethernet interface (TCP/IP).
For peripherals, it provides two Wiegand interfaces (one per door) for connecting card readers, an RS485 communication port, and includes 5 general-purpose input/output (I/O) terminals for devices like fire alarms, door contacts, and exit buttons. It supplies DC12V power for connected door locks and readers, with a maximum current of 5A for each lock. The panel operates within a temperature range of -30°C to 65°C and is powered by a standard AC 100-240V input, with support for an external 12V/7AH battery as a backup.
