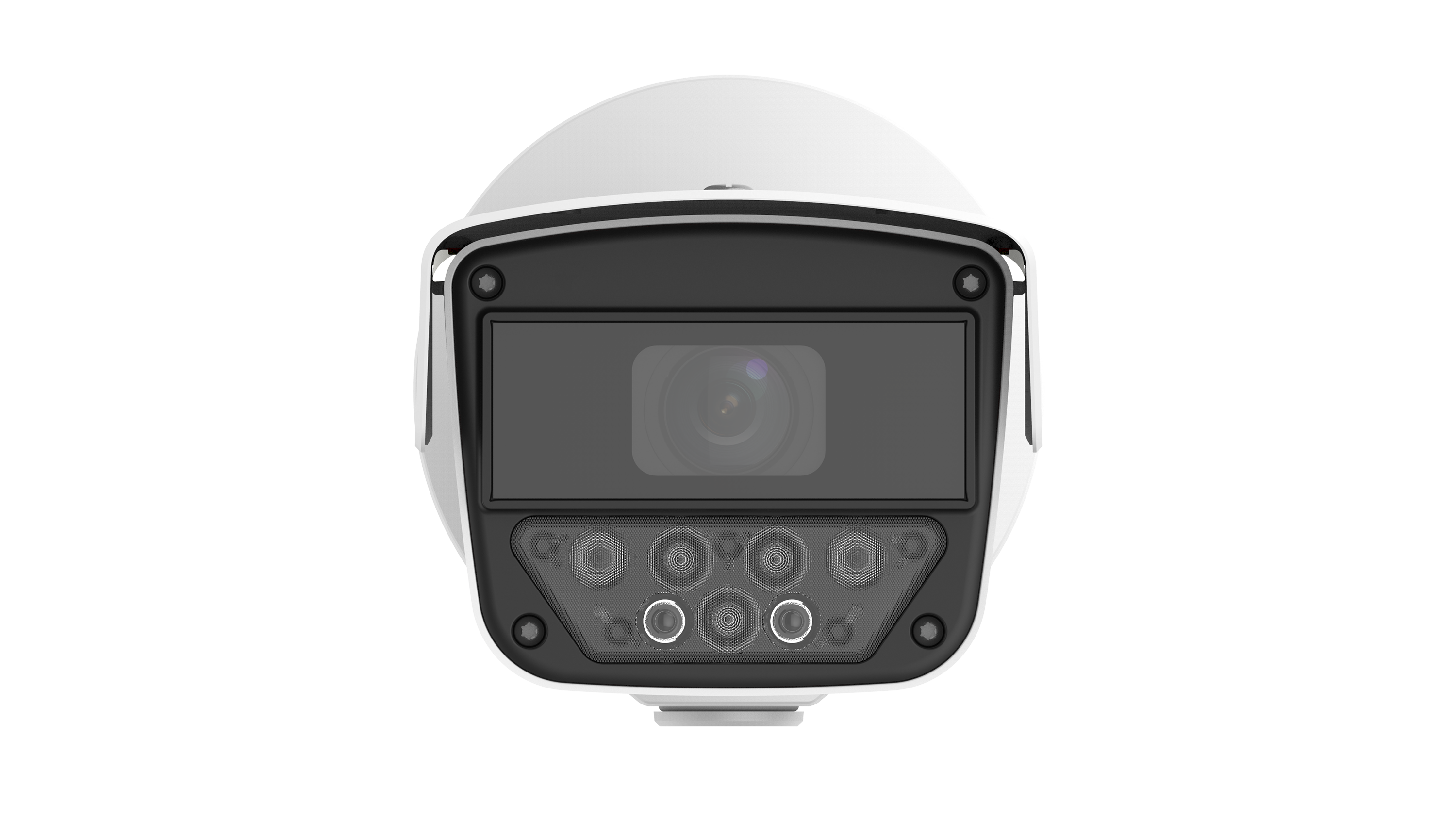

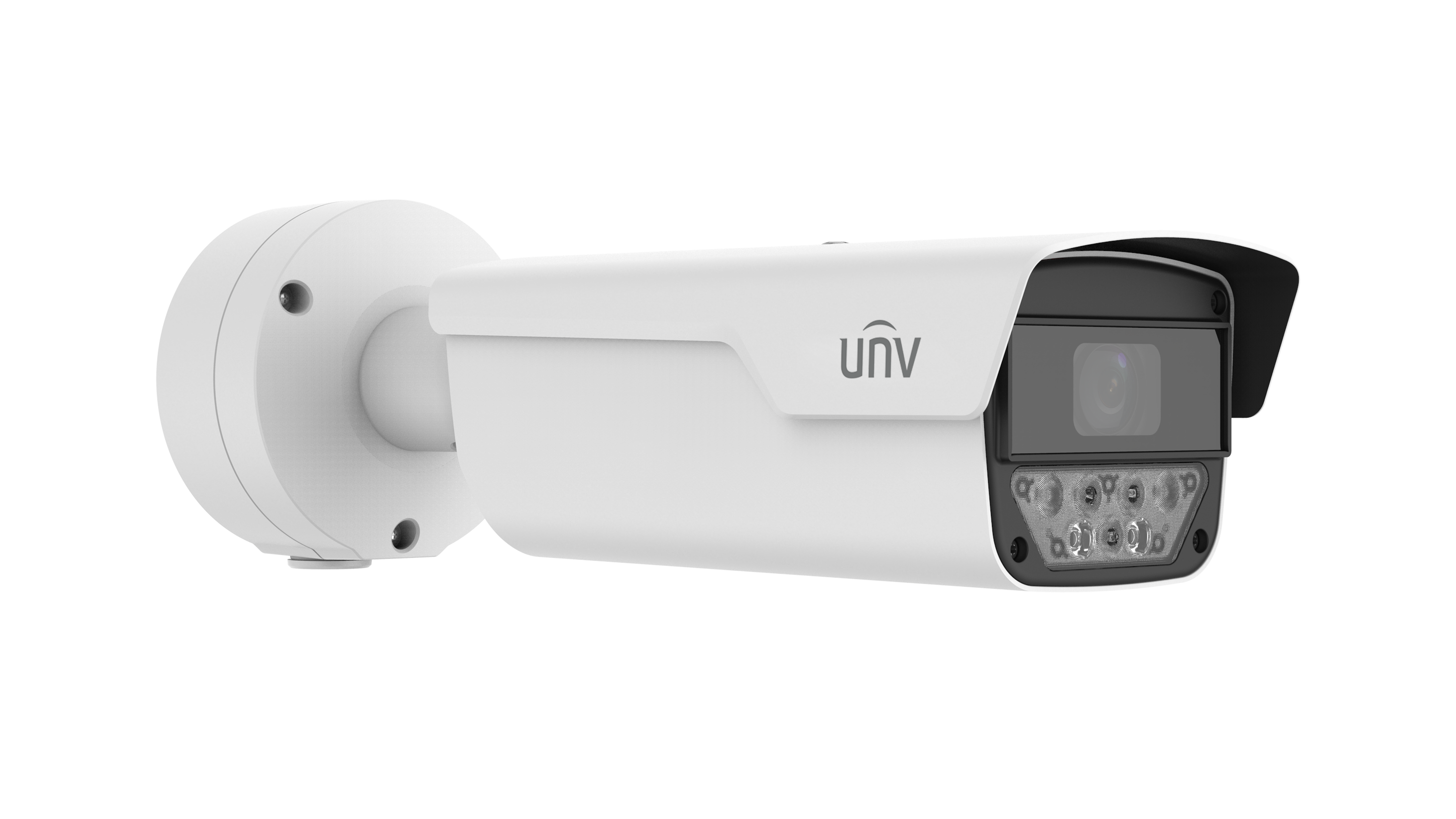

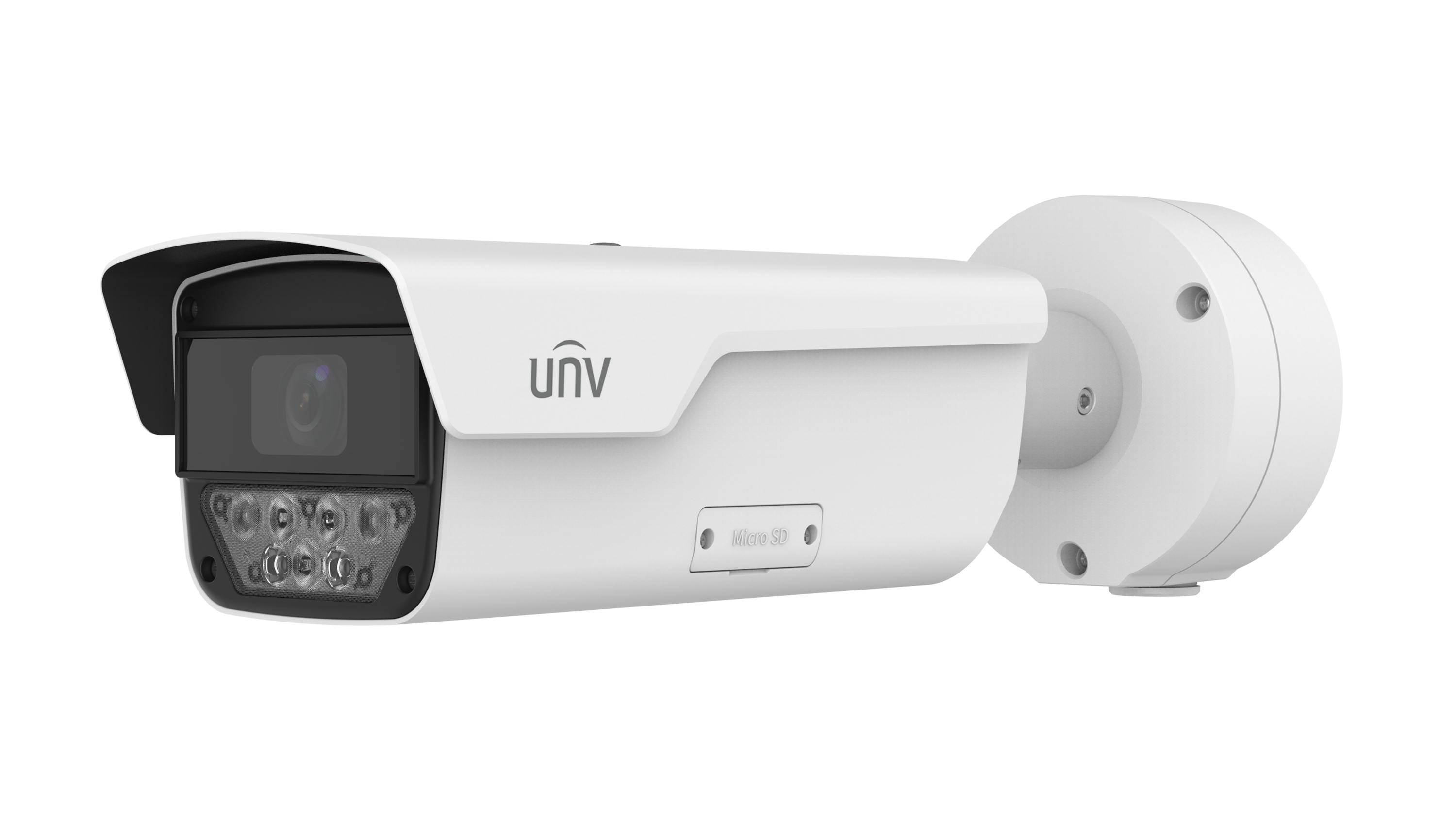

UNV - PKC2641-Z100-P - 4MP Long Range White Light LPR 10-50mm
• 1/1.8" progressive scan CMOS.
• Up to 2688 × 1520 resolution with real-time video.
• Supports Wise-ISP for enhanced image quality.
• Automatic gain control, white balance, and WDR for various light conditions.
• Video frame rate upgraded to 60 fps.
• Built-in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries.
• Supports plate allowlist and blocklist configuration.
• Supports Micro SD cards of up to 512GB.
• IP67 and IK10 protection.
| Camera | |
|---|---|
| Sensor | 1/1.8-inch 4MP CMOS |
| Focal Length | 10 to 50mm |
| Shutter | Auto, range: 1/500 to 1/100000s |
| Minimum Illumination | 0.002lux (F1.7) |
| Field of View (FOV) | Horizontal: 34.3° to 8.7° Vertical: 19.9° to 4.8° Diagonal: 40.5° to 9.8° |
| Wide Dynamic Range (WDR) | 120 dB |
| Signal-to-Noise Ratio (S/N) | > 50 dB |
| Image | |
| Image Collection Format | 2688*1520@60, 2688*1520@50, 2688*1520@30 (default), 2688*1520@25 |
| Frame Rate | 60, 50, 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video Compression | H.264 (default), H.265 |
| Region of Interest (ROI) | Supports up to 8 regions |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Digital Noise Reduction | 3D DNR |
| Video OSD | Supports 8 overlay areas (date, time, date & time, zoom ratio, custom content) |
| Image OSD | Supports 8 overlay areas (time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom content (3 items), location) |
| Display Parameters | |
| Resolution | Main stream: 2688*1520, 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Smart Features | |
| Application Scenario | ≤ 80km/h for regular roads; camera with focal length of 10 to 50mm can be used for regular roads |
| Vehicle Detection Mode | Supports video detection |
| License Plate Recognition | Supports recognition of license plates with numbers and letters by default |
| List Configuration | Supports allowlist and blocklist (20,000 items each) with import/export/add/delete operations |
| Barrier Opening Policy | Open barrier only for recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on allowlist Open barrier for vehicles not on blocklist Configurable Boolean output ID |
| Storage | |
| Edge Storage | Supports ANR with a Micro SD card, up to 512GB |
| Structure | |
| Illumination | Built-in integrated illumination module (5 warm light LEDs), 50m illumination distance, automatic on/off control |
| Bracket | 3-axis mounting bracket |
| Junction Box | Comes with a junction box for storing tail cable |
| Network | |
| Protocols | IGMP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4 |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), SDK, API |
| Interface | |
| Network Interface | 1 × 10M/100M RJ45 |
| Serial Port | 2 × RS485 |
| Boolean Output | 2 relay outputs (withstand voltage: AC 125V/0.3A, DC 30V/1A) |
| Boolean Input | 2 x input (supports level up to DC 5V and switch signal) |
| Audio Interface | 1 × audio input, 1 × audio output |
| Storage Interface | 1 × Micro SD card slot |
| Reset Button | Support |
| Wiegand Interface | Supports Wiegand output |
| General | |
| Weight | 2.02 kg |
| Ingress Protection | IP67, IK10 |
| Power Supply | DC12V ±25% Max. power consumption: 20W Supports PoE (802.3at, class 4) |
| Dimensions (L×W×H) | 406 mm × 126 mm × 130 mm |
| Operating Environment | -40℃ to 60℃, ≤90% RH |
| Heater | N/A |
| Compliance | |
| NDAA Compliant | Support |
| Certification | |
| EMC | CE-EMC (EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4 2014) |
| Safety | EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC60529:1989+AMD1:1999+AMD2:2013), IK10 (IEC 62262:2002+AMD1:2021) |
This is a 4MP license plate recognition camera designed for vehicle access control. It features a 1/1.8-inch CMOS sensor and a 10mm to 50mm motorized varifocal lens, allowing the horizontal field of view to be adjusted from 34.3° down to 8.7° to focus on lanes at various distances. It captures a main video stream of 2688 x 1520 at up to 60 frames per second.
The imaging includes 120 dB Wide Dynamic Range and 3D Digital Noise Reduction to handle glare and low light. For night-time operation, it uses integrated warm light LEDs with a range of 50 meters to provide color illumination for better plate recognition. Its primary function is video-based license plate recognition for vehicles up to 80 km/h, managing allowlists and blocklists of up to 20,000 entries each, and triggering its two relay outputs to control barriers. The housing is rated IP67 for dust/water and IK10 for vandal resistance. It operates in an extended temperature range of -40°C to 60°C and can be powered by DC 12V or PoE+ (802.3at), with a maximum power draw of 20 watts.
