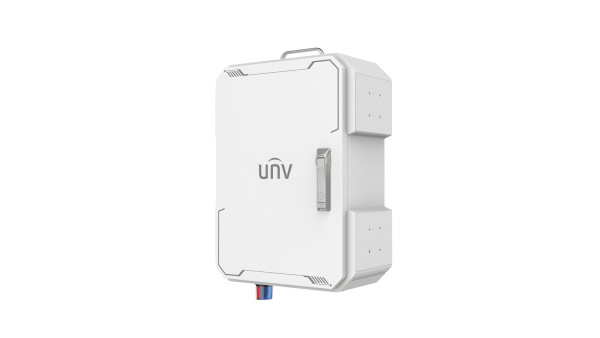

UNV - SMBOX01-US - Overseas Intelligent Operation&Maintenance Box
Product Overview
The Uniview SMBOX01 Series is an integrated smart management box combining power distribution, network-device control, heater, fan, warning-light connections, and protection functions in one enclosure. It is designed for compatible IPC and IP speaker installations and enables remote monitoring through the mobile app and EZCloud platform.
The enclosure provides automatic network-device restart, three-layer electrical protection, pre-wired power interfaces, IP56 environmental protection, and dedicated mounting space for supported cameras, speakers, and 4G routers.
Key Configuration
Model: SMBOX01 Series, US or EU socket variant | Input: AC 100–240V | Power Outputs: 5A socket, DC12V 2.5A, DC48V 2.3A | Protection: 40kA lightning protector, 6kV surge protection, circuit breaker, overvoltage and overload protection | Enclosure: 650 × 424 × 230mm, IP56
Key Features
- · Integrated power management, power switch, heater, fan, and warning-light control
- · Available with one 5A US socket or one 5A EU socket
- · Dedicated DC12V 2.5A router power interface
- · AC100–240V to DC48V 2.3A output through a 2-pin Phoenix terminal
- · Thermostatic fan and heater control for installed equipment
- · Automatic network restart when a connected device loses network communication
- · Remote status monitoring, alarm notifications, fault reporting, and power-information collection
- · Three-layer protection with surge protector, circuit breaker, and software protection
- · 40kA lightning protection, 20kA maximum discharge current, and 6kV surge protection
- · Pre-wired integrated design for simplified installation and reduced field wiring
Technical Context
The smart management box centralizes power and environmental control for connected surveillance equipment. Its controller can monitor power status, operate the fan and heater according to conditions, detect door opening, report faults, and restart network devices automatically when communication is interrupted.
Installation Notes
Provide an AC 100–240V supply through the required 3-pin connector and install the specified upstream circuit breaker for the final installation. The 4G router compartment provides 190mm width and 55mm depth; use a DC12V router with at least two LAN ports and total power consumption not exceeding 30W. The enclosure measures 650 × 424 × 230mm, weighs 15kg without a camera, operates from -40°C to 70°C with up to 90% non-condensing humidity, and supports compatible camera, IP speaker, junction-box, and mounting accessories.
| Product Information | |
| Series | SMBOX01 Smart Management Box |
| Models | SMBOX01-US SMBOX01-EU |
| Application | Smart power management, protection and remote monitoring enclosure for IPC and IP Speaker installations |
| Mounting Space | 225 × 185 × 63mm available internal mounting space |
| Power Input | |
| Input Type | AC 100–240V |
| Input Port | 3-pin connector |
| Installation Requirement | Final installation requires a UL 489-certified 20A circuit breaker installed upstream |
| Power Outputs | |
| AC Socket | SMBOX01-US: 1× 5A US socket SMBOX01-EU: 1× 5A EU socket |
| DC 12V Output | 1× 2.5A DC5521 output for router power |
| DC 48V Output | AC 100–240V to DC 48V, 2.3A, via 2-pin Phoenix terminal |
| Fan Power Interface | DC 12V, 2.5A |
| Heater Power Interface | AC 100–240V to DC 12V, 8A |
| Router Power Interface | DC 12V, 2.5A |
| Warning Light Interface | DC 12V, 2.5A |
| Management and Protection Functions | |
| System Functions | Overvoltage and overload protection, power information collection, power-switch detection and control, thermostatic fan, thermostatic heater, automatic network restart, door-open detection, warning light and fault reporting |
| Automatic Network Restart | Automatically powers off and restarts connected network devices when a network disconnection is detected |
| Remote Management | Remote status monitoring and alarm notifications via mobile application and EZCloud |
| Protection Mechanism | Surge protector, circuit breaker and software protection |
| Power Lightning Protector | 40kA |
| Maximum Discharge Current | 20kA |
| Response Time | L-PE: 25ns N-PE: 25ns |
| Surge Protection | 6kV |
| Environmental and Mechanical | |
| Protection Rating | IP56 |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | Up to 90% RH, non-condensing |
| Dimensions | 650 × 424 × 230mm (H × W × D) |
| Weight | 15kg (33.07lb), without camera |
| Enclosure | Stainless-steel enclosure; custom versions available for NEMA 4X requirements |
| Router Compartment | Depth: 55mm Width: 190mm |
| Router Requirements | 4G router with DC 12V round-plug power supply, power consumption not exceeding 30W and at least 2 LAN ports |
| Power Consumption | |
| No-Load Consumption | 5.7W at 25°C, without HDD heating, heater, fan or warning light |
| Full-Load Consumption | 125W at 25°C, with heater, fan and warning light active |
| Compatible Mounting | |
| Left Side | Up to 2 units; supports TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN and TR-JB07-D-IN-V2 |
| Right Side | Up to 2 units with the same compatible brackets |
| Bottom | Up to 1 unit; supports TR-UF45-A-IN for 4-inch PTZ cameras and cannot be installed simultaneously with an IP Speaker |
| Top | Supports IP Speaker installation without a mounting bracket |
| Certifications | |
| Certifications | CE-EMC and FCC |
