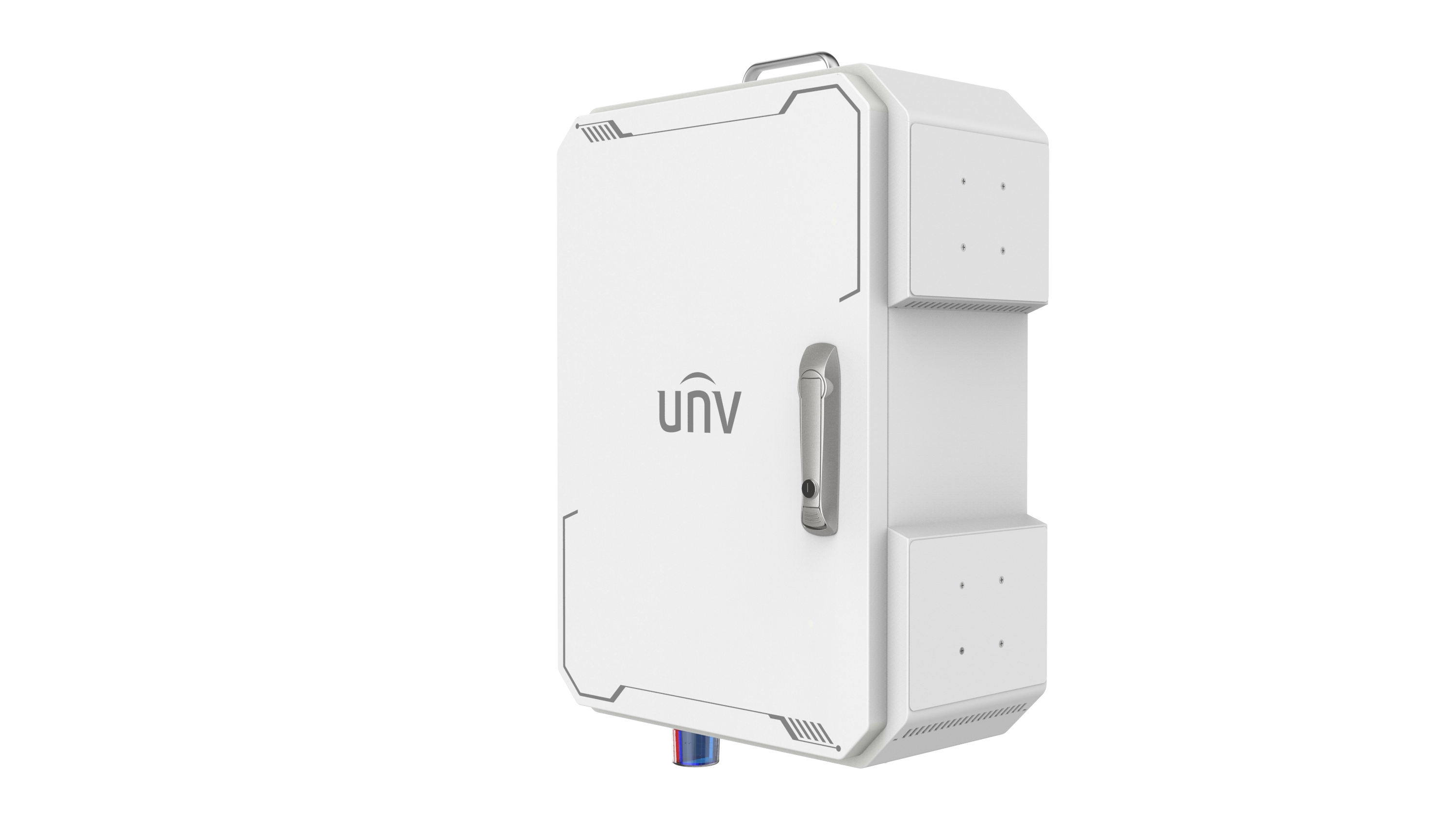

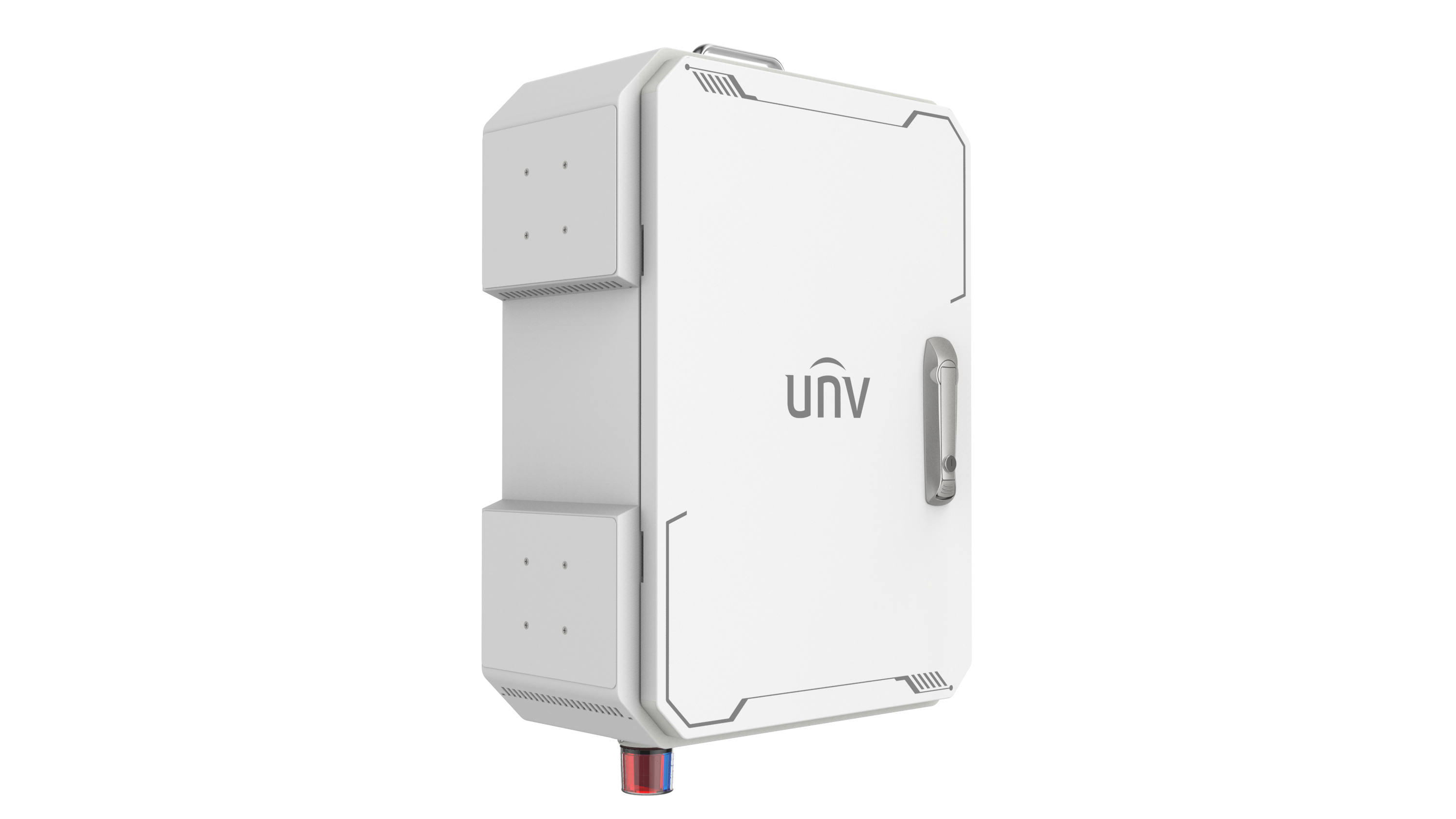

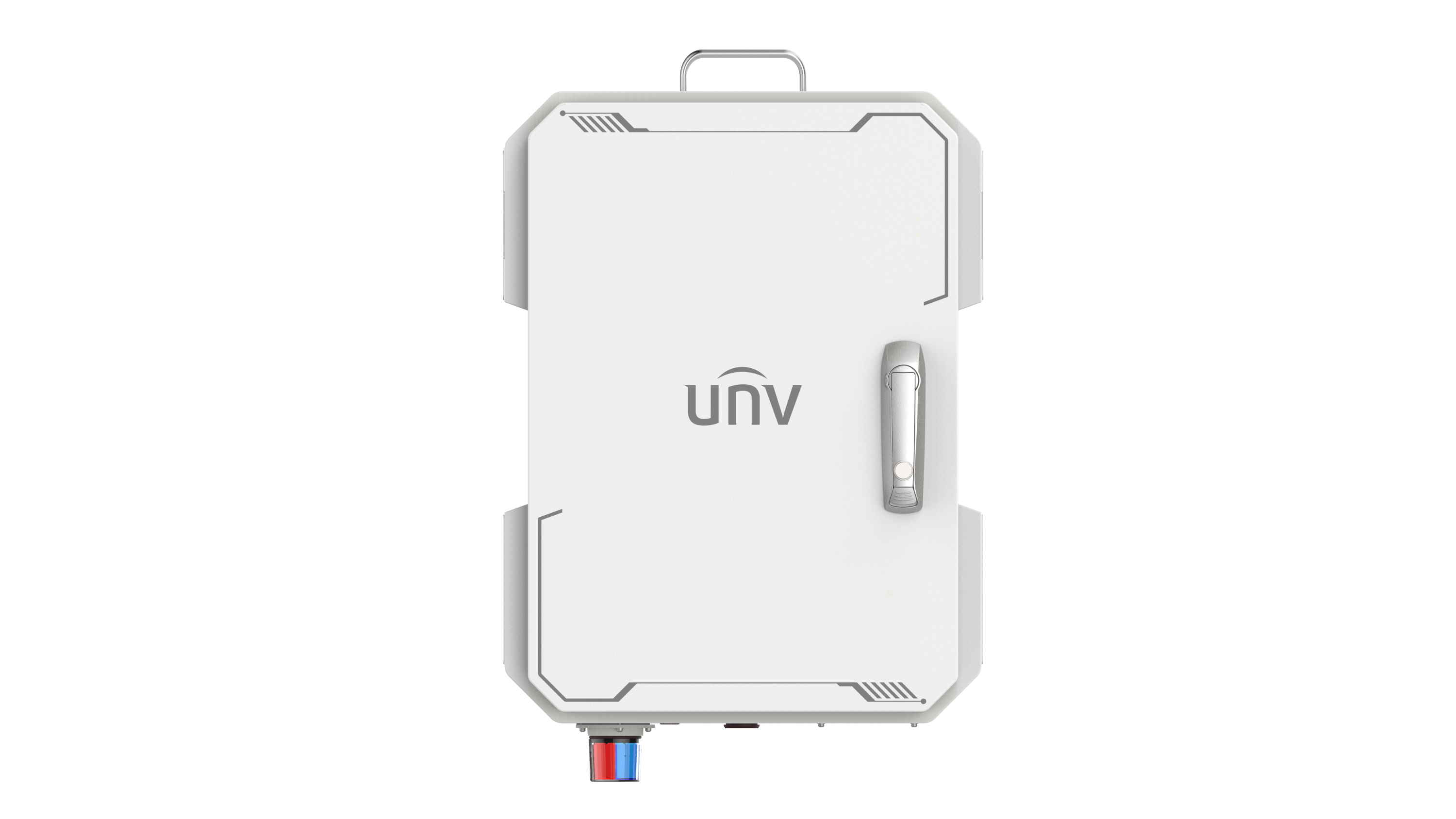

UNV - SMBOX02 - Solar Power Box, with PMM, Power Supply Switch, Fan and Warning Light
• Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box.
• Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud.
• Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them.
• Supports manual restart of PoE port. If devices such as IPC or IP Speaker are faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and EZCloud.
• Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent.
• Integrated design eliminates the need for manual wiring, simplifying installation for users.
| Power Input | |
|---|---|
| Input Type | DC 10.8 V to DC 14.4 V, 12A |
| Input Port | 3-pin Connector |
| Power Output | |
| Socket | N/A |
| DC 12V | 1-ch 2.5A, DC5521 (Used for powering the router) |
| PoE Ports | 8 x RJ45 10M/100M self-adaptive Ethernet Interface |
| PoE Power | Max 30 W for single port, Max 75 W in total |
| PoE Standard | IEEE 802.3at, IEEE 802.3af |
| Dedicated Power Interface (Pre-Wired Internal Cabling) | |
| NVR Power Interface | DC 10.8 ~ 14.4V to DC 48V, 2.5A |
| Router Power Interface | DC12V, 2.5A |
| Warning Light Power Interface | DC12V, 2.5A |
| Function | |
| System Functional Description | Power Information Collection, Power Switch Detection, Power Switch Control, Thermostatic Fan, Automatic Network Restart, Door Open Detection, Warning Light, Fault Reporting and Analysis |
| SMSERVER | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability (Smart Off) | 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30 |
| Decoding Capability (Smart On) | 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30 |
| Audio Compression | G.711A, G.711U |
| Bandwidth | 80 Mbps |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| IP Video Input | 8 channels |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Smart by IPC | Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
| Smart by SMBOX | Face Detection, Ultra Motion Detection (UMD), Smart Intrusion Prevention (SIP) |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch |
| Face Detection by SMBOX with face detection cameras | 8 channels |
| Face Detection by SMBOX with normal cameras | 2 channels |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by SMBOX | 4 channels |
| UMD by SMBOX | 8 channels |
| Capacity of Snapshot Records | 500 thousand records for face snapshot, One and a half million records for SIP and vehicle |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| Network Interface | 1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet Interface |
| USB | 1 × USB 2.0, 1 × USB 3.0 |
| ONVIF Support | Support |
| Hard Disk | |
| Hard Disk Interface | 1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5") |
| Power Lightning Protector | |
| Maximum Discharge Current | 40 kA |
| Rated Discharge Current | 20 kA |
| Response Time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
| General | |
| Surge Protection | 6 kV |
| Working Temperature | When using HDDs: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) When using SSDs: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Weight (Without Camera) | ≤ 15 kg (33.07 lb) |
| Dimensions (H × W × D) | 650 mm × 424 mm × 230 mm |
| Slot Dimensions for Router | Depth: 55mm, Width: 190mm. Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 3 LAN ports. |
| Ingress Protection Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements. |
| Certification | CE-EMC, FCC |
| Power Consumption | |
| No-load Power Consumption (25°C) | 12.6 W (No HDD, No HDD Heating, No Fan, No Alarm Light) |
| Full-load Power Consumption (25°C) | 134.8 W (16T HDD, HDD Heating, Full POE Output (75W), Fan, Alarm Light) |
| SMSERVER Power Consumption (25°C) | ≤8W (No HDD + No POE Output) 96.5W (Full POE Output + 16T HDD) 122.2W (Full POE Output + 16T HDD + Heating Film) |
| Adaptable Mounting Bracket | |
| Left Side | Up to 2 units. Supports TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Right Side | Up to 2 units. Supports same bracket models as Left Side. |
| Bottom | Up to 1 unit (cannot be installed simultaneously with IP Speaker). Supports TR-UF45-A-IN (Only 4-inch PTZ) |
| Top | Supports installation of an IP speaker, no mounting bracket required. |
| Example - Operating Time (with SLR-B2560-H Battery) | |
| No-load Conditions (25°C) | 203 hours |
| Full-load Conditions (25°C) | 19 hours |
| Note: The above operating time is tested under laboratory conditions. Actual operating time may vary depending on load power consumption and ambient temperature. This is for reference only. | |
This is an integrated DC-powered outdoor security appliance enclosure (SMBOX). It is a hardened, all-in-one enclosure rated IP56 (with optional stainless steel for NEMA 4X). It integrates a built-in 8-port PoE+ switch (up to 75W total), a dedicated SMSERVER (a network video recorder with 1 SATA bay for up to 16TB HDD, supporting 8 IP cameras and video analytics), and pre-wired DC power outputs for a router, warning light, and the NVR module. It also includes a built-in power lightning protector (40kA maximum discharge).
The system is designed for standalone or mobile operation in harsh outdoor environments and is compatible with external batteries like the SLR-B2560-H. It operates within a wide temperature range of -40°C to 60°C when using a hard drive, or -40°C to 70°C with an SSD. It is powered by a DC 10.8V to 14.4V input with surge protection up to 6kV. The integrated components have a combined power consumption ranging from 12.6W at idle to a maximum of 134.8W when fully loaded with all PoE ports active.
