UNV - TIC2624S-F35-4F12AC-I3 - Thermal & Optical Bi-spectrum Network Bullet Camera

Product Overview

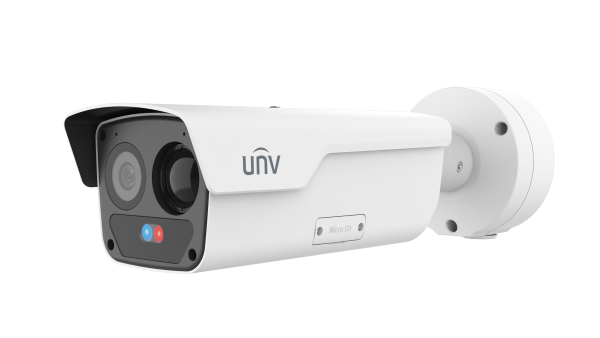

The Uniview TIC2624S-F35-4F12AC-I3 is a thermal and optical bi-spectrum bullet network camera that combines a 4MP optical channel with a 400 × 300 thermal imaging channel under one IP address. It supports fire and smoke detection, temperature measurement, hot/cold spot tracking, smart intrusion prevention, and optical smog recognition for long-range outdoor monitoring.

The camera provides picture-in-picture viewing, audio and light alarms, built-in red and blue warning lights, 100m infrared illumination, IP67 protection, and an anti-corrosion enclosure design.

Key Configuration

Model: TIC2624S-F35-4F12AC-I3 | Optical Channel: 4MP, 2688 × 1520 at 30fps, 12mm lens | Thermal Channel: 400 × 300, 35mm lens | Connectivity: RJ45 10/100M Ethernet, RS485, IEEE 802.3at PoE or DC12V | Protection: IP67, anti-corrosion design

Key Features

• · Dual-spectrum thermal and optical imaging with a single network address
• · 4MP optical channel with 1/2.7-inch CMOS sensor and 12mm lens
• · 400 × 300 thermal imaging channel with uncooled vanadium oxide focal-plane array
• · Thermal fire and smoke detection, fire-shield areas, temperature detection, and abnormal-temperature alarms
• · Hot-spot and cold-spot tracking with thermal temperature analysis
• · Optical smog recognition for visual fire-alarm confirmation
• · Dual-spectrum smart intrusion prevention with cross-line, intrusion, enter-area, and leave-area detection
• · Picture-in-picture viewing, real-time visual comparison, and multiple thermal palettes
• · Ultra 265, H.265, H.264, and MJPEG compression with five video streams and microSD storage up to 512GB
• · Built-in microphone and speaker, 3 alarm inputs, 2 alarm outputs, audio I/O, and red/blue warning lights

Technical Context

The optical channel provides detailed visible-light imagery while the thermal channel detects heat patterns, smoke-related changes, and abnormal temperatures that may not be visible to standard cameras. Picture-in-picture and comparison modes let operators verify thermal alarms against the optical scene, while thermal and optical analytics work together for intrusion and fire-event confirmation.

Installation Notes

Power the camera using DC 12V ±25% or IEEE 802.3at PoE through the 10/100M RJ45 interface. The bullet housing measures 406 × 130 × 130mm, weighs 2.23kg, and operates from -40°C to 70°C with up to 95% non-condensing humidity. Use the alarm, audio, and warning-light connections according to the installation design, and provide suitable pole or corner mounting hardware where required.
