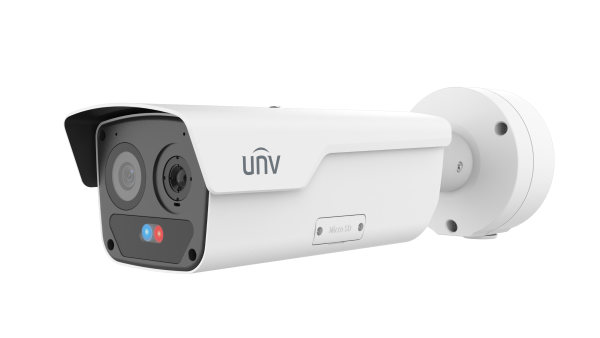

UNV - TIC2626S-F10-4F4AC-I3 - Thermal & Optical Bi-spectrum Network Bullet Camera
Product Overview
The Uniview TIC2626S-F10-4F4AC-I3 is a thermal and optical bi-spectrum bullet network camera that combines a 4MP optical channel with a 640 × 512 thermal imaging channel under one IP address. It supports thermal fire detection, temperature measurement, hot/cold spot tracking, smart intrusion prevention, and optical smog recognition for outdoor security and industrial monitoring.
The camera provides picture-in-picture viewing, audio and light alarms, built-in red and blue warning lights, 50m infrared illumination, IP67 protection, and an anti-corrosion enclosure design.
Key Configuration
Model: TIC2626S-F10-4F4AC-I3 | Optical Channel: 4MP, 2688 × 1520 at 30fps, 4mm lens | Thermal Channel: 640 × 512, 10mm lens | Connectivity: RJ45 10/100M Ethernet, RS485, IEEE 802.3at PoE or DC12V | Protection: IP67, anti-corrosion design
Key Features
- · Dual-spectrum thermal and optical imaging with a single network address
- · 4MP optical channel with 1/2.7-inch CMOS sensor and 4mm lens
- · 640 × 512 thermal imaging channel with uncooled vanadium oxide focal-plane array
- · Thermal fire detection, fire-shield areas, temperature detection, and abnormal-temperature alarms
- · Hot-spot and cold-spot tracking with thermal temperature analysis
- · Optical smog recognition for visual fire-alarm confirmation
- · Dual-spectrum smart intrusion prevention with cross-line, intrusion, enter-area, and leave-area detection
- · Picture-in-picture viewing, real-time visual comparison, and multiple thermal palettes
- · Ultra 265, H.265, H.264, and MJPEG compression with five video streams and microSD storage up to 512GB
- · Built-in microphone and speaker, 3 alarm inputs, 2 alarm outputs, audio I/O, and red/blue warning lights
Technical Context
The optical channel provides detailed visible-light imagery while the thermal channel detects heat patterns and abnormal temperature changes that may not be visible to standard cameras. Picture-in-picture and comparison modes let operators verify thermal alarms against the optical scene, while thermal and optical analytics work together for intrusion and fire-event confirmation.
Installation Notes
Power the camera using DC 12V ±25% or IEEE 802.3at PoE through the 10/100M RJ45 interface. The bullet housing measures 406 × 130 × 130mm, weighs 2.14kg, and operates from -40°C to 70°C with up to 95% non-condensing humidity. Use the alarm, audio, and warning-light connections according to the installation design, and provide suitable pole or corner mounting hardware where required.
| Product Information | |
| Model | TIC2626S-F10-4F4AC-I3 |
| Product Type | Thermal and optical bi-spectrum network bullet camera |
| Imaging Channels | Optical and thermal channels with dual video through a single IP address |
| Special Features | Picture-in-picture display, real-time contrast viewing, audio and light alarm, built-in red and blue warning lights |
| Optical Channel | |
| Maximum Resolution | 4MP |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.005 Lux, F1.6, AGC ON Black and white: 0.003 Lux, F1.6, AGC ON 0 Lux with IR |
| Day/Night | IR-cut filter with automatic ICR switch |
| Shutter | Auto/manual, 1 to 1/100000s |
| WDR | 120dB |
| Signal-to-Noise Ratio | >56dB |
| Lens | 4mm fixed lens |
| Aperture | F1.6 |
| Optical Field of View | Horizontal: 77.4° Vertical: 42.2° Diagonal: 95.2° |
| Thermal Channel | |
| Maximum Resolution | 1080P |
| Original Resolution | 640 × 512 |
| Thermal Sensor | Vanadium oxide uncooled focal plane array |
| Pixel Size | 12μm |
| NETD | <30mK at F1.0 and 25°C |
| Lens | 10mm |
| Aperture | F1.0 |
| Thermal Field of View | Horizontal: 48.0° Vertical: 38.3° Diagonal: 59.0° |
| Temperature Measurement Range | -20°C to 150°C (-4°F to 302°F) |
| Thermal Palettes | Lava, medical, fusion, arctic, mazarine, rain, puce, white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1 and color 2 |
| DORI Distance | |
| Optical Detect Distance | 90.0m (295.3ft) |
| Optical Observe Distance | 36.0m (118.1ft) |
| Optical Recognize Distance | 18.0m (59.1ft) |
| Optical Identify Distance | 9.0m (29.5ft) |
| Thermal Detection Range | Up to 986m for vehicles and 395m for humans with the 10mm lens |
| Thermal Recognition Range | Up to 329m for vehicles and 132m for humans with the 10mm lens |
| Thermal Identification Range | Up to 164m for vehicles and 66m for humans with the 10mm lens |
| Illumination | |
| IR Wavelength | 750nm |
| IR Illumination Distance | Up to 50m |
| IR Control | Automatic/manual |
| Video | |
| Optical Frame Rate | 4MP, 2688 × 1520, up to 30fps |
| Thermal Frame Rate | 1080P, 1920 × 1080, up to 30fps |
| Video Compression | Ultra 265, H.265, H.264 and MJPEG |
| Video Bit Rate | 128Kbps to 16Mbps |
| U-Code | Supported |
| ROI | Supported |
| Video Streams | Five streams |
| OSD | Up to 10 OSDs |
| Privacy Mask | Up to 8 areas, including black and mosaic masking |
| Image Functions | |
| White Balance | Auto, outdoor, fine tune, sodium lamp, locked and Auto2 |
| Noise Reduction | 2D/3D digital noise reduction |
| Image Functions | HLC, BLC, digital defog, image flip and LightHunter |
| Image Flip | Normal, vertical flip, horizontal flip and 180° rotation |
| Intelligent Functions | |
| Smart Intrusion Prevention | Cross-line detection, intrusion detection, enter-area detection and leave-area detection |
| Optical Classification | Human, non-motor vehicle and vehicle classification |
| Thermal Classification | Human and vehicle classification |
| Thermal Analytics | Fire detection, fire shield area, temperature detection, cold/hot spot tracking and abnormal temperature alarm |
| Optical Analytics | Smog recognition for fire alarm reconfirmation |
| Basic Detection | Motion detection, tampering alarm and audio detection |
| Audio and Storage | |
| Audio I/O | 2 audio inputs and 1 audio output |
| Audio Compression | G.711U and G.711A |
| Audio Bit Rate | 128Kbps |
| Sampling Rate | 16kHz |
| Two-Way Audio | Supported |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Edge Storage | MicroSD card up to 512GB |
| Network Storage | ANR and NAS support |
| Network and Interfaces | |
| Network Interface | 1 × RJ45 10/100 Base-TX Ethernet port |
| Network Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS and SSH |
| Compatible Integration | ONVIF Profiles S, G and M, SDK and API |
| Users | Up to 32 users with administrator, common-user and operator levels |
| Supported Clients | EZStation, UNV-Link and UNV-Link Pro |
| Web Browser | IE 10+, Chrome 45+, Firefox 52+ and Edge 79+ |
| Alarm I/O | 3 alarm inputs and 2 alarm outputs |
| Serial Port | 1 × RS485 |
| Video Output | 1 × BNC debugging output |
| Power | |
| Power Supply | DC 12V ±25% or PoE IEEE 802.3at |
| Power Consumption | 22.4W maximum |
| Power Interface | Ø5.5mm coaxial power plug |
| Mechanical and Environmental | |
| Housing Type | Bullet |
| Protection Rating | IP67; NEMA 4X anti-corrosion design |
| Dimensions | 406.0 × 130.0 × 130.0mm (16.0" × 5.1" × 5.1") |
| Weight | 2.14kg |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | Up to 95% RH, non-condensing |
| Surge Protection | 6kV |
| Maximum Bandwidth | 50Mbps |
| RTC | Supported |
| OSD Font | Vector |
| OSD Character Number | 40 |
| Certifications and Accessories | |
| Certifications | CE-EMC, FCC, CE-LVD, UL, CE-RoHS, WEEE and REACH |
| Optional Accessories | TR-UP06-C-IN-V2 pole mounting bracket for bullet junction box TR-UC08-C-V2 bullet and dome corner mounting bracket |
