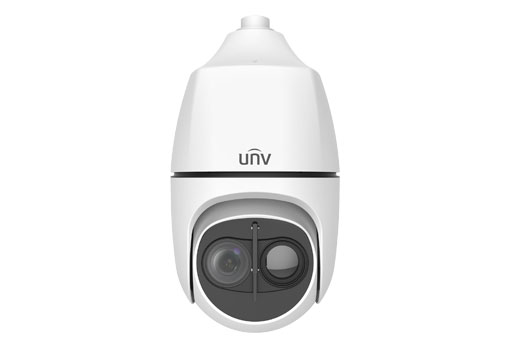

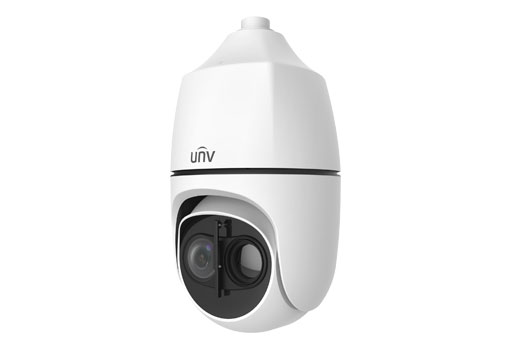

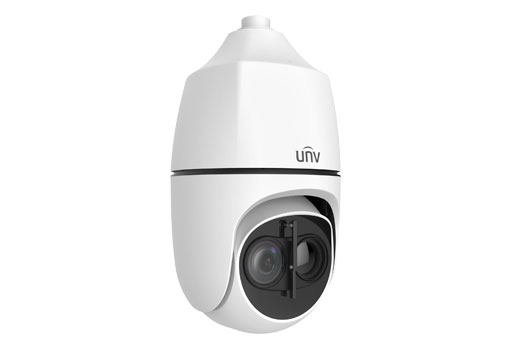

Uniview - TIC6831ER-F50-4X38P - UNV 38X 4MP Thermal PTZ Dome Camera (38X, 384x288, 150m IR, Audio, Alarm)
Part number:
TIC6831ER-F50-4X38P
Price:
UNV 38X 4MP Thermal PTZ Dome Camera (38X, 384x288, 150m IR, Audio, Alarm)
Features:
Optics
- Thermal & Optical dual-spectrum image, dual channels with one IP, adaptable to more various scenes
- Passive infrared thermal imaging, meet the requirement of concealed monitoring and not affected by bad weather condition such as fog, smoke, rain, snow and night etc.
- Starlight illumination
- Smart IR, up to 150m (492ft) IR distance
- Gyroscope stabilization for stable picture
- 2D/3D DNR (Digital Noise Reduction)
Compression
- 4 Megapixel optical image
- Ultra265, H.264, MJPEG
- Triple streams
- Customize OSD
Network
- ONVIF Conformance
Structure
- AC/DC24V or PoE++(IEEE 802.3bt) power supply
- Wide voltage range of ±25%
- Support Wiper
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP66
| TIC6831ER-F50-4X38P | |||||
| Optical Module | |||||
| Image sensor | 1/1.8", progressive scan, 4.0 megapixel, CMOS | ||||
| Lens | 5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 38 | ||||
| DORI Distance | Lens（mm） | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5.7 | 97.5(319.9ft) | 39(128.0ft) | 19.5(64.0ft) | 9.8(32.0ft) | |
| 216.6 | 3030(9940.9ft) | 1212(3976.4ft) | 606(1988.2ft) | 303(994.1ft) | |
| Angle of View(H) | 58.5°~ 2.1° | ||||
| Angle of View(V) | 35.0°~ 1.2° | ||||
| Angle of View (O) | 72.0°~ 2.5° | ||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||
| Minimum Illumination | Colour: 0.0005 Lux (F1.3, AGC ON) 0 Lux with IR | ||||
| Iris | Auto/Manual; F1.3 ~ F4.6 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >56dB | ||||
| IR Range | Up to 150m (492ft) | ||||
| Defog | Optical Defog & Digital Defog | ||||
| WDR | 120dB | ||||
| Thermal Module | |||||
| Sensor type | Vanadium Oxide Uncooled Focal Plane Arrays | ||||
| Max. Resolution | 384*288 | ||||
| Video format | 720P(1280*720), Max 25fps | ||||
| Pixel size | 17μm | ||||
| Response waveband | 8~14μm | ||||
| NETD | ≤50mk | ||||
| Lens(focal length) | 50mm | ||||
| Angle of View (H) | 7.5° | ||||
| Angle of View (V) | 5.8° | ||||
| Angle of View (O) | 9.1° | ||||
| Focus | Auto/Semiautomatic/Manual | ||||
| Palette | Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce | ||||
| Detection Distance | Vehicle: 3480m (target size 4mx1.4m); human: 1395m (target size 1.8mx0.5m); | ||||
| Recognition Distance | Vehicle: 870m (target size: 4mx1.4m); human: 349m (target size: 1.8mx0.5m); | ||||
| Identification Distance | Vehicle: 497m (target size: 4mx1.4m); human: 199m (target size: 1.8mx0.5m); | ||||
| Video | |||||
| Compression | Ultra265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 4MP (2688×1520): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps; | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| ROI | Up to 8 areas | ||||
| Privacy Mask | Up to 24 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Event | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 180°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 180°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| Input: impedance 1kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Video Output | N/A | ||||
| Network | 1 RJ45 10M / 100M Base-TX Ethernet | ||||
| General | |||||
| Power | AC 24V, DC 24V ±25%, PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required) | ||||
| Power consumption: Max 57W | |||||
| Dimensions (Φ × H) | Φ270mm × 496.7mm (Φ10.6" × 19.6") | ||||
| Weight | 10.22kg (22.53lb) | ||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge protection | 6KV | ||||
| Vandal Resistant | N/A | ||||
| Ingress Protection | IP66 | ||||
