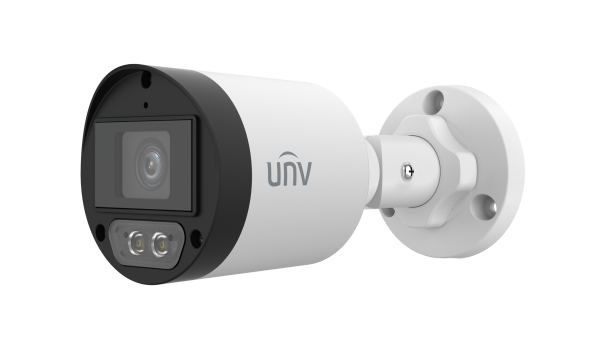

UNV - UAC-B125-AF28-W - 5MP ColourHunter HD Fixed Mini Bullet Analog Camera
Product Overview
Uniview UAC-B125-AF28M-W is a 5MP ColourHunter HD fixed mini bullet analog camera with a 1/2.7" CMOS sensor and 2.8mm lens. It supports TVI, AHD, CVI, and CVBS analog video outputs. The camera provides white light illumination for 24/7 color images, built-in microphone for audio transmission via coaxial cable, and OSD configuration menu in 11 languages.
Key Configuration
- • 5MP maximum resolution (2880×1620); TVI at 5MP@20fps (default) or 5MP@12.5fps
- • 2.8mm fixed lens; horizontal FOV: 111.5°; D FOV: 134.8°
- • White light illumination: two illuminators, up to 40m distance, ≥60000 hours lifetime
- • Analog outputs: BNC with TVI/AHD/CVI/CVBS selectable
- • Power: DC 12V ±25%; max consumption 3.28W
Key Features
• Minimum illumination: 0.005 Lux (F1.4, AGC ON), 0 Lux with white light on; 24/7 color images
• DWDR; exposure modes: Global (default), BLC, HLC, DWDR; 2D digital noise reduction
• White balance: Auto (default) or Manual; supports 180° horizontal flip and 180° vertical flip
• Built-in microphone for audio transmission via coaxial cables; TVI and CVI support audio at specified resolutions
• OSD configuration menu in 11 languages; IP67 ingress protection
Technical Context
Analog video output supports multiple standards with frame rate variations: TVI supports 5MP@20fps (default) or 12.5fps, plus 4MP and 1080P; AHD supports 5MP@20fps, 4MP, and 1080P; CVI supports 5MP@25fps, 4MP@25/30fps, and 1080P; CVBS supports PAL and NTSC. Shutter: PAL 1/25s–1/50000s, NTSC 1/30s–1/50000s.
Installation Notes
Dimensions: 157 × 67 × 66 mm (L×W×H); weight: 279 g (0.62 lb). Metal construction (front face and housing). Operating temperature: -30°C to 60°C (-22°F to 140°F), humidity ≤95% RH non-condensing. Ingress protection: IP67. Power interface: 5.5mm coaxial plug. Surge protection: 4KV for power, 4KV for video output. Mounting options: corner mount, pole mount.
| Camera | |
| Max Resolution | 5 MP |
| Sensor Size | 1/2.7" CMOS |
| Min. Illumination | 0.005 lux (F1.4, AGC ON) 0 lux (white light on) |
| Lens | |
| Focus | 2.8 mm |
| Lens Mount | M12 |
| Angle of View (H) | 111.5° |
| Angle of View (V) | |
| 58.9° | |
| Angle of View (D) | 134.8° |
| Illuminator | |
| Illuminator Number | Two white-light illuminators |
| Illumination Distance | 40m |
| Lifetime | ≥ 60000 hours |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V) 5MP@20fps: 2592(H)×1944(V) 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s - 1/50000s NTSC: 1/30s - 1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital Noise Reduction | 2D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces |
| Ingress Protection | IP67 |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 3.28W |
| Mount | Corner Mount, Pole Mount |
| Dimensions (L×W×H) | 157mm × 67mm × 66mm |
| Material | Metal |
| Weight | 279g (0.62lb) |
