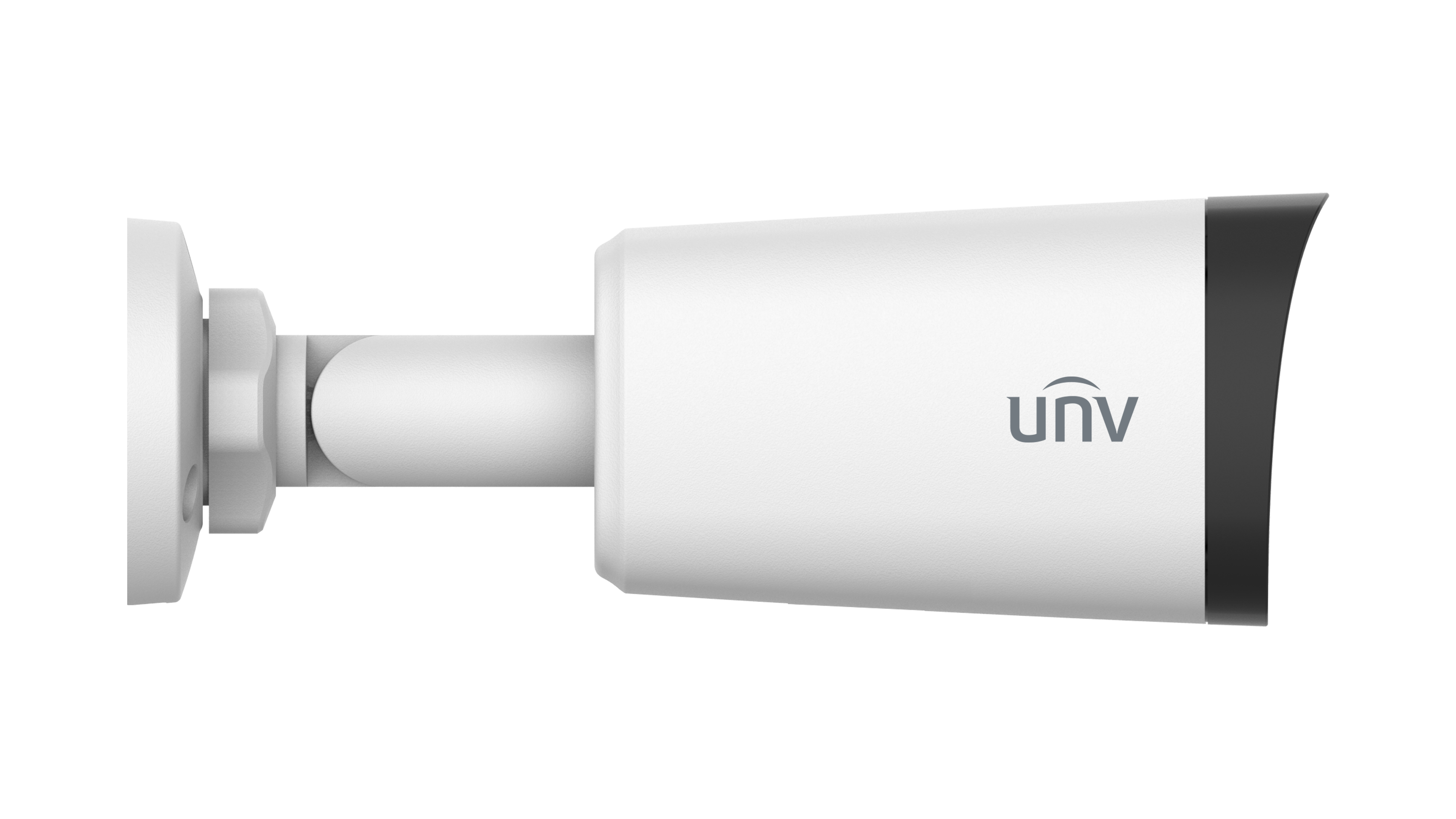

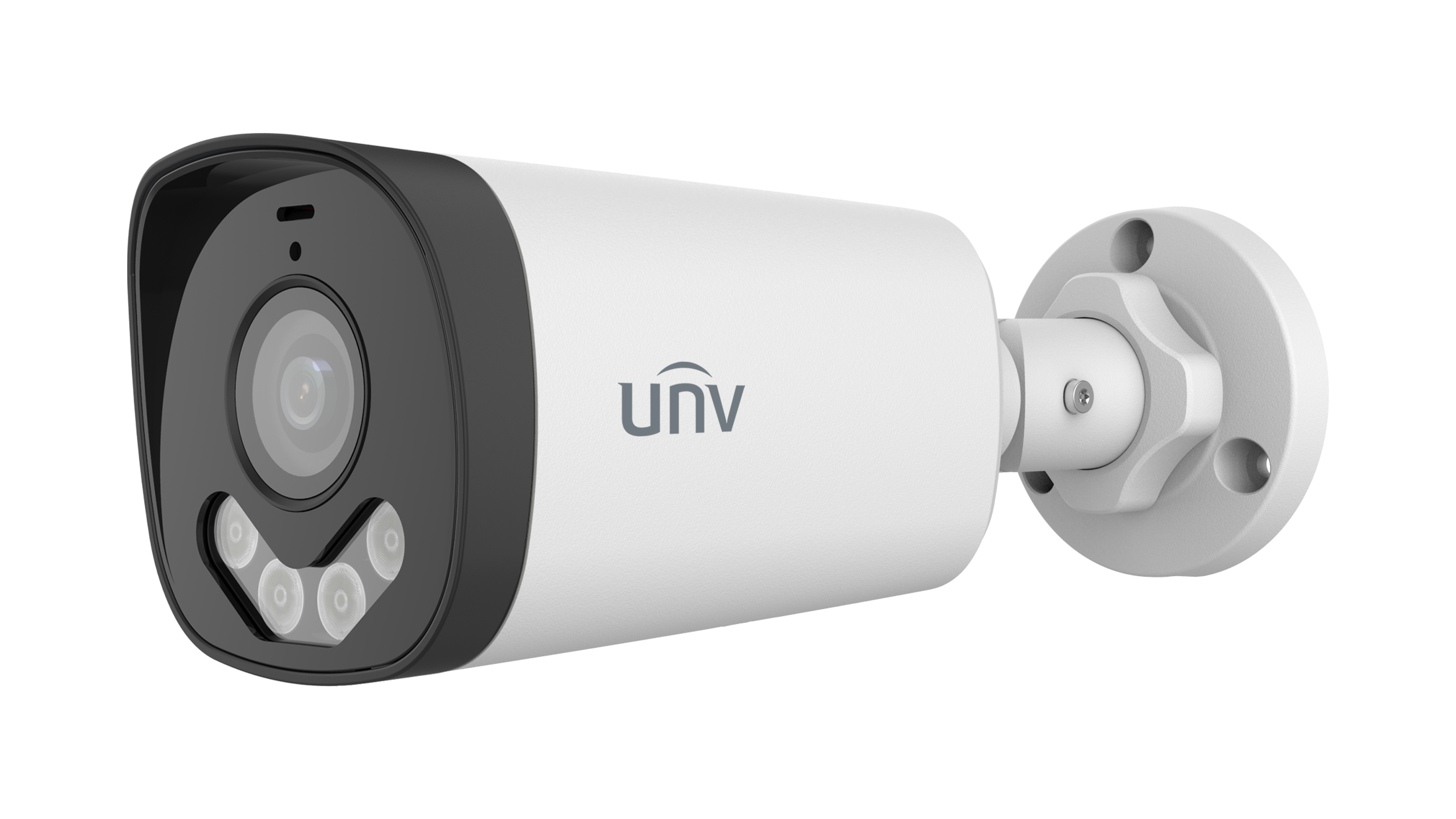

UNV - UAC-B142-ACF40LM-DL - 2MP Dual Light Analog 2-Way Talk Bullet 4mm
• High quality imaging with 2MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• Two-way audio (Only TVI 1080P)
• Dual-light active deterrence (only TVI)
• Active defense with visual and auditory warnings (Only TVI 1080P)
• High-quality audio through coaxial cables, built-in microphone, and built-in speaker
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
| Camera | |
| Max Resolution | 2 MP |
| Sensor Size | 1/3.0" CMOS |
| Min. Illumination | 0.003 lux (F1.6, AGC ON) 0 lux (Illuminator ON) |
| Lens | |
| Focus | 2.8 mm, 4.0 mm |
| Lens Mount | M12 |
| Angle of View (Horizontal) | 52.0° |
| Angle of View (Vertical) | 31.0° |
| Angle of View (Diagonal) | 59.0° |
| Illuminator | |

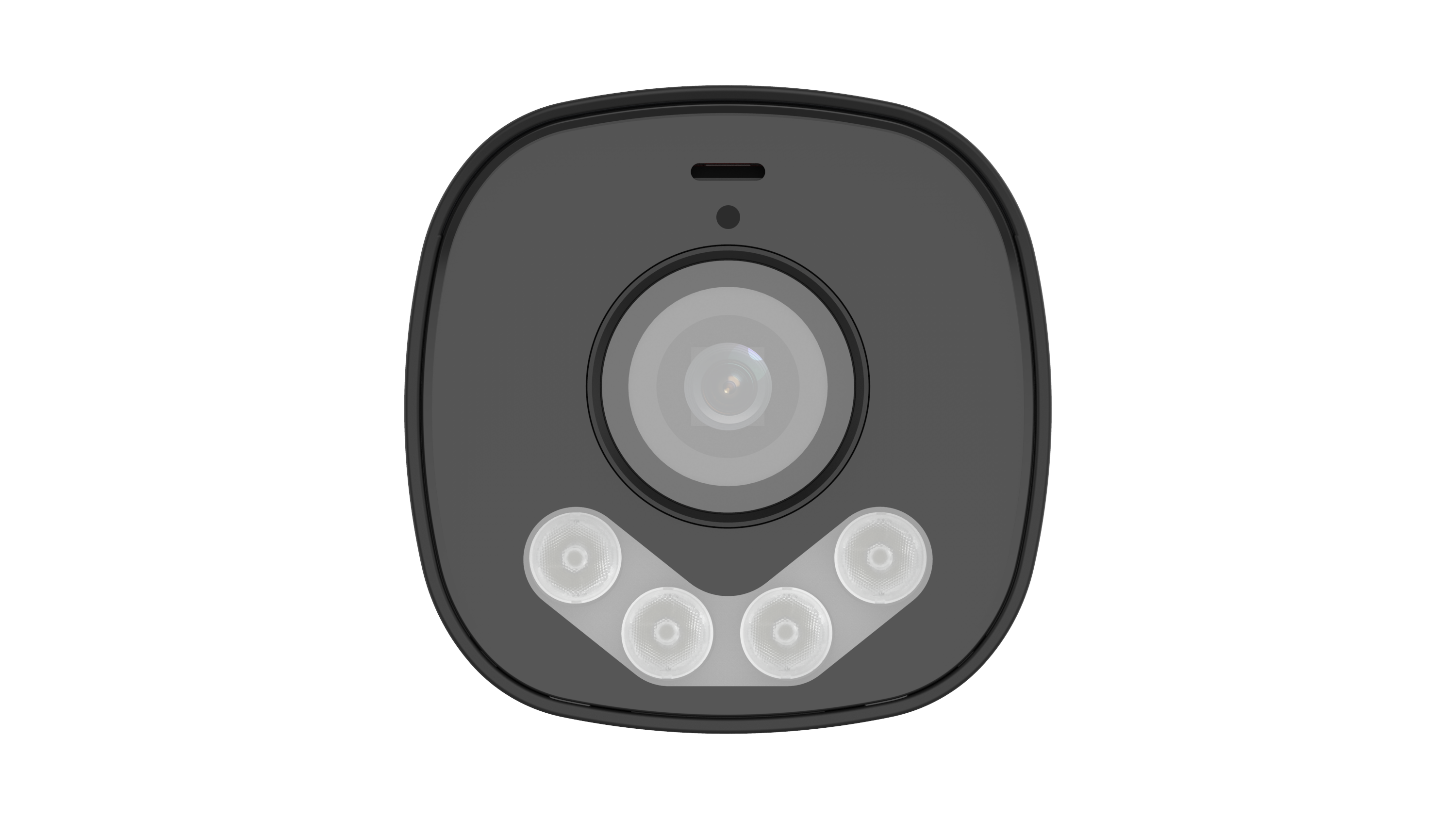

| Illuminator Number | Two IR illuminators; Two white-light illuminators |
| Illumination Distance | IR: 40m (131.23 ft) White light: 40m (131.23 ft) |
| Lifetime | ≥ 60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H) × 1080(V) 720P: 1280(H) × 720(V) |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25 s - 1/50000 s NTSC: 1/30 s - 1/50000 s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Light Mode | Dual light (default), Infrared, White light |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Two-way Audio | Support |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 5.8W |
| Mount | Corner Mount, Pole Mount |
| Dimensions (L × W × H) | 198 mm × 74 mm × 74 mm |
| Material | Metal + Plastic |
| Weight | 247 g (0.54 lb) |
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
This is a 2MP analog HD camera available with a choice of a 4mm lens. It features a 1/3.0" CMOS sensor and, with the 4.0mm lens variant, provides a 52.0° horizontal field of view. It supports multiple analog HD formats (TVI, AHD, CVI) and standard CVBS output via a BNC connector, with a maximum resolution of 1080P at 30 frames per second.
For illumination, it includes both infrared and white light LEDs, each with a range of 40 meters. Its imaging features include Digital WDR, 2D/3D Digital Noise Reduction, and Highlight Compensation. It supports two-way audio via a built-in microphone. The housing is constructed from metal and plastic with an IP67 protection rating for dust and water resistance. It operates within a temperature range of -30°C to 60°C. It is powered by a DC 12V source with a maximum power consumption of 5.8 watts.
