UNV - UAC-D312-AZLM - 2MP IR Light Analog VF Turret 2.8mm
• High quality imaging with 2MP resolution
• 2.8mm-12mm motorized lens
• TVI/AHD/CVI/CVBS
• Supports IR cut filter with auto switch (ICR)
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal/vertical flip
• OSD configuration menu, easy to operate
• Water and dust resistant (IP67) and vandal resistant (IK10)
• OSD configuration menu in 11 languages
• Built in microphone for high quality audio transmission via coaxial cables
| Camera | |
| Max Resolution | 2 MP |
| Sensor Size | 1/3.0" CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
| Lens | |
| Focus | 2.8 to 12 mm |
| Lens Mount | Φ14 |
| Angle of View (Horizontal) | 91.3° ~ 31.3° |
| Angle of View (Vertical) | 52.2° ~ 18.5° |
| Angle of View (Diagonal) | 106.8° ~ 35.9° |
| Illuminator | |
| Illuminator Number | Two IR illuminators |
| Illumination Distance | 30 m |
| Lifetime | ≥ 60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H) × 1080(V) 720P: 1280(H) × 720(V) |
| Frame Rate | CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps TVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25 s - 1/50000 s NTSC: 1/30 s - 1/50000 s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | CVI: 1080P@25fps, 1080P@30fps * Audio function of the camera is only available when the camera is used with our G3/Q3/U3 series XVRs. |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 2.78W |
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
| Dimensions | Φ128 × 100 mm (Ø5.0” × 3.9”) |
| Material | Metal + Plastic |
| Weight | 530 g (1.17 lb) |
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529), IK10 (IEC 62262) |

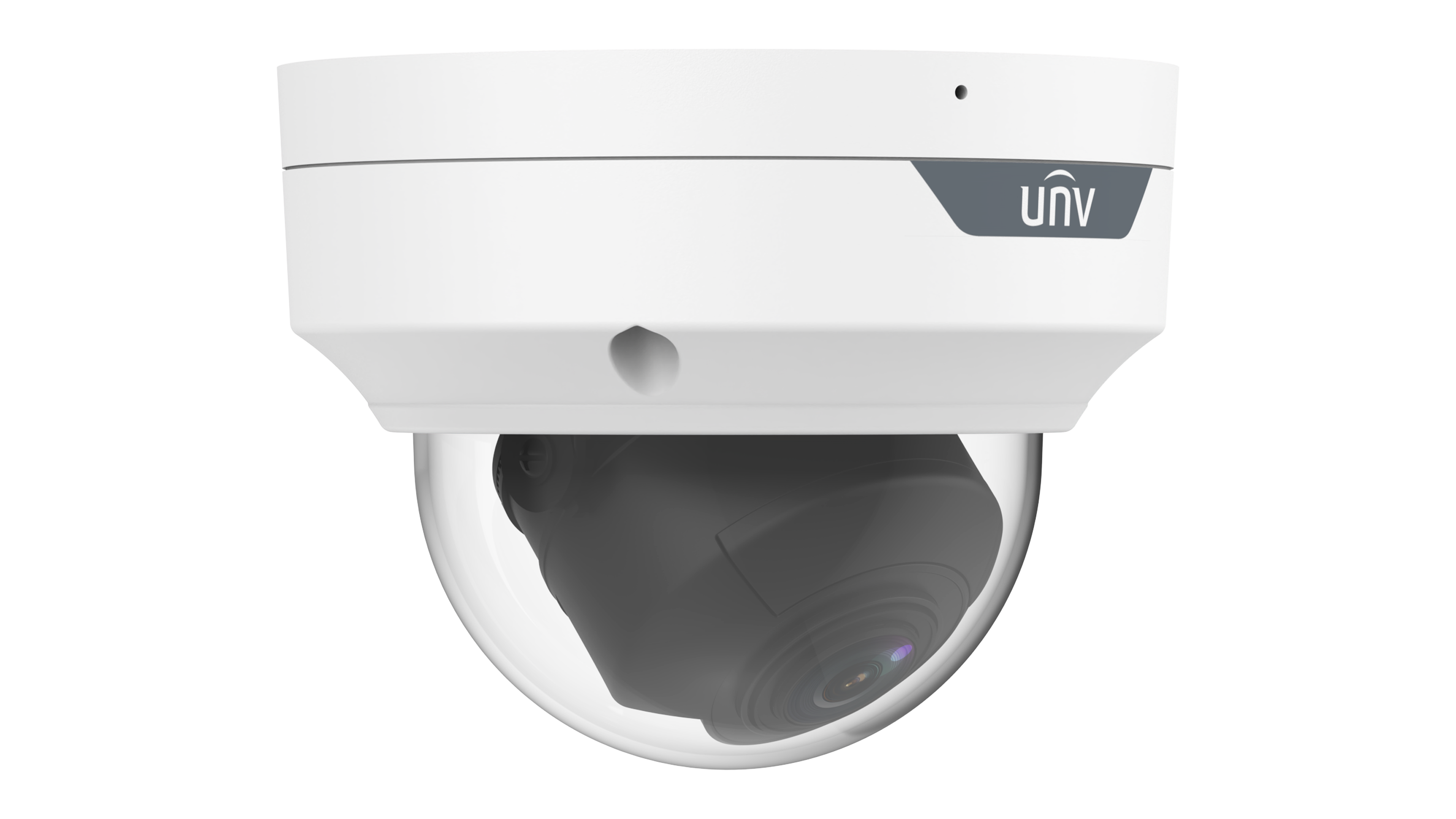

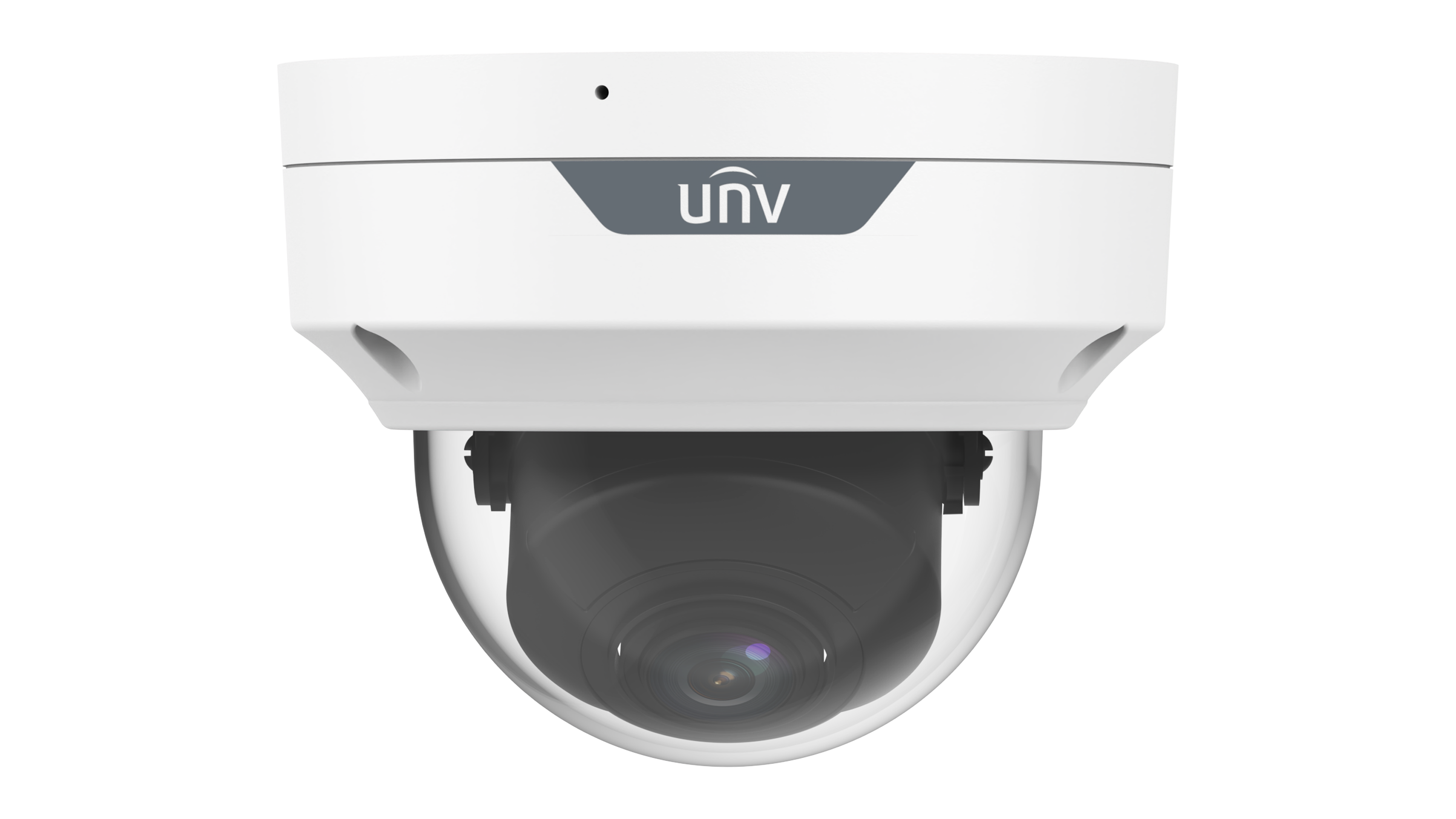

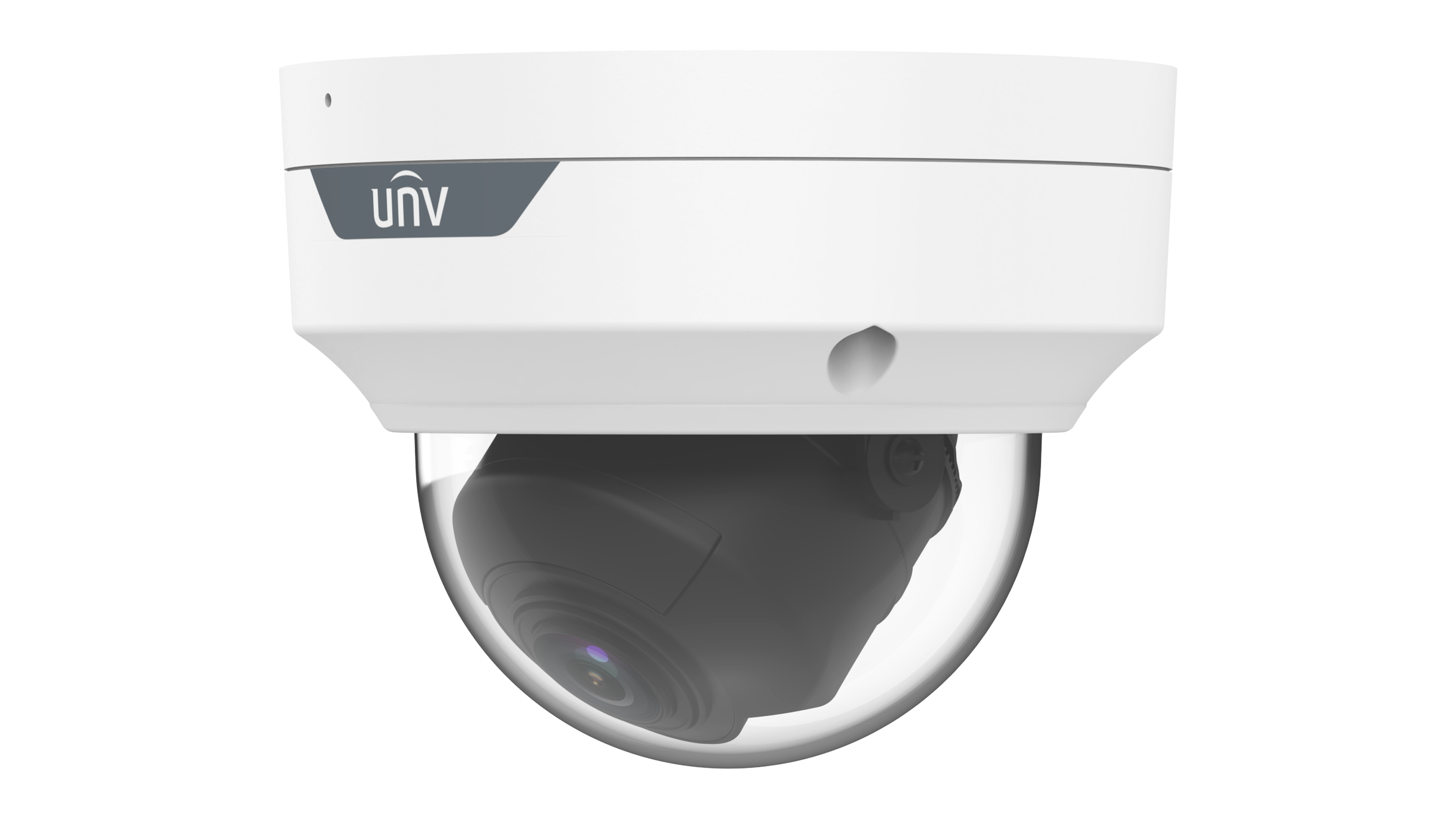

This is a 2MP analog HD varifocal dome camera. It features a 1/3.0" CMOS sensor and a manual 2.8mm to 12mm varifocal lens, allowing the horizontal field of view to be adjusted from 91.3° down to 31.3°. It supports multiple analog HD formats (TVI, AHD, CVI) and standard CVBS output via a BNC connector, with a maximum resolution of 1080P at 30 frames per second.
For night vision, it includes two infrared LEDs with a range of 30 meters. Its imaging features include Digital WDR (DWDR), 2D/3D Digital Noise Reduction, and Smart IR. It includes a built-in microphone for audio capture. The housing is constructed from metal and plastic with an IP67 protection rating for dust and water resistance and an IK10 rating for vandal resistance. It operates within a temperature range of -30°C to 60°C. It is powered by a DC 12V source with a maximum power consumption of 2.78 watts.
