UNV - UAC-D315-ADZMS - 5MP LightHunter VF IR Dome Analog Camera
Product Overview

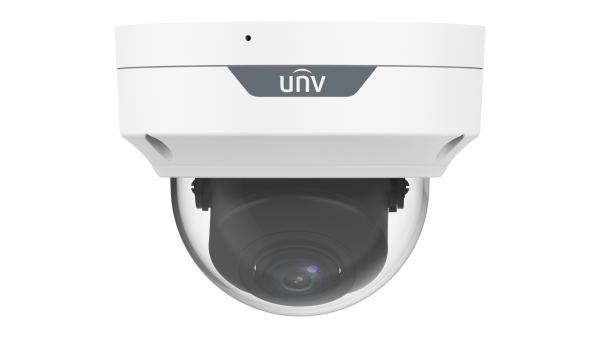

The Uniview UAC-D315-ADZMS is a 5MP LightHunter variable-focal infrared dome analog camera with a 1/2.7-inch CMOS sensor and 2.8–12mm motorized lens. It supports TVI, AHD, CVI, and CVBS video formats, enabling flexible integration with coaxial surveillance systems.
The camera delivers color day and infrared black-and-white night imaging, 3D noise reduction, 120dB WDR, built-in microphone audio transmission, IP67 weather protection, and IK10 vandal resistance.
Key Configuration
Model: UAC-D315-ADZMS | Resolution: 5MP, up to 2880 × 1620 | Lens: 2.8–12mm motorized variable-focal lens | Connectivity: BNC TVI/AHD/CVI/CVBS video output with coaxial audio transmission | Protection: IP67, IK10, 4kV power and video surge protection
Key Features
- · 5MP imaging with high-sensitivity 1/2.7-inch CMOS sensor
- · 2.8–12mm motorized variable-focal lens with 107.8°–36.5° horizontal field of view
- · TVI, AHD, CVI, and CVBS format support for flexible analog-system integration
- · Two infrared illuminators with up to 30m night-vision distance
- · 120dB WDR, 2D/3D digital noise reduction, BLC, HLC, and digital defog
- · CVI video up to 5MP at 25fps and TVI/AHD video up to 5MP at 20fps
- · Built-in microphone with synchronized audio and video transmission over coaxial cable
- · Automatic IR-cut filter with day/night modes and Smart IR control
- · 180° horizontal and vertical image flip with multilingual OSD menu
- · IP67 weather protection, IK10 vandal resistance, and metal/plastic housing
Technical Context
The camera transmits megapixel video and synchronized audio through coaxial cabling, allowing integration with existing TVI, AHD, CVI, or CVBS recorders. LightHunter imaging, WDR, digital noise reduction, and Smart IR help maintain usable detail across daytime, nighttime, high-contrast, and low-light scenes.
Installation Notes
Power the camera using DC 12V ±25% and connect video through the BNC interface with compatible coaxial cabling. The dome housing measures Ø128 × 100mm, weighs 530g, and operates from -30°C to 60°C with up to 95% non-condensing humidity. Wall, pole, corner, and pendant mounting options are supported; use a compatible junction box or waterproof cable gland for exposed installations.
| Product Information | |
| Model | UAC-D315-ADZMS |
| Product Type | 5MP LightHunter varifocal IR dome analog camera |
| Video Technologies | TVI, AHD, CVI and CVBS |
| Special Features | LightHunter monitoring, 3D noise reduction, motorized varifocal lens, built-in microphone and 180° image flip |
| Camera and Lens | |
| Maximum Resolution | 5MP |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | 0.005 Lux, F1.6, AGC ON 0 Lux with IR enabled |
| Lens | 2.8mm to 12mm motorized varifocal lens |
| Horizontal Field of View | 107.8° to 36.5° |
| Vertical Field of View | 58.5° to 20.5° |
| Diagonal Field of View | 127.0° to 41.3° |
| Day/Night | IR-cut filter with automatic ICR switch |
| LightHunter | Supported |
| Video | |
| Video Resolutions | 5MP: 2880 × 1620 5MP: 2592 × 1944 4MP: 2560 × 1440 1080P: 1920 × 1080 |
| CVI Frame Rates | 5MP at 25fps, 5MP at 20fps, 4MP at 25fps, 4MP at 30fps, 1080P at 25fps and 1080P at 30fps |
| TVI Frame Rates | 5MP at 20fps, 4MP at 25fps, 4MP at 30fps, 1080P at 25fps and 1080P at 30fps |
| AHD Frame Rates | 5MP at 20fps, 4MP at 25fps, 4MP at 30fps, 1080P at 25fps and 1080P at 30fps |
| CVBS | PAL and NTSC |
| Shutter Time | PAL: 1/25s to 1/50000s NTSC: 1/30s to 1/50000s |
| Image Functions | |
| Exposure Modes | Global, BLC, HLC and WDR |
| Day/Night Modes | Auto, day and night |
| Digital Noise Reduction | 2D/3D digital noise reduction |
| White Balance | Auto and manual |
| WDR | 120dB |
| Smart IR | Supported |
| Image Flip | 180° horizontal flip and 180° vertical flip |
| OSD Menu | Supported in 11 languages |
| Infrared Illumination | |
| IR Illuminators | Two IR illuminators |
| IR Distance | Up to 30m |
| IR LED Lifetime | Up to 60000 hours |
| Audio | |
| Built-in Microphone | Supported |
| Audio Transmission | Audio and video synchronous transmission over coaxial cable |
| Camera Audio | Supported through CVI |
| Interfaces | |
| Video Output | BNC, supporting TVI, AHD, CVI and CVBS |
| Power Interface | 5.5mm power interface |
| Power | |
| Power Supply | DC 12V ±25% |
| Power Consumption | Maximum 4.7W |
| Mechanical and Environmental | |
| Housing | Metal and plastic dome housing |
| Protection Rating | IP67 dustproof and waterproof; IK10 vandal resistance |
| Mounting | Wall mount, pole mount, corner mount and pendant mount |
| Dimensions | Ø128 × 100mm (Ø5.0" × 3.9") |
| Weight | 530g (1.17lb) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | Up to 95% RH, non-condensing |
| Surge Protection | 4kV for power and 4kV for video output interfaces |
| Certifications and Accessories | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE, IP67 and IK10 compliance |
| Optional Accessories | TR-A01-IN waterproof cable gland TR-CM24-IN indoor dome pendant mounting bracket TR-JB03-H-IN-V2 junction box TR-SE24-A-IN 500mm dome pendant mounting pole TR-SE24-IN 200mm dome pendant mounting pole TR-UC08-C-V2 bullet and dome corner mounting bracket TR-JB07/WM03-F-IN-V2 wall mounting assembly bracket TR-WM03-B-IN-V2 wall mounting assembly bracket HS-207S sunshade shell for zoom dome PWR-DC1201A/B power adapters |
