UNV - UAC-P112-AF40-W - 2MP Dual Light Analog 2-Way Talk Bullet 2.8mm
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP66 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports 0 to 345° pan range, 0 to 90° tilt range
• Supports digital defog
| Camera | |
| Max Resolution | 2 MP |
| Sensor Size | 1/2.9" CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) |
| Lens | |
| Focus | 4.0 mm |
| Lens Mount | M12 |
| Angle of View (Horizontal) | 83.8° |
| Angle of View (Vertical) | 42.7° |
| Angle of View (Diagonal) | 100.1° |
| Illuminator | |
| Illuminator Number | Eight white-light illuminators |
| Illumination Distance | 30m |
| Lifetime | ≥ 20,000 hours |
| Video | |
| Resolution | 1080P: 1920(H) × 1080(V) 720P: 1280(H) × 720(V) |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s - 1/50000s NTSC: 1/30s - 1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Digital Defog | Support |
| PTZ | |
| Pan Range | 0° to 345° |
| Pan Speed | 1° to 40°/s |
| Tilt Range | 0° to 90° |
| Tilt Speed | 1° to 30°/s |
| Number of Presets | 32 |
| Control Mode | 485/BNC |
| Patrol | N/A |
| Baud Rate | 9600 bps / 4800 bps / 2400 bps / 1200 bps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| RS485 | Support |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces, 6 kV for RS485 interface |
| Ingress Protection | IP66 |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 8.5W |
| Mount | Wall Mount, Pendant Mount |
| Dimensions | Φ118 mm × 190 mm (diameter × height) |
| Material | Graphene + Plastic |
| Weight | 477 g (1.05 lb) |

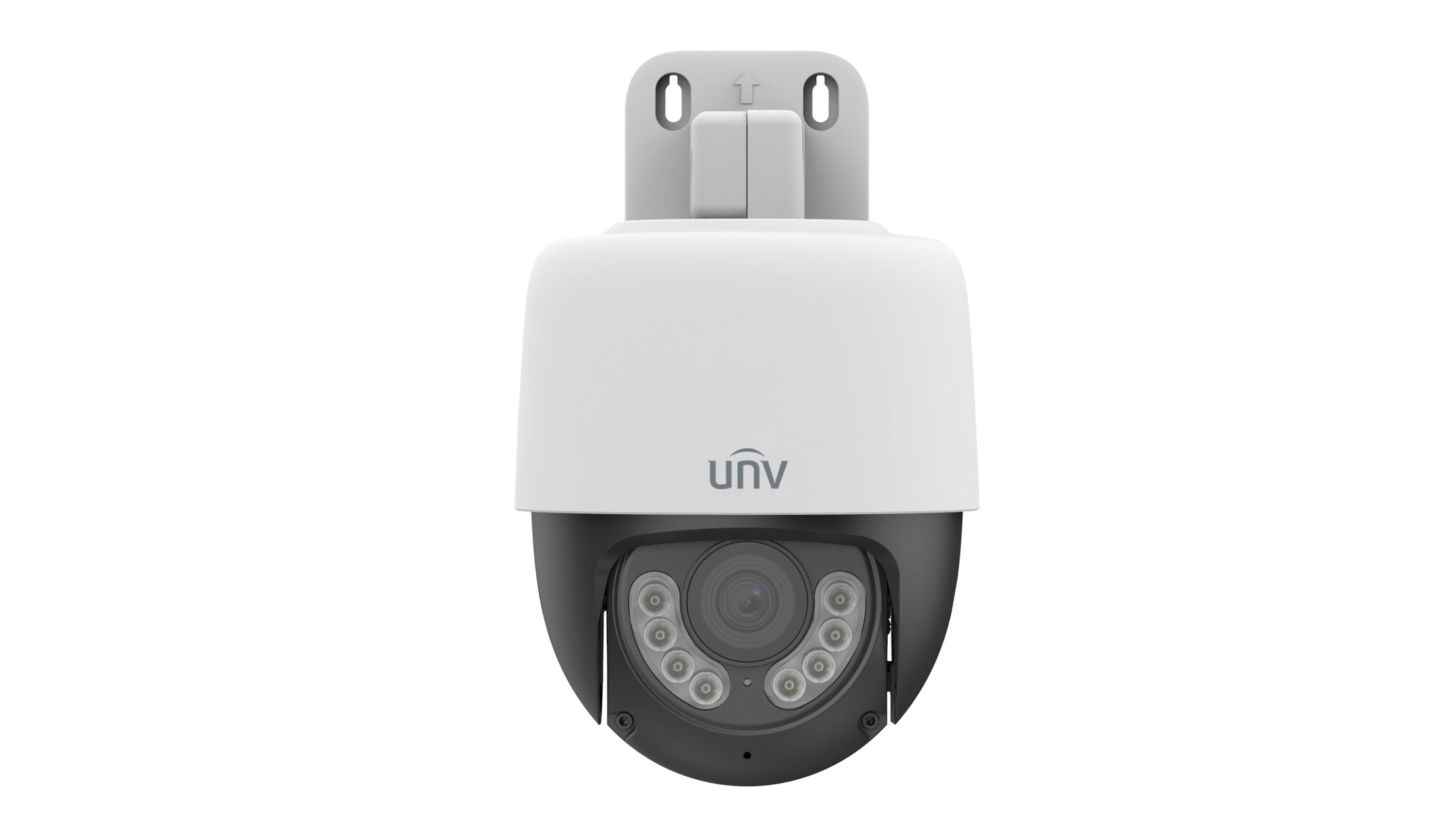

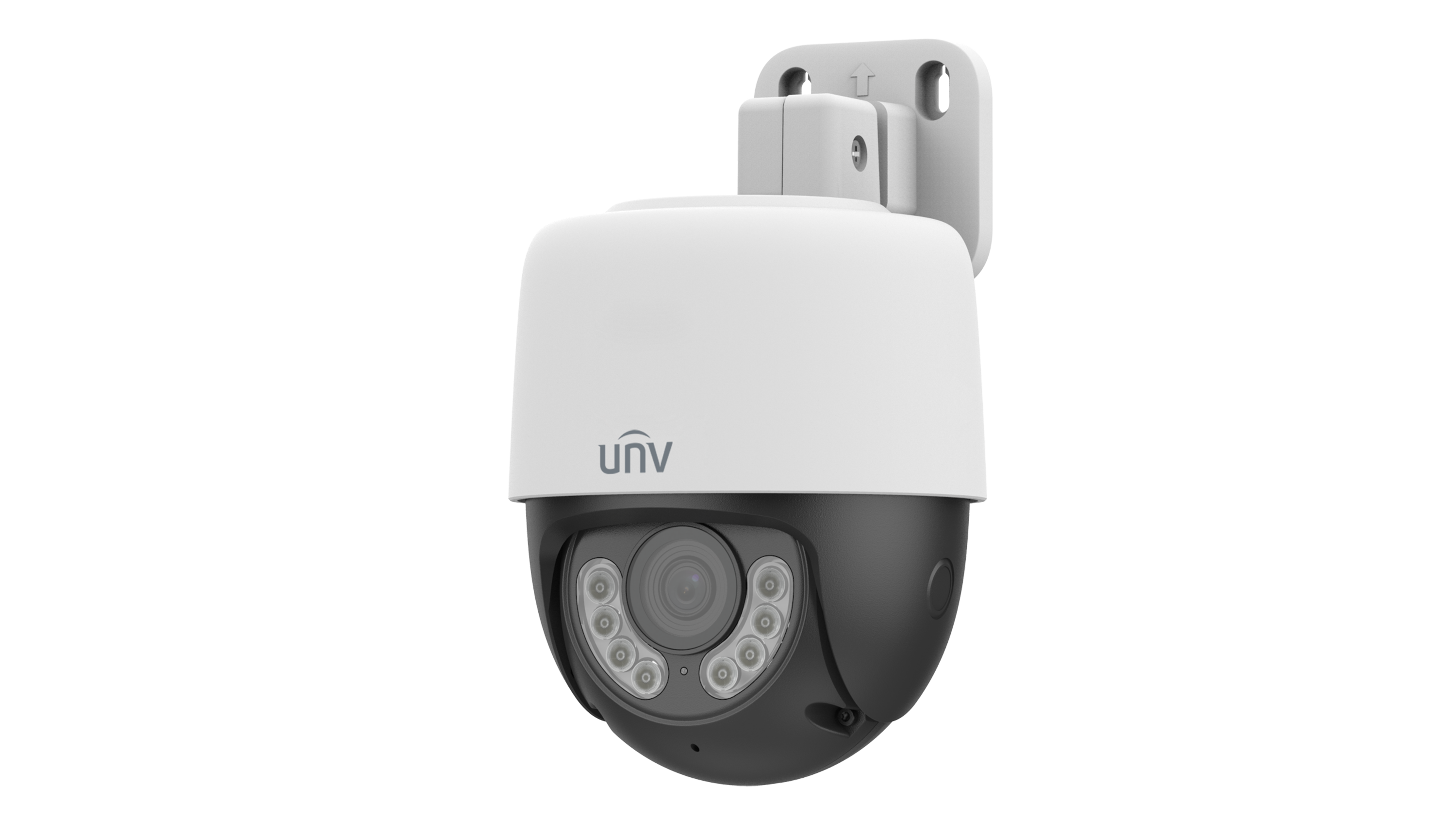

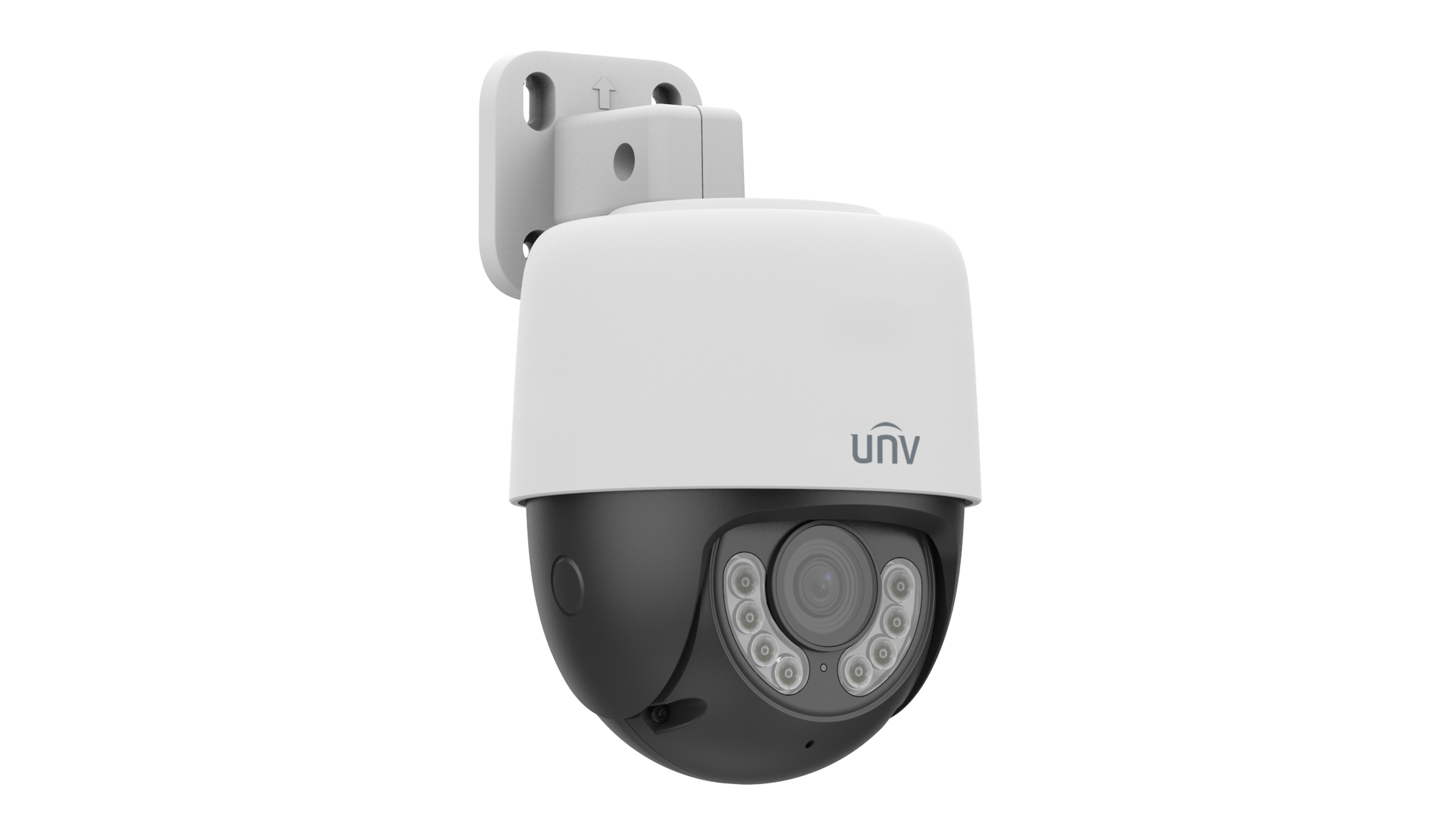

This is a 2MP analog HD speed dome camera. It features a 1/2.9" CMOS sensor and a 4.0mm fixed lens, providing an 83.8° horizontal field of view. It supports multiple analog HD formats (TVI, AHD, CVI) and standard CVBS output via a BNC connector, with a maximum resolution of 1080P at 30 frames per second. For 24/7 color imaging, it uses eight white-light LEDs with a range of 30 meters instead of infrared.
Its defining feature is PTZ functionality, with a pan range of 0° to 345° and a tilt range of 0° to 90°. It supports 32 preset positions and is controlled via an RS485 interface. Imaging features include Digital WDR, 2D/3D Digital Noise Reduction, and Digital Defog. The housing is constructed from graphene and plastic with an IP66 protection rating. It operates within a temperature range of -30°C to 60°C. It is powered by a DC 12V source with a maximum power consumption of 8.5 watts.
