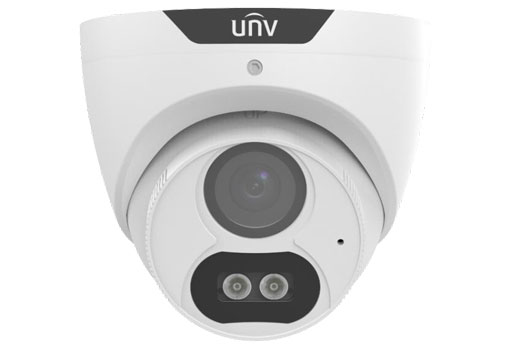

UNV - UAC-T125-AF28-W - 5MP ColourHunter HD Fixed Eyeball Analog Camera
Part number:
UAC-T125-AF28-W
Price:
UNV 5MP White Light Analog Turret 2.8mm
Features:
- • 5MP high quality imaging
- • TVI/AHD/CVI/CVBS
- • Supports white light illumination, 24/7 color images
- • Supports 180° horizontal flip, 180° vertical flip
- • OSD configuration menu, easy to operate
- • IP67 waterproof and dustproof design, high reliability
- • OSD configuration menu in 11 languages
- • Built-in microphone for high quality audio transmission via coaxial cables
- • Metal front face and housing
- • 3-Axis
| Camera | |
|---|---|
| Max Resolution | 5 MP |
| Sensor Size | 1/2.7" CMOS |
| Min. Illumination | 0.005 lux (F1.4, AGC ON) 0 lux (white light on) |
| Lens | |
| Focus | 2.8 mm |
| Lens Mount | M12 |
| Angle of View (H) | 111.5° |
| Angle of View (V) | 58.9° |
| Angle of View (D) | 134.8° |
| Illuminator | |
| Illuminator Number | Two white-light illuminators |
| Illumination Distance | 40 m |
| Lifetime | ≥ 60000 hours |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s – 1/50000s NTSC: 1/30s – 1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital Noise Reduction | 2D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces |
| Ingress Protection | IP67 |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 3.28 W |
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
| Dimensions | Φ111 mm × 96 mm (diameter × height) |
| Material | Metal |
| Weight | 356 g (0.79 lb) |
