Product Overview

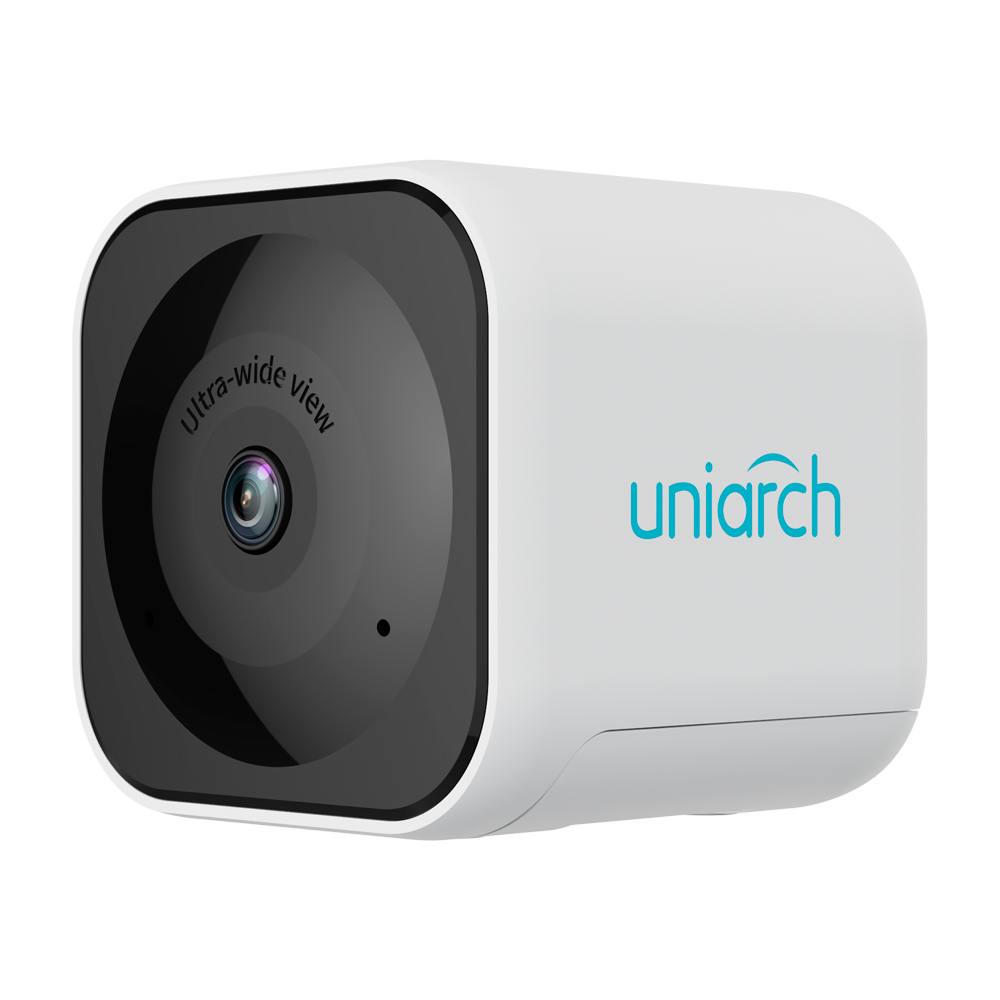

The Uniview Uho-C1-M3F2 is a compact 3MP Wi-Fi cube camera with a 1/3.0-inch CMOS sensor, fixed 2.1mm lens, and 120.1° horizontal field of view. It provides Smart IR night vision, human and pet detection, two-way audio, and wireless connectivity for flexible monitoring applications.
The camera includes a magnetic base for quick positioning, microSD storage up to 512GB, built-in microphone and speaker, and a compact plastic housing measuring 60 × 60 × 60mm.
Key Configuration
Model: Uho-C1-M3F2 | Resolution: 3MP, 2304 × 1296 at 15fps | Lens: Fixed 2.1mm, 120.1° horizontal field of view | Connectivity: 2.4GHz IEEE 802.11b/g/n Wi-Fi, USB Type-A to Type-C power | Storage: MicroSD up to 512GB
Key Features
- · 3MP video with 1/3.0-inch CMOS sensor
- · Fixed 2.1mm lens with 120.1° horizontal, 65.9° vertical, and 141.6° diagonal field of view
- · Smart IR illumination up to 10m using 850nm infrared LEDs
- · Human and pet detection with ultra-motion detection
- · Built-in microphone and speaker with two-way audio
- · H.265 and H.264 video compression with dual streams and ROI support
- · MicroSD storage support up to 512GB
- · 2.4GHz IEEE 802.11b/g/n Wi-Fi with built-in antenna
- · Magnetic base for flexible positioning and simple installation
- · Compact plastic housing, 60 × 60 × 60mm, weighing 0.09kg
Technical Context
The camera uses wireless 2.4GHz connectivity to transmit dual-stream video without a wired network connection. Human and pet detection helps distinguish relevant movement, while Smart IR automatically supports night monitoring in low-light scenes. Local microSD recording provides onboard storage for captured video.
Installation Notes
Power the camera using 5V/1A through the USB Type-A to Type-C interface. Position it on a suitable flat or magnetic surface and connect it to a 2.4GHz Wi-Fi network. The camera operates from -10°C to 50°C with up to 95% non-condensing humidity; use it in a protected installation environment because no IP weather-resistance rating is specified.
| Product Information | |
| Model | Uho-C1-M3F2 |
| Product Type | 3MP Wi-Fi cube network camera |
| Special Features | Built-in microphone and speaker, two-way audio, magnetic base, human detection and pet detection |
| Camera and Lens | |
| Maximum Resolution | 3MP |
| Image Sensor | 1/3.0" CMOS |
| Minimum Illumination | Color: 0.003 Lux, F2.0, AGC ON 0 Lux with IR enabled |
| Lens | 2.1mm fixed lens |
| Aperture | F2.0 |
| Field of View | Horizontal: 120.1° Vertical: 65.9° Diagonal: 141.6° |
| Day/Night | IR-cut filter with automatic switch |
| Shutter | Auto/manual, 1 to 1/100000s |
| Image Flip | Normal, vertical flip, horizontal flip and 180° rotation |
| DORI Distance | |
| Detect | 38.6m (126.5ft) |
| Observe | 15.4m (50.6ft) |
| Recognize | 7.7m (25.3ft) |
| Identify | 3.9m (12.7ft) |
| Infrared Illumination | |
| Illumination Type | IR |
| IR Distance | Up to 10m (32.8ft) |
| IR Wavelength | 850nm |
| IR Control | Automatic/manual |
| Smart IR | Supported |
| Video | |
| Video Compression | H.265 and H.264 |
| Main Stream | 2304 × 1296 at 15fps |
| Sub Stream | 640 × 360 at 15fps |
| Video Streams | Dual streams |
| U-Code | Supported |
| ROI | Not available |
| OSD | Up to 1 OSD |
| Audio | |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Two-Way Audio | Supported |
| Audio Compression | G.711U |
| Audio Bit Rate | 64Kbps |
| Noise Suppression | Supported |
| Sampling Rate | 8kHz |
| Intelligent Functions | |
| Basic Detection | Ultra Motion Detection, human detection and pet detection |
| Storage and Network | |
| Edge Storage | MicroSD card up to 512GB |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Frequency Range | 2.4GHz to 2.4835GHz |
| Channel Bandwidth | 20MHz |
| Modulation | 802.11b: CCK, QPSK and BPSK 802.11g/n: OFDM/HT |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK and WPA2-PSK |
| Transmission Rate | 802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 72.2Mbps |
| Network Integration | API support |
| Client | Mobile application |
| Wireless Antenna | Built-in antenna |
| Interfaces and Power | |
| USB Interface | USB Type-A to Type-C interface |
| Video Output | Not available |
| Power Supply | DC 5V/1A |
| Power Consumption | Maximum 2.2W |
| Reset Button | Supported |
| LED Indicator | 1 indicator, red/blue |
| Mechanical and Environmental | |
| Housing Material | Plastic |
| Installation | Magnetic base |
| Dimensions | 60 × 60 × 60mm (2.4" × 2.4" × 2.4") |
| Weight | 0.09kg (0.2lb) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -10°C to 50°C (14°F to 122°F) |
| Humidity | Up to 95% RH, non-condensing |
| Certifications | |
| Certifications | FCC ID, FCC, CE RED, CE-EMC, CE LVD, CE-RoHS and WEEE |
