Product Overview

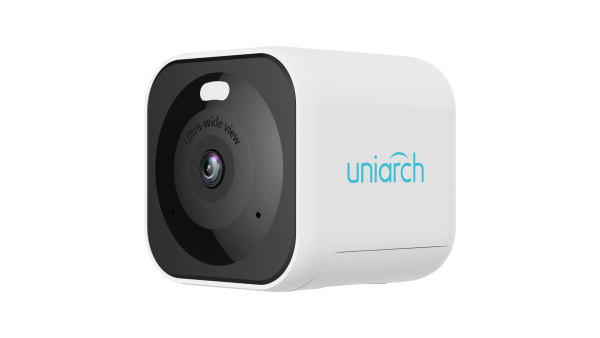

The Uniview Uho-C1-M4F2D is a compact 4MP Wi-Fi cube camera with a 1/3.0-inch CMOS sensor and fixed 2.1mm lens. It combines IR and warm-light illumination, human, vehicle, and pet detection, crying and high-decibel detection, and Wi-Fi 6 connectivity for flexible indoor monitoring.
The camera includes a built-in microphone and speaker for two-way audio, TicOn connection support, microSD storage up to 512GB, and a magnetic base for simple positioning.
Key Configuration
Model: Uho-C1-M4F2D | Resolution: 4MP, 2560 × 1440 at 15fps | Lens: Fixed 2.1mm, 132.2° horizontal field of view | Connectivity: 2.4GHz IEEE 802.11b/g/n/ax Wi-Fi 6 | Storage: MicroSD up to 512GB
Key Features
- · 4MP imaging with 1/3.0-inch CMOS sensor
- · Fixed 2.1mm lens with 132.2° horizontal, 71.5° vertical, and 157.7° diagonal field of view
- · IR and warm-light dual illumination up to 10m
- · Human, vehicle, and pet detection with ultra-motion detection
- · Crying detection and high-decibel detection for audio-event monitoring
- · Built-in microphone and speaker with two-way audio
- · H.265 and H.264 compression with dual streams and ROI support
- · MicroSD storage support up to 512GB
- · 2.4GHz IEEE 802.11b/g/n/ax Wi-Fi 6 with built-in antenna
- · TicOn connection support and magnetic base for flexible installation
Technical Context
The camera uses 2.4GHz Wi-Fi 6 to provide a fast and stable wireless connection while dual-light illumination supports both discreet infrared monitoring and color imaging with warm light. AI detection distinguishes people, vehicles, and pets, while audio analytics can identify crying and high-decibel events.
Installation Notes
Power the camera using 5V/1.5A through the USB Type-A to Type-C interface. Position it on a suitable flat or magnetic surface and connect it to a 2.4GHz Wi-Fi network. The camera measures 60 × 60 × 60mm, weighs 0.09kg, and operates from -10°C to 50°C with up to 95% non-condensing humidity; use it in a protected installation environment because no IP weather-resistance rating is specified.
| Product Information | |
| Model | Uho-C1-M4F2D |
| Product Type | 4MP Wi-Fi cube network camera |
| Special Features | Wi-Fi 6, dual-light illumination, built-in microphone and speaker, two-way audio, magnetic base and TicOn connection |
| Camera and Lens | |
| Maximum Resolution | 4MP |
| Image Sensor | 1/3.0" CMOS |
| Minimum Illumination | Color: 0.003 Lux, F2.0, AGC ON 0 Lux with IR enabled |
| Lens | 2.1mm fixed lens |
| Aperture | F2.0 |
| Field of View | Horizontal: 132.2° Vertical: 71.5° Diagonal: 157.7° |
| Day/Night | IR-cut filter with automatic switch |
| Shutter | Auto/manual, 1 to 1/100000s |
| Image Flip | Normal, vertical flip, horizontal flip and 180° rotation |
| DORI Distance | |
| Detect | 47.3m (155.0ft) |
| Observe | 18.9m (62.0ft) |
| Recognize | 9.5m (31.0ft) |
| Identify | 4.7m (15.5ft) |
| Dual-Light Illumination | |
| Illumination | IR and warm light |
| Illumination Distance | Up to 10m (32.8ft) |
| IR Wavelength | 850nm |
| IR Control | Automatic/manual |
| Supplemental Light | Dual light |
| Video | |
| Video Compression | H.265 and H.264 |
| Main Stream | 2560 × 1440 at 15fps |
| Sub Stream | 640 × 360 at 15fps |
| Video Streams | Dual streams |
| U-Code | Supported |
| OSD | Up to 1 OSD |
| ROI | Not available |
| Audio | |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Two-Way Audio | Supported |
| Audio Compression | G.711U |
| Audio Bit Rate | 64Kbps |
| Noise Suppression | Supported |
| Sampling Rate | 8kHz |
| Intelligent Functions | |
| Basic Detection | Ultra Motion Detection, human detection, vehicle detection and pet detection |
| Audio Detection | Crying detection and high-decibel detection |
| Storage and Network | |
| Edge Storage | MicroSD card up to 512GB |
| Network Protocols | ICMP, ARP, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP and IPv4 |
| Wi-Fi Standard | IEEE 802.11b/g/n/ax |
| Frequency Range | 2.4GHz to 2.4835GHz |
| Channel Bandwidth | 20/40MHz |
| Modulation | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA |
| Wi-Fi Security | WPA-PSK and WPA2-PSK |
| Transmission Rate | 802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 150Mbps 802.11ax: up to 270Mbps |
| Network Integration | API support |
| Client | Mobile application |
| Wireless Antenna | Built-in antenna |
| Interfaces and Power | |
| USB Interface | USB Type-A to Type-C interface |
| Video Output | Not available |
| Power Supply | DC 5V/1.5A |
| Power Consumption | Maximum 2.9W |
| Reset Button | Supported |
| LED Indicator | 1 indicator, red/blue |
| Mechanical and Environmental | |
| Housing Material | Plastic |
| Installation | Magnetic base |
| Dimensions | 60 × 60 × 60mm (2.4" × 2.4" × 2.4") |
| Weight | 0.09kg (0.2lb) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -10°C to 50°C (14°F to 122°F) |
| Humidity | Up to 95% RH, non-condensing |
| Certifications | |
| Certifications | CE-EMC, FCC, FCC ID, CE RED, CE LVD, CE-RoHS and WEEE |
