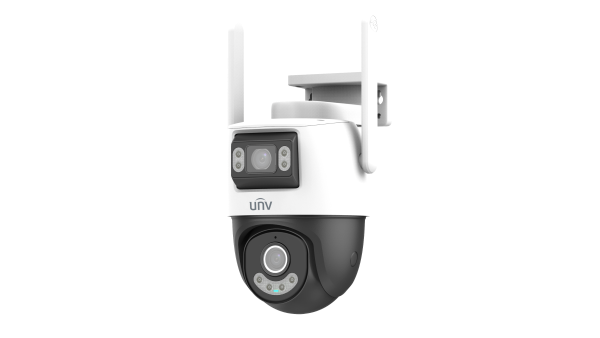

UNV - Uho-P2S-M55F34 - 5MP+5MP HD Outdoor Dual lens PT Wi Fi Camera
Product Overview
The Uniview Uho-P2S-M55F34-U is a 5MP+5MP dual-lens PT Wi-Fi camera that combines a fixed panoramic channel with a remotely controllable detail channel under one IP address. It allows operators to monitor the overall scene while using the PTZ channel for closer inspection and targeted tracking.
The camera provides dual-light illumination, two-way audio, sound and light warnings, Wi-Fi 6 connectivity, microSD recording, and IP66 protection for outdoor monitoring applications.
Key Configuration
Model: Uho-P2S-M55F34-U | Resolution: Dual 5MP channels, up to 2880 × 1620 at 15fps | Lenses: Panorama 2.8mm fixed lens and detail 4.0mm PT lens | Connectivity: 2.4GHz IEEE 802.11b/g/n/ax Wi-Fi 6, RJ45 10/100M Ethernet | Protection: IP66
Key Features
- · Dual 5MP panoramic and detail imaging with one network address
- · Panorama channel with 2.8mm lens and detail channel with 4.0mm lens
- · PT detail channel with 350° pan range and 90° tilt range
- · IR illumination up to 30m and warm-light illumination up to 10m
- · Digital WDR, 2D/3D noise reduction, Smart IR, and digital defog
- · Ultra 265, H.265, and H.264 compression with dual streams and ROI support
- · Built-in microphone and speaker with two-way audio
- · Sound and light warning with integrated red and blue warning lights
- · MicroSD storage up to 512GB with ANR support
- · 2.4GHz IEEE 802.11b/g/n/ax Wi-Fi 6 with built-in antenna
Technical Context
The dual-lens design combines a wide panoramic view with a motorized detail channel. The fixed channel maintains broad situational awareness, while the PT channel can pan and tilt toward areas of interest for closer observation. This architecture provides simultaneous overview and detail monitoring without requiring separate camera addresses.
Installation Notes
Power the camera using DC 12V ±25% and connect it to a 2.4GHz Wi-Fi network or the 10/100M RJ45 interface. The camera measures 117 × 157 × 202mm, weighs 0.62kg, and operates from -30°C to 60°C with up to 95% non-condensing humidity. Install it on a suitable protected surface and maintain clear space for PTZ movement.
| Product Information | |
| Model | Uho-P2S-M55F34-U |
| Product Type | 5MP + 5MP HD outdoor dual-lens PT Wi-Fi camera |
| Camera Configuration | Panorama camera and detail PTZ camera integrated into one device with one IP address |
| Special Features | Dual-light illumination, built-in microphone and speaker, two-way audio, sound and light warning, Wi-Fi connection and IP66 protection |
| Camera and Lens | |
| Image Sensor | 1/3.0" CMOS |
| Minimum Illumination | Color: 0.003 Lux, F1.6, AGC ON 0 Lux with IR enabled |
| Panorama Lens | 2.8mm fixed lens |
| Detail Lens | 4× optical zoom |
| Aperture | F1.6 |
| Panorama Field of View | Horizontal: 94.9° Vertical: 53.7° Diagonal: 100.5° |
| Detail Field of View | Horizontal: 80.6° Vertical: 44.8° Diagonal: 86.7° |
| Day/Night | IR-cut filter with automatic ICR switch |
| Shutter | Auto/manual, 1 to 1/100000s |
| WDR | DWDR |
| Signal-to-Noise Ratio | >52dB |
| DORI Distance | |
| Detect | Panorama: 63.0m (206.7ft) Detail: 90.0m (295.3ft) |
| Observe | Panorama: 25.2m (82.7ft) Detail: 36.0m (118.1ft) |
| Recognize | Panorama: 12.6m (41.3ft) Detail: 18.0m (59.1ft) |
| Identify | Panorama: 6.3m (20.7ft) Detail: 9.0m (29.5ft) |
| Dual-Light Illumination | |
| Illumination | IR and warm light |
| IR Distance | Up to 30m (98.4ft) |
| Warm Light Distance | Up to 10m (32.8ft) |
| IR Wavelength | 850nm |
| Light Control | Automatic/manual |
| Video | |
| Maximum Resolution | 5MP |
| Main Stream | 5MP: 2880 × 1620 at 15fps 4MP: 2560 × 1440 at 15fps 3MP: 2304 × 1296 at 15fps 2MP: 1920 × 1080 at 15fps 720P: 1280 × 720 at 15fps |
| Sub Stream | 640 × 360 at 15fps 2CIF: 704 × 288 at 15fps CIF: 352 × 288 at 15fps |
| Video Compression | Ultra 265, H.265 and H.264 |
| Video Bit Rate | 128Kbps to 2048Kbps |
| ROI | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Video Streams | Dual streams |
| Privacy Mask | Supported through NVR |
| Image Functions | |
| White Balance | Auto, outdoor, fine tune, sodium lamp, locked and Auto2 |
| Noise Reduction | 2D/3D digital noise reduction |
| Image Flip | Normal, vertical flip, horizontal flip and 180° rotation |
| Defog | Digital defog |
| Intelligent Functions | |
| Basic Detection | Motion detection, Ultra Motion Detection, tampering alarm and high-decibel detection |
| General Security Functions | IP address filtering, access policy, ARP protection, RTSP authentication and HTTP authentication |
| PTZ Functions | |
| Tilt Range | Panorama: -5° to 30° Detail: 0° to 90° |
| Pan Range | Panorama: -150° to 150° Detail: 0° to 350° |
| Tilt Speed | 1°/s to 30°/s; preset speed: 30°/s |
| Pan Speed | 1°/s to 40°/s; preset speed: 40°/s |
| Presets | 20 presets |
| Audio and Storage | |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Two-Way Audio | Supported |
| Audio Compression | G.711U and G.711A |
| Audio Bit Rate | 64Kbps |
| Sampling Rate | 8kHz |
| Edge Storage | MicroSD card up to 512GB |
| Network Storage | ANR support |
| Network and Wi-Fi | |
| Network Interface | 1 × RJ45 10/100 Base-TX Ethernet port |
| Network Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP and UPnP |
| Wi-Fi Standard | IEEE 802.11b/g/n/ax |
| Frequency Range | 2.4GHz to 2.4835GHz |
| Channel Bandwidth | 20/40MHz |
| Modulation | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK and WPA2-PSK |
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps 802.11ax: up to 270Mbps |
| Integration | API support |
| Client Applications | Mobile application and EZStation |
| Power and Interfaces | |
| Power Supply | DC 12V ±25% |
| Power Consumption | Maximum 11.5W |
| Power Interface | Ø5.5mm coaxial power plug |
| Reset Button | Supported |
| LED Indicator | 1 indicator, red/blue |
| Mechanical and Environmental | |
| Protection Rating | IP66 |
| Dimensions | 117 × 157 × 202mm (4.6" × 6.2" × 7.9") |
| Weight | 0.62kg (1.36lb) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | Up to 95% RH, non-condensing |
| Surge Protection | 4kV |
| Certifications | |
| Certifications | CE-EMC, FCC, FCC ID, CE RED, CE LVD, CE-RoHS and WEEE |
