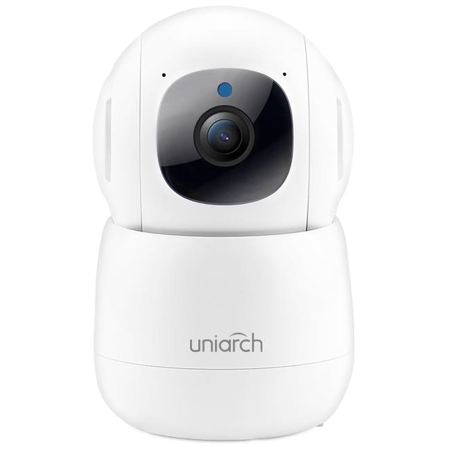

Uniview - Uho-S1@US - Smart PT Camera
Part number:
Uho-S1@US
Price:
Uniarch Smart PT Camera
Features:
- Easy to install and use.
- Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the network.
- Online firmware upgrade, and synchronous updating of the functions and experience.
- Two-way audio supported.
- Remote real-time monitoring supported with Android and iOS smart phones.
- IR light for night vision; 24h round-the-clock monitoring.
- Intelligent push to filter out useless information.
- QR code intelligent connection.
- Supporting human detection, pet snapshot and activity zone.
| Model | Uho-S1 |
| Camera | |
| Sensor | 1/3" color CMOS sensor, 2.0 megapixel. |
| Lens | 3.6mm@F2.0 |
| Angle of View | H (horizontal) 85°; V (vertical) 48°; D (diagonal) 100°. |
| Minimum Illumination | 0.01Lux |
| IR Range | Up to 7m IR range |
| Audio | |
| Input / Output | Two-way audio available (built-in microphone and speaker). |
| Video | |
| Video Compression | H.264/H.265 |
| Lighting frequency | 50Hz, 60Hz |
| Image | FHD:1920*1080@15fps/10fps(IR mode) SD:640*360@15fps/10fps(IR mode) |
| Network | |
| Protocols | TCP/IP, UDP/IP |
| Wireless Network | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna. |
| IP Address | DHCP |
| Interface | |
| Power Supply | 1 Micro USB interface, DC 5V/1A |
| SD card | 1 Micro SD card slot |
| Keys | 1 Reset key |
| Storage | |
| Cloud storage | Supported* |
| SD card storage | Supported (up to 128 GB) |
| Intelligent functions | |
| Motion detection | Supported |
| Motion tracking | Supported |
| Intelligent push | Supported* |
| Pet detection | Supported* |
| Human detection | Supported* |
| Alarm | |
| Alarm linkage | Support video recording, sound alarm. |
| Alarm notification | Alarm push by mobile APP. |
| General | |
| Mount method | Ceiling or wall mounted |
| Dimensions (L × W × H) | 72.3 × 72.3 × 115.5mm |
| Weight | 180g |
| Working Environment | -10°C ~ 45°C /10% ~ 80% (no condensation) |
| Storage Environment | -20°C ~ 60°C /0% ~ 90% (no condensation) |
| Pan and Tilt | H (horizontal) 0° ~ 355°; V (vertical) -20° ~ 90° |
| LED indication | Monochrome white light |
