UNV - SMBOX02-PMD/SMBOX01-PMD-US- Overseas Intelligent Operation&Maintenance Box
Product Overview

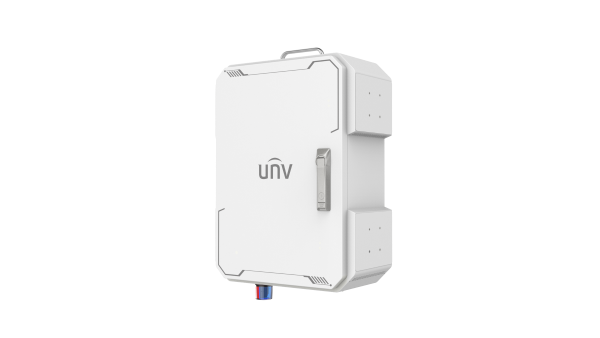

The Uniview SMBOX02 is an integrated smart management box that combines power distribution, network-device control, fan, warning-light connections, and environmental management in one enclosure. It is designed for compatible IPC and IP speaker installations and supports remote status monitoring and alarm notifications through the mobile app and EZCloud platform.
The DC-powered unit provides automatic network-device restart, pre-wired power interfaces, three-layer electrical protection, IP56 environmental protection, and dedicated mounting space for supported cameras, speakers, and 4G routers.
Key Configuration
Model: SMBOX02 | Input: DC 10.8–14.4V, 12A | Power Outputs: DC12V 2.5A and DC48V 2.5A | Protection: 40kA lightning protection, 6kV surge protection, circuit breaker, overvoltage and overload protection | Enclosure: 650 × 424 × 230mm, IP56
Key Features
- · Integrated smart power management, power switch, fan, and warning-light control
- · DC input range of 10.8–14.4V with 12A input capacity
- · Dedicated DC12V 2.5A router power interface
- · DC10.8–14.4V to DC48V 2.5A output through a 2-pin Phoenix terminal
- · Automatic network restart when a connected device loses network communication
- · Remote status monitoring, alarm notifications, fault reporting, and power-information collection
- · Thermostatic fan control and warning-light power interface
- · Three-layer protection with surge protector, circuit breaker, and software protection
- · 40kA lightning protection, 20kA maximum discharge current, and 6kV surge protection
- · Pre-wired integrated design for simplified installation and reduced field wiring
Technical Context
The smart management box centralizes DC power and environmental control for connected surveillance equipment. Its controller monitors power status, controls the fan, detects door opening, reports faults, operates the warning light, and can restart network devices automatically after a communication failure.
Installation Notes
Provide a DC 10.8–14.4V supply through the 3-pin connector. The 4G router compartment provides 190mm width and 55mm depth; use a DC12V router with at least three LAN ports and total power consumption not exceeding 30W. The enclosure measures 650 × 424 × 230mm, weighs 14kg without a camera, and operates from -40°C to 70°C with up to 90% non-condensing humidity. Use compatible camera, IP speaker, junction-box, and mounting accessories for the selected installation.
| Product Information | |
| Model | SMBOX02 |
| Product Type | Smart Management Box with power management, network restart, protection and warning functions |
| Mounting Space | 225 × 185 × 63mm available internal mounting space |
| Power Input | |
| Input Type | DC 10.8–14.4V, 12A |
| Input Port | 3-pin connector |
| Power Outputs | |
| AC Socket | Not available |
| DC 12V Output | 1× 2.5A DC5521 output for router power |
| DC 48V Output | DC 10.8–14.4V to DC 48V, 2.5A, via 2-pin Phoenix terminal |
| Router Power Interface | DC 12V, 2.5A |
| Warning Light Interface | DC 12V, 2.5A |
| Management and Protection Functions | |
| System Functions | Power information collection, power-switch detection and control, thermostatic fan, automatic network restart, door-open detection, warning light and fault reporting |
| Automatic Network Restart | Automatically powers off and restarts connected network devices when a network disconnection is detected |
| Remote Management | Remote status monitoring and alarm notifications via mobile application and EZCloud |
| Protection Mechanism | Surge protector, circuit breaker and software protection |
| Maximum Discharge Current | 40kA |
| Rated Discharge Current | 20kA |
| Response Time | L-PE: 25ns N-PE: 25ns |
| Surge Protection | 6kV |
| Environmental and Mechanical | |
| Protection Rating | IP56 |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | Up to 90% RH, non-condensing |
| Dimensions | 650 × 424 × 230mm (H × W × D) |
| Weight | 14kg (30.86lb), without camera |
| Enclosure | Stainless-steel enclosure; custom versions available for NEMA 4X requirements |
| Router Compartment | Depth: 55mm Width: 190mm |
| Router Requirements | 4G router with DC 12V round-plug power supply, power consumption not exceeding 30W and at least 3 LAN ports |
| Power Consumption | |
| No-Load Consumption | 4.6W at 25°C, without HDD heating, fan or warning light |
| Full-Load Consumption | 12.6W at 25°C, with fan and warning light active |
| Compatible Mounting | |
| Left Side | Up to 2 units; supports TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN and TR-JB07-D-IN-V2 |
| Right Side | Up to 2 units with the same compatible brackets |
| Bottom | Up to 1 unit; supports TR-UF45-A-IN for 4-inch PTZ cameras and cannot be installed simultaneously with an IP Speaker |
| Top | Supports IP Speaker installation without a mounting bracket |
| Certifications | |
| Certifications | CE-EMC and FCC |
