Uniview - URDB1 - UNV 2MP Video Doorbell
Part number:
URDB1
Price:
UNV 2MP Video Doorbell
Features:
- Adjustable Motion Detection
- Crystal-clear 1080P HD Video
- Noise-free Two-Way talk
- Quick and easy installation
- Instantaneous Alert and Answer
- Interchangeable Faceplates
- Infrared Night Vision
- Highly Reliable Outdoor Use
| Video | Video Compression H.265, H.264 |
| H.264 code profile Baseline Profile, Main Profile | |
| Frame Rate Main Stream: 1080P (1920*1080), Max 25fps; Sub Stream: D1 (720*576), Max 25fps | |
| Motion Detection Supported | |
| Storage | Edge Storage Micro SD, up to 128GB |
| Wi-Fi | Wireless Standards IEEE 802.11b/g/n |
| Frequency Range 2.4GHz ~ 2.4835GHz | |
| Interface | Built-in Mic Supported |
| Built-in Speaker Supported | |
| Audio Compression G.711 | |
| Sampling Rate 8kHZ | |
| Indicator light Supported |
Camera
| Sensor | 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.0mm@F2.0 |

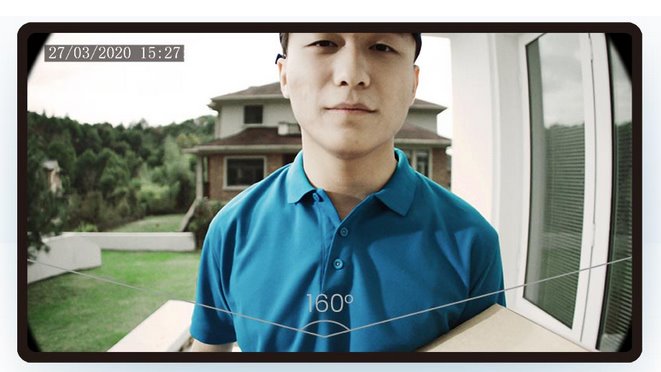

| Angle of View (H) | 160° |
| Angle of View (V) | 83° |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 5m (16ft) IR range |
| WDR | DWDR |
General
| Dimensions (L × W × H) | 46.8 × 23.5 × 123.2mm (1.8” × 0.9” × 4.9”) |
| Weight | 0.11kg (0.24lb) |
| Working Environment | -30°C ~ 50°C (-22°F ~ 122°F), Humidity: ≤95% RH(non-condensing) |
| Ingress Protection | IP65 |
| Reset Button | Supported |
| Call Button | Supported |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Manual
1.5mb
