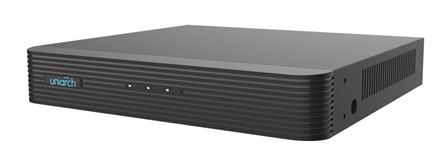

Uniview - XVR-104G2 - 1 SATA XVR, 4CH, 5MP Lite
Part number:
XVR-104G2
Price:
1 SATA XVR, 4CH, 5MP Lite
Feature:
- Support H.265/H.264 video formats
- Support audio over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coax cable
| Model | XVR-104G2 | XVR-108G2 |
| Video/Audio Input | ||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC |
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | 4-ch(only IP up to 8ch), each channel up to 4MP |
| Support AHD input: | Support AHD input: | |
| 5MP@20fps(The first channel) | 5MP@12fps | |
| 4MP@30fps(The first channel) | 4MP@15fps | |
| 5MP@12fps | 1080P@30fps | |
| 4MP@15fps | 720P@30fps | |
| 1080P@30fps | Support TVI input: | |
| 720P@60fps | 5MP@12fps | |
| Supported Analog | Support TVI input: | 4MP@15fps |
| Camera Types | 5MP@20fps(The first channel) | 1080P@30fps |
| 4MP@30fps(The first channel) | 720P@30fps | |
| 5MP@12fps | Support CVI input: | |
| 4MP@15fps | 4MP@15fps | |
| 1080P@30fps | 1080P@30fps | |
| 720P@60fps | 720P@30fps | |
| Support CVI input: | Support CVBS input | |
| 5MP@20fps(The first channel) |
| 4MP@30fps(The first channel) 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input | ||||
| Audio Input | 1-ch, RCA | 1-ch, RCA | ||
| Two-way Audio | 1-ch, RCA | 1-ch, RCA | ||
| Network | ||||
| Incoming Bandwidth | 40Mbps (Up to 48Mbps after all analog channel conversion) | |||
| Outgoing Bandwidth | 60Mbps | |||
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP | |||
| Video/Audio Output | ||||
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| HDMI Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| Audio Output | 1-ch, RCA | |||
| Synchronous Playback | 4-ch | 8-ch | ||
| Encoding | ||||
| Recording Resolution | 5MP Lite/4MPLite/1080P/720P/CIF | 5MP Lite/4MPLite /1080P/720P/CIF | ||
| Recording Frame Rate | Main stream: | Sub stream: | Main stream: | Sub stream: |
| 5MP Lite@12fps | D1@12fps | 5MP Lite@6fps | D1@6fps | |
| 4MP Lite@15fps | D1@15fps | 4MP Lite@8fps | D1@8fps | |
| 2MP@15fps | D1@15fps | 2MP Lite@15fps | D1@15fps | |
| 2MP@8fps | D1@8fps | |||
| 720P@30fps | D1@30fps | 720P@15fps | D1@15fps | |
| HardDisk | ||||
| SATA | 1SATA interface | |||
| Capacity | Upto 6TB for each HDD | |||
| External Interface | ||||
| Network Interface | 1RJ45 10M/100Mself-adaptive Ethernet Interface | |||
| USB Interface | Rear panel:2 x USB2.0 | |||
| General | ||||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | |||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||
| Dimensions(W×D×H) | 260mm × 243mm × 46mm (10.2" × 9.6" × 1.8") | |||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||
