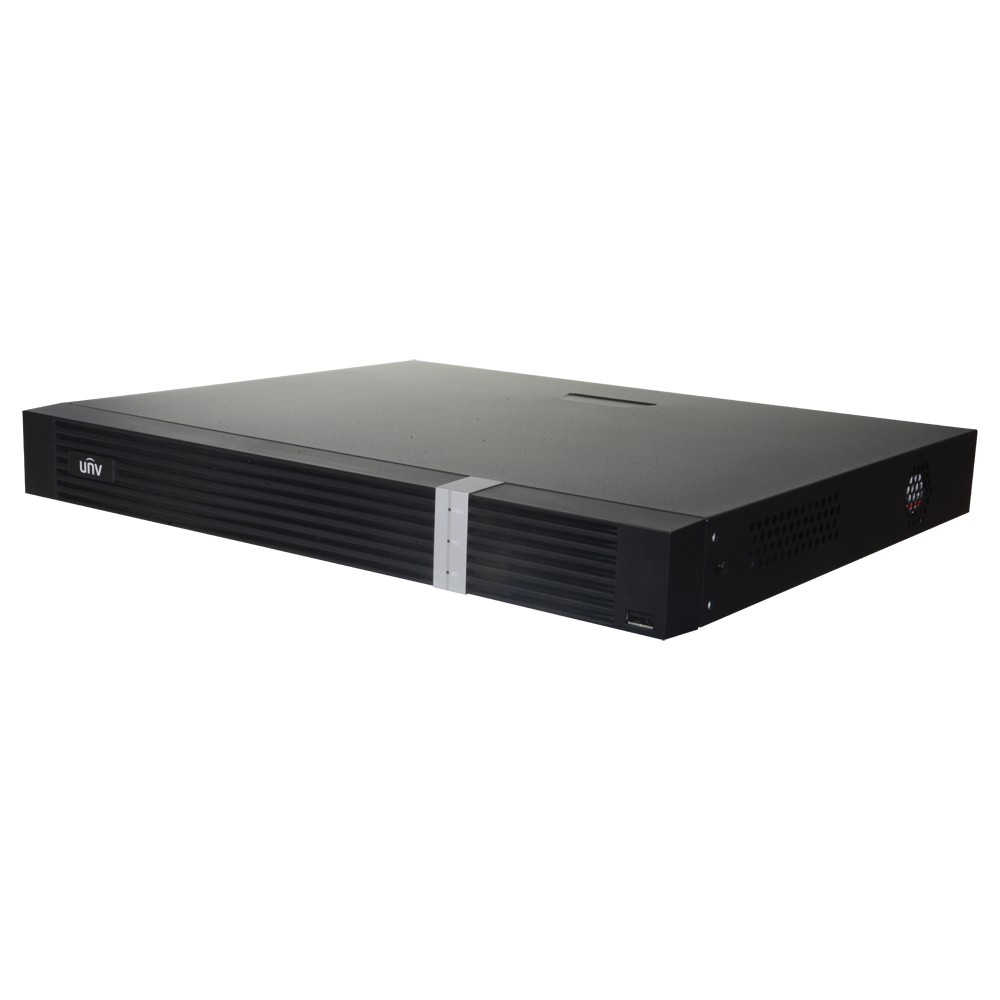

UNV 2 Hard Disks 16-Channel 5MP TVI CVI AHD H.265 Hybrid AI Network Video Recorder, Audio over Coax, FR
Features:
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- Support audio over coaxial cable
- 16-channel BNC input
- Up to 8MP resolution for recording
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
- Support 1-ch face recognition with analog camera or third-part IPC
- Support 4-ch face recognition with UNV face capture IPC
- Up to 16 face libraries, total capacity of 100000 face images
Model | XVR302-16Q-IF | |
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 8-ch (only IP up to 24ch), each channel up to 4K | |
Supported Analog Camera Types | Support AHD input: 8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@30fps (channel1-channel4) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@20fps (channel1-channel4) 1080P@30fps 720P@60fps Support CVI input: | |
8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input | ||
| Audio Input | 1-ch, RCA | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 72 Mbps | |
| Outgoing Bandwidth | 80 Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| CVBS Output | 1-ch, BNC | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 4K(3840X2160)/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Encoding | ||
| Recording Frame Rate | Main stream: 8MP Lite@8fps(channel1-channel4） 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1-channel4) 2MP@15fps 720P@30fps Sub stream: D1@30fps (Max) | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF | |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 6TB for each HDD | |
| External Interface | ||
| Network Interface | 1-RJ45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel：1 x USB3.0, Front panel：1xUSB2.0 | |
| Serial Interface | 1 x RS485 | |
| Alarm In | 4 | |
| Alarm Out | 1 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 12 W (without HDD) | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions(W×D×H) | 380mm ×318mm× 53.5mm (14.96" × 12.51"×2.1") | |
| Weight (without HDD) | ≤2.0 Kg (4.4lb) | |
