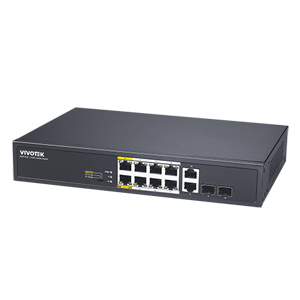

The AW-FGT-100D-120 quipped with DIP switch provides EX mode, ST VLAN, and ST mode. Especially designed for IP Surveillance applications, the camera provides standard 802.3af/at PoE functions in ST mode, while EX mode transmits data & power on one single cable up to 250 meters via EX ports for long-reach PoE IP cameras. The Commercial series adds an extra 20% range of input voltage tolerance(280VAC 4hrs, 300VAC 1 min), lightning surge protection of AC power & PoE surge protection to prevent the damage caused by outside unstable AC power, lightning surge, and power spikes. These unique features reduce costs associated with the replacement of damaged units.
Features:
- 15.4W/30W 802.3af/802.3at Compliant
- 6KV PoE Surge Protection each Port
- 4KV AC Surge Protection
- 20% Range of Input Voltage Tolerance (280VAC 4hrs, 300VAC 1 min)
- Circuit Protection Prevents Power Interference between Ports
- Detects PoE PD (Power Device) Automatically
Networking Specifications
| 10/100Mbps RJ45 PoE Port | 8 |
| Gigabit RJ45/SFP Combo Ports | 2 |
| EX Mode PoE Ports (250M@10Mbps) | 2 |
Ethernet Performance
| Switching Capacity | 5.6 Gbps |
| Mac Table | 4 K |
| Jumbo Frame | 1,536 Bytes |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
Power Specifications
| Power Input Voltage | 100VAC ~ 240VAC |
| Max. PoE Output Power | Per Port 54VDC, Max. 30W |
| Total PoE Power Budget | 115W |
| Power Consumption | 120W |
| IEEE 802.3af/at | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Supported |
| Surge Protection/Each PoE Port | 6KV |
| Surge Protection for AC Power | 4KV |
General
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Dimensions | 270 (L) x 181 (W) x 44 (H) mm |
| Weight | 1.54 kg |
| Warranty | 24 months |
Certifications
| EMC | CE, FCC, VCCI |
| Safety | LVD EN62368-1 |
