The Entrust-LG UPS Series is a compact line-interactive mini tower UPS, perfect for small to medium-load applications. Its versatile form factor integrates seamlessly into any environment, providing reliable protection against power fluctuations and outages.

APPLICATIONS:

• Gaming Consoles and Computers
• Desktop Workstations
• Network Equipment
• VoIP Communications
• Telephone Systems
• External Computer Accessories
• Security Cameras and DVRs

Protects Against Spikes, Surges, Brownouts, and Blackouts:

• Automatic Voltage Regulation (AVR)
• Four surge and battery-protected outlets (550/850VA models)
• Four surge-only outlets for protection of non-critical accessories (550/850VA models)
• Five surge and battery-protected outlets (1000/1350VA models)
• Five surge-only outlets for protection of non-critical accessories (1000/1350VA models)
• Four NEMA 5-15/20R surge and battery protected outlets (2000VA model)
• Four NEMA 5-15/20R surge-only outlets for protection of non-critical accessories (2000VA model)
• 6-foot power cord with right-angle NEMA 5-15P (550VA/850VA/1000VA/1350VA models)
• 6-foot power cord with right-angle NEMA 5-20P (2000VA model)
• Input circuit breaker protection

Feature-rich Design:

• Compact mini-tower case design
• LCD Front Panel Display
• USB Charging Ports (1-Type A/1-Type C) on 1000/1350/1500/2000VA models)
• USB communications
• Coax Surge protection-port
• RJ45 Ethernet surge protection port (1Gbit)
• Hot-swappable batteries
• Front panel battery access
• Tool-less battery replacement design
• 3-year warranty (electronics) 2-year warranty (batteries)
• RoHS 2 compliant
• Energy Star 2.0 certified
• Department of Energy 10CFR Part 430 compliant (550/850/1000/1350/1500VA models)
• Transformer-friendly receptacles
• DC Startup capability
• Built-in self-diagnostics testing
• Audio & Visual alarms
• Alarm silencer button
• Scroll Button for LCD Display and UPS Status

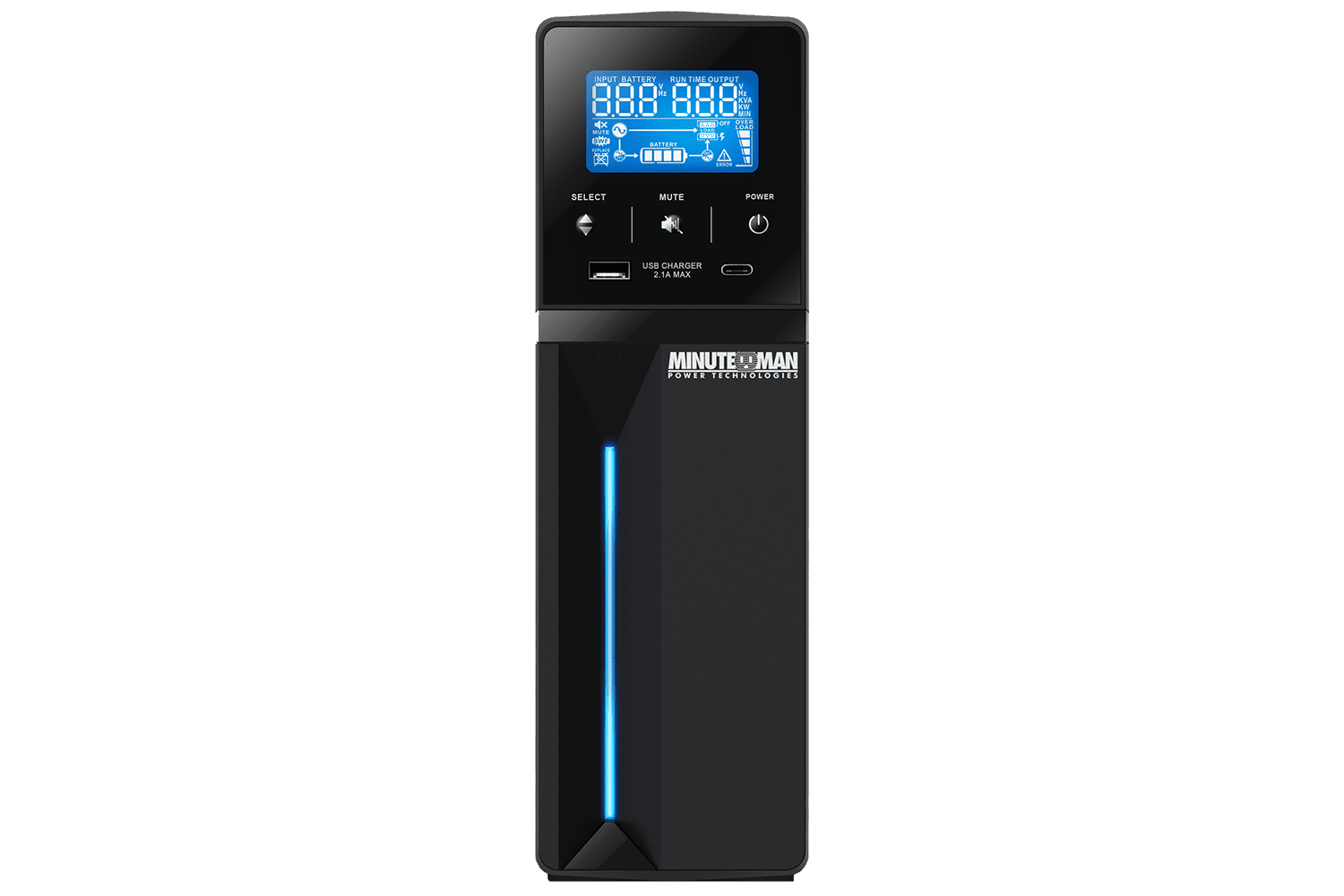

Front Panel Display and Controls:

1. Realtime Display (Input / Output)
2. AC Mode Icon
3. On Battery Icon
4. “Error” Icon
5. Replace Battery Icon
6. Site Wiring Fault (SWF) Icon
7. Load Shedding Status
8. Load Status
9. Battery Capacity
10. “POWER” – On/Off/Test Button
11. “SELECT” – Menu Scroll Button
12. “MUTE” – Alarm Silencer Button

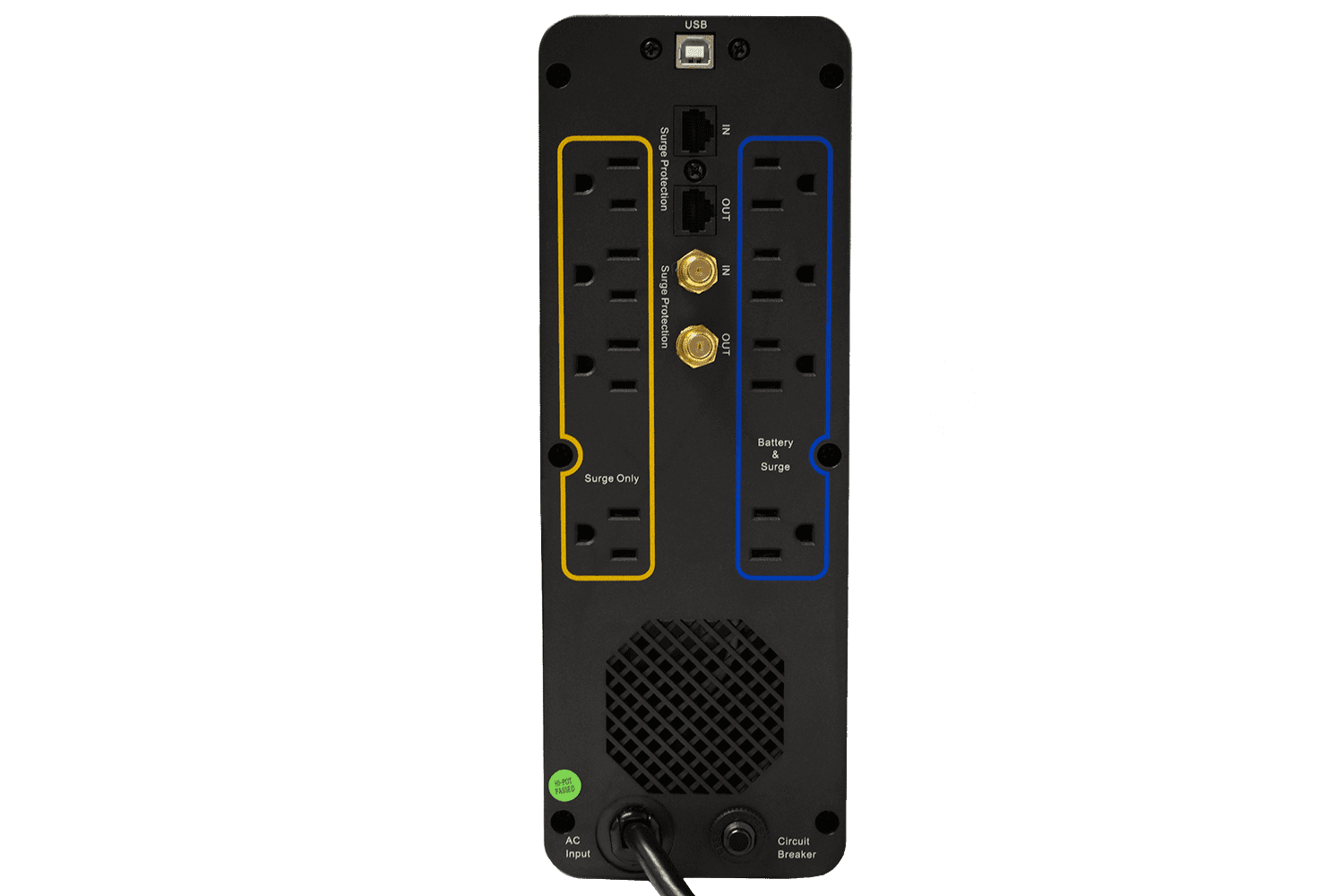

UPS ­Back Panel Connections:

1. Battery & Surge Outlets: Connect critical equipment such a PCs, Gaming Consoles, and Routers to the “Battery & Surge” outlets on the UPS to maintain power during power outages.
2. Load Shedding Outlets: Can be shut off via front panel or through SentryHD
3. Surge Only Outlets: For all other non-critical devices use the “Surge-Only” outlets.
4. USB Communications Port: The Entrust-LG Series is compatible with Minuteman’s SentryHD monitoring and management software which is available as a free download at www. minutemanups.com/minuteman-software-download-center/. Use the included USB communications cable to connect the UPS to your computer and follow the installation instructions included with the SentryHD download.
5. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS. and
6. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS.
7. Resettable Input Circuit Breaker: Allows the UPS to be reset in the event of an overload. (First remove one or more connected devices from the UPS to reduce the load before pressing the circuit breaker).
8. Input Power Cord: Utilizes a NEMA 5-15P for connecting to utility source. (NOTE: The ETR2000LG uses a NEMA 5-20P input plug).

Other Features:

• Efficient Automatic Voltage Regulation (AVR) Hardware
  Regulates output voltage for protection against spikes, surges, brownouts, and blackouts
• Compact form factor ideal for tight installs
• Protect all of your devices
  8-10 power battery backup and surge-only outlets ensure space for all pieces of the system
• Tool-less Battery Access
  Setup and maintenance made easy with tool-less battery panel
• Efficient, Responsible Power
  Energy Star 2.0, DoE 10CFR Part 430, and RoHS 2 Compliant
• Total Control of Your Power
  Free download of Minuteman SentryHD management software connects via USB and provides total monitoring and management capability
• Independent Battery Bypass
  Provides voltage regulation with surge and spike protection, even when batteries are weak or dead
• Unmatched Peace of Mind
  3-year limited warranty (electronics), 2-year warranty (batteries), and Minuteman Platinum Protection Plan

Software:

Get ultimate control over your power with SentryHD

In today’s complex world of data, networks, and software, control and management of applications is vital, especially when it comes to the power that is supplied to these devices.
