The Minuteman® Endeavor 5-10kVA Series delivers uninterrupted power for vital IT, telecom, and security setups. With a clear LCD Display for instant updates on AC, battery, and UPS status, this UPS is generator-compatible, versatile, and ensures maximum uptime. Offering pure sine wave output and adaptability for critical applications, it’s the ultimate choice for reliability and efficiency.

The Endeavor 5-10kVA is a high-density, double-conversion online UPS series providing unparalleled power protection for critical IT and business infrastructure. With a unique multi-color touchscreen panel for easy management and monitoring, this UPS offers a wide range of installation options and is ideal for servers, networks, industrial applications. The Endeavor 5-10kVA has advanced features like predictive battery replacement and hot-swappable batteries, it’s designed for IT professionals and administrators needing reliable power solutions.

New Advanced Features:

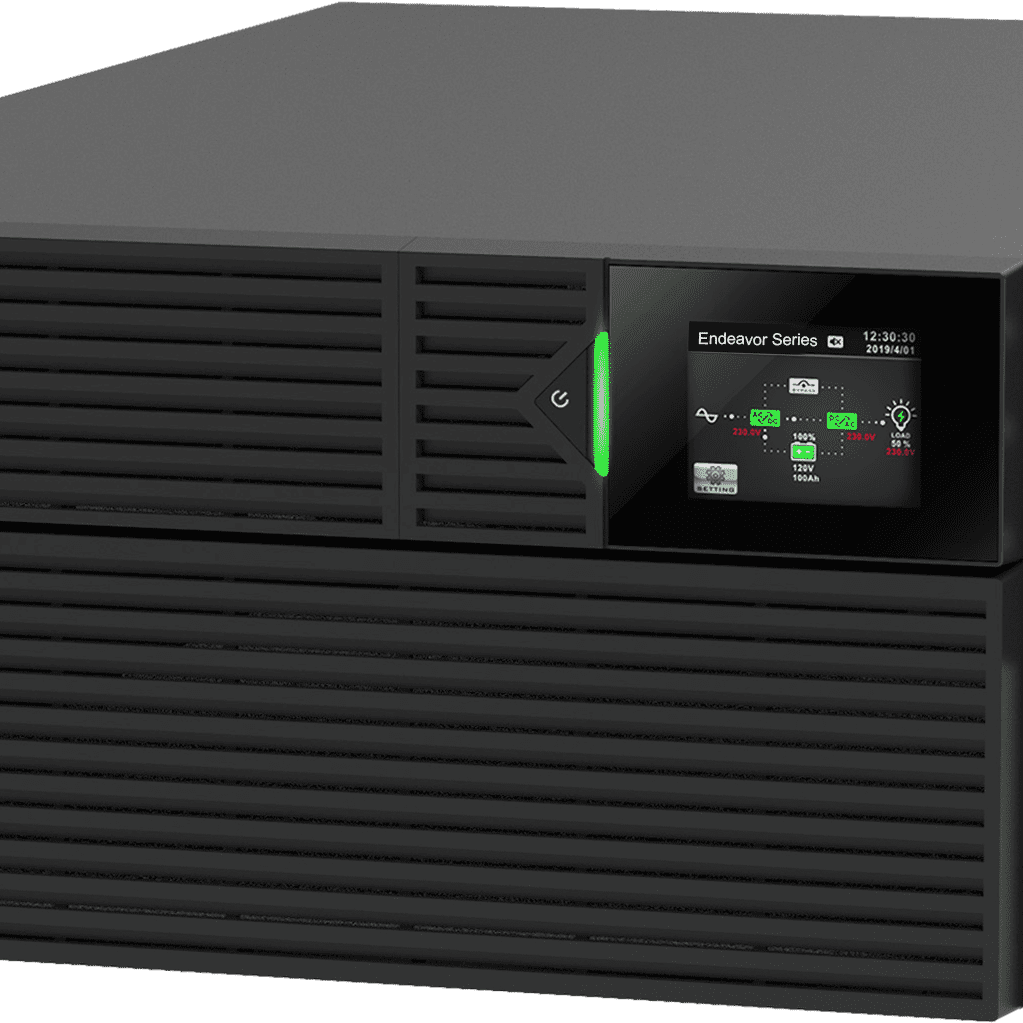

• Multi-color, touchscreen LCD panel for easy UPS configuration and monitoring
• Compact design: 4U for 5/6kVA, 5U for 8/10kVA (208VAC models)
• High-frequency design for efficient performance
• Space-saving solution for higher density installations
• Predictive Battery Replacement feature with early warning alarms
• Tool-less, front-panel battery connection and replacement
• Hot-swappable batteries for continuous power
• Independent battery chargers for unlimited runtime

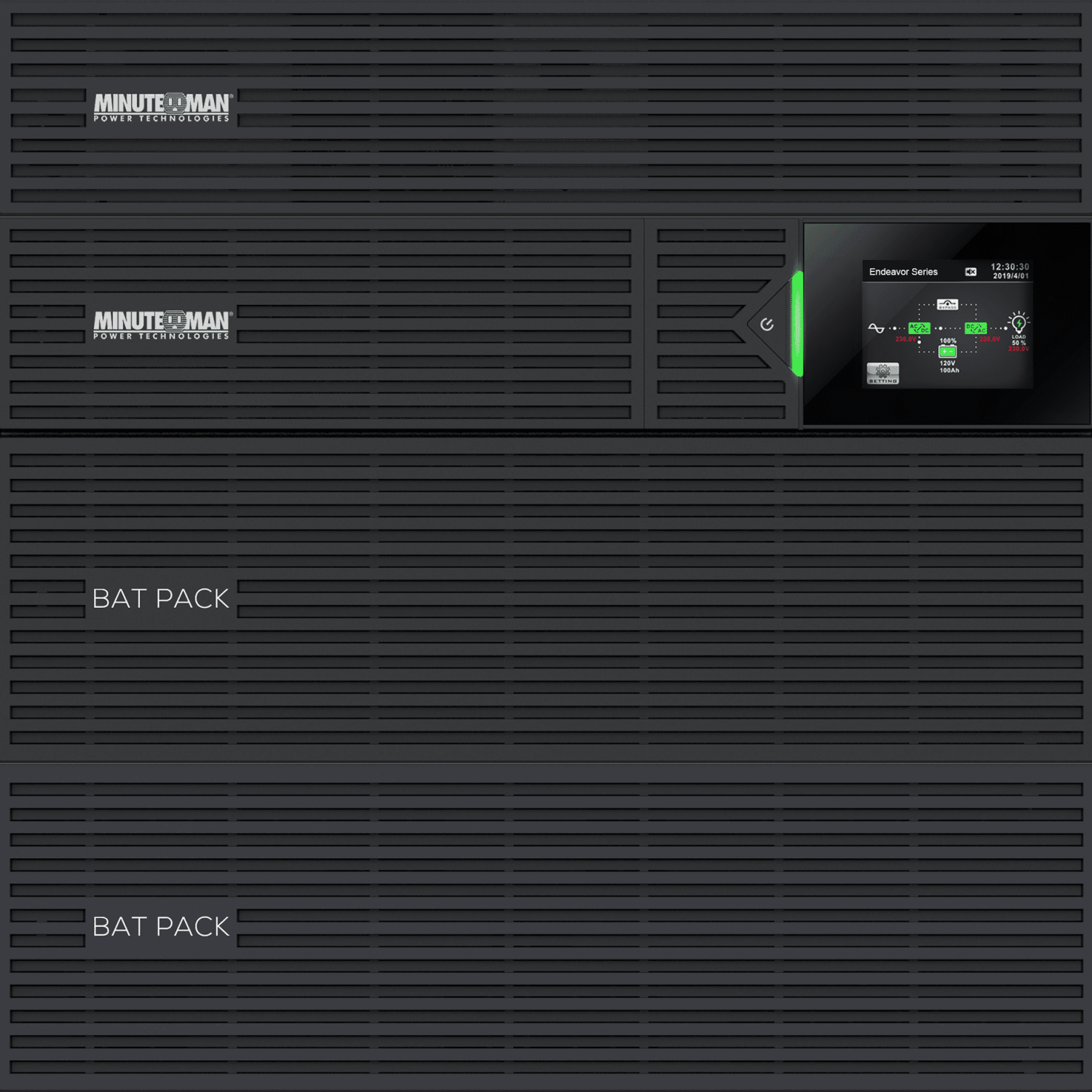

• Automatic recognition of additional battery packs for recalculating runtimes
• Easy connect transformer module with NEMA input plug
• Wide range of 120V and 208V NEMA output receptacles available in standard configurations
• Smart ECO Mode feature allows for increased energy savings

Key Features & User Benefits:

• True double-conversion online technology: Provides maximum protection for critical equipment.
• Digital Signal Processor (DSP) design: Enhances reliability by reducing the number of UPS components, ensuring robust performance.
• High power factor (0.9pf): Increases real power capacity for each model, delivering more reliable power to connected devices.
• 120/208V output models with standard receptacles: Offers flexibility to support multiple voltages used on connected loads.
• Multi-function, color LCD touchscreen display: Enables full UPS configuration and real-time monitoring of input/output power and load condition for user convenience.
• User-configurable voltages (208V as default): Greater flexibility in tailoring the UPS to suit diverse environments.
• Automatic internal bypass: Activates Bypass Mode and alerts users in the event of hardware or battery faults, ensuring continuous power.
• Independent Battery Bypass (IBB): Maintains constant 120/208V output even with dead batteries when utility power is available.
• Smart fan control: Maximizes UPS cooling efficiency with variable-speed fan control for optimal performance.
• Cold start function: Start the UPS without available utility power, ensuring continuous operation.
• Available option slot: Facilitates the use of network or programmable relay cards for enhanced functionalities.

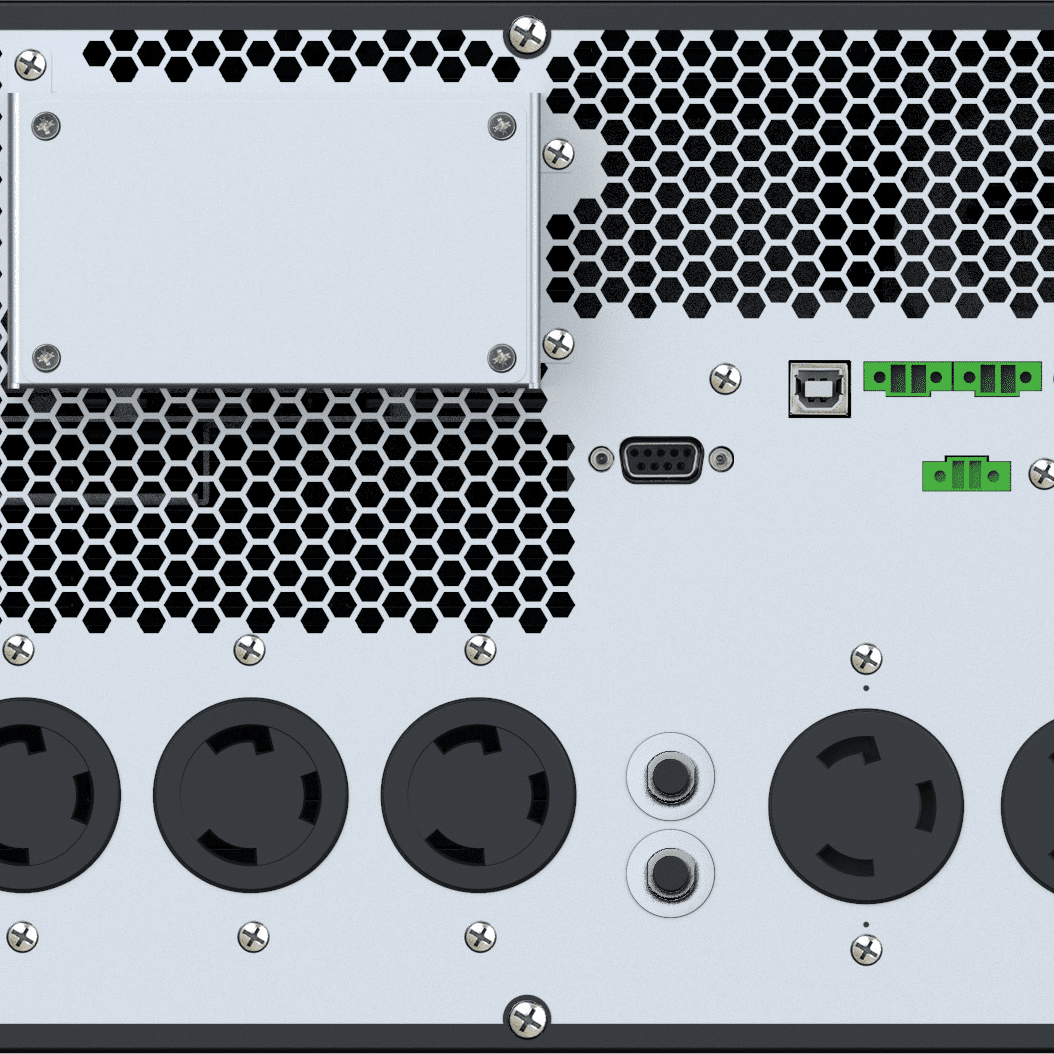

• Simultaneous serial communication options (USB and RS-232): Offers flexibility in managing and monitoring the UPS system simultaneously.
• REPO Port: Supports immediate shutdown of output power in emergency situations for added safety.
• 3-year standard product warranty: Reduces ownership costs and assures greater reliability.
• Optional 5-year warranty options available: Provides peace of mind with extended guarantees for up to 5 years.
• Platinum Protection Plan®: Insures connected equipment for up to $250,000, ensuring comprehensive protection.
• RoHS2 and Energy Star 2.0 compliant: Environmentally-friendly design reduces operating costs and ensures energy efficiency.
