The Minuteman Endeavor 5-10kVA Series delivers uninterrupted power for vital IT, telecom, and security setups. With a clear LCD Display for instant updates on AC, battery, and UPS status, this UPS is generator-compatible, versatile, and ensures maximum uptime. Offering pure sine wave output and adaptability for critical applications, it’s the ultimate choice for reliability and efficiency.

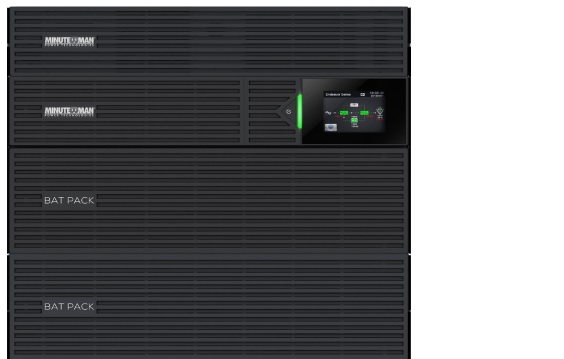

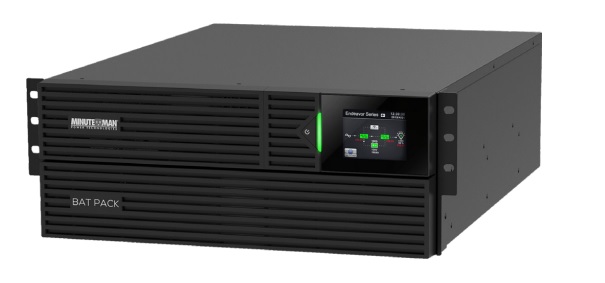

The Endeavor 5-10kVA is a high-density, double-conversion online UPS series providing unparalleled power protection for critical IT and business infrastructure. With a unique multi-color touchscreen panel for easy management and monitoring, this UPS offers a wide range of installation options and is ideal for servers, networks, industrial applications. The Endeavor 5-10kVA has advanced features like predictive battery replacement and hot-swappable batteries, it’s designed for IT professionals and administrators needing reliable power solutions.


Features:

• Multi-color, touchscreen LCD panel for easy UPS configuration and monitoring
• Compact design: 4U for 5/6kVA, 5U for 8/10kVA (208VAC models)
• High-frequency design for efficient performance
• Space-saving solution for higher density installations
• Predictive Battery Replacement feature with early warning alarms
• Tool-less, front-panel battery connection and replacement
• Hot-swappable batteries for continuous power
• Independent battery chargers for unlimited runtime
• Automatic recognition of additional battery packs for recalculating runtimes
• Easy connect transformer module with NEMA input plug
• Wide range of 120V and 208V NEMA output receptacles available in standard configurations
• Smart ECO Mode feature allows for increased energy savings

Key Features & User Benefits:

• True double-conversion online technology: Provides maximum protection for critical equipment.
• Digital Signal Processor (DSP) design: Enhances reliability by reducing the number of UPS components, ensuring robust performance.
• High power factor (0.9pf): Increases real power capacity for each model, delivering more reliable power to connected devices.
• 120/208V output models with standard receptacles: Offers flexibility to support multiple voltages used on connected loads.
• Multi-function, color LCD touchscreen display: Enables full UPS configuration and real-time monitoring of input/output power and load condition for user convenience.
• User-configurable voltages (208V as default): Greater flexibility in tailoring the UPS to suit diverse environments.
• Automatic internal bypass: Activates Bypass Mode and alerts users in the event of hardware or battery faults, ensuring continuous power.
• Independent Battery Bypass (IBB): Maintains constant 120/208V output even with dead batteries when utility power is available.
• Smart fan control: Maximizes UPS cooling efficiency with variable-speed fan control for optimal performance.
• Cold start function: Start the UPS without available utility power, ensuring continuous operation.
• Available option slot: Facilitates the use of network or programmable relay cards for enhanced functionalities.
• Simultaneous serial communication options (USB and RS-232): Offers flexibility in managing and monitoring the UPS system simultaneously.
• REPO Port: Supports immediate shutdown of output power in emergency situations for added safety.
• 3-year standard product warranty: Reduces ownership costs and assures greater reliability.
• Optional 5-year warranty options available: Provides peace of mind with extended guarantees for up to 5 years.
• Platinum Protection Plan®: Insures connected equipment for up to $250,000, ensuring comprehensive protection.
• RoHS2 and Energy Star 2.0 compliant: Environmentally-friendly design reduces operating costs and ensures energy efficiency.

LCD Status Panel:

Multi-colored Touchscreen LCD Display Panel offers all these features and more:

• User-friendly UPS configuration and status display
• Clear and descriptive UPS status information in plain text
• Convenient display of UPS Serial Number and Model Number
• Display of Battery Module part number and FW number for easy identification
• Front screen adjustment for input voltage transfer points and sensitivity
• Output voltage adjustment accessible via the front screen
• Serial number reporting through software and SNMP card
• Easily set Battery Replacement date and manage External Battery Packs from the front screen
• Access Event logs (Faults & Warnings) directly via the front screen
• Control Load Shedding function and reset settings to factory defaults via the front panel
• Display load capacity per output bank and total load for quick assessment
• Check load bank state and reset Battery Aging Coefficient using the front panel controls

Electrical Characteristics:

Digital Signal Processor:

• Reduced number of components in the UPS also reduces the potential for defects or malfunctions
• Digital Signal Processor, (DSP), combines many components into a single processor, increasing the reliability of the UPS and reducing any downtime potential
• Helps ensure stable, quality power and long life span

High Output Power Factor:

• All models feature an output power factor of 0.9 which increases the Watt capacity of the units
• Larger capacities in a smaller UPS VA rating can reduce the overall cost of the UPS solution for a specific load requirement

Output T.H.D.

• Endeavor units maintain an output AC signal within 2% of a true sine wave pattern (Total Harmonic Distortion)
• Prevents equipment damage from internal heat build up on sensitive connected equipment

Overload Capacity:

• Endeavor UPSs are designed to support such situations with the ability to absorb up to 150% of its rated load for up to 30 seconds
• Allows the UPS to be sized for maximum capacity without worry of overload and shutdown, providing cost-savings

Advanced Battery Features:

• Independent Battery Bypass allows the Endeavor UPS to operate in Normal Mode, even with weak, dead, or defective batteries
• Endeavor UPSs monitor internal battery status at regular intervals; If the UPS detects weak or bad batteries, it will engage an audio alarm and also any preconfigured electronic notifications
• Normal AC output will be maintained as long as utility power is supplied within the UPS’ nominal input range
• The UPS will have a constant 120/208/240V signal and protection from any dangerous spikes or surges while allowing time to replace batteries without having to shut down connected equipment

Optional 240V Output:

• Endeavor units can be configured for use with 220, 230 and 240V input and output.
• For information about additional configuration options, please contact your Minuteman representative.

Communication Features:

Bundled with SentryHD software

• Minuteman SentryHD auto-shutdown and monitoring software is available for free download.

SNMP-compatible (SNMP-NV6 card)

• All models include a standard internal communication slot which is compatible with all current Minuteman SNMP card options
• Adding an SNMP-NV6 card allows remote management and control over any IP-based network
• The Option card slot and serial communications port can be operated simultaneously, allowing SNMP to be used in conjunction with Minuteman SentryHD software
